EZ-ACCESS PATHWAY - U-Shaped Closure

PATHWAY
®
Aluminum Wheelchair Ramp Kit Assembly Manual Page 33 of 40
1
6.3. U-SHAPED CLOSURE
6.3.1. Closures for a U-shaped configuration are created using the same method described in
the preceding section.
6.3.2. Install the upper rail, curb, and lower rail as described in the ‘HANDRAILS’ section.
6.3.3. FIG. 6.13 shows the completed assembly.

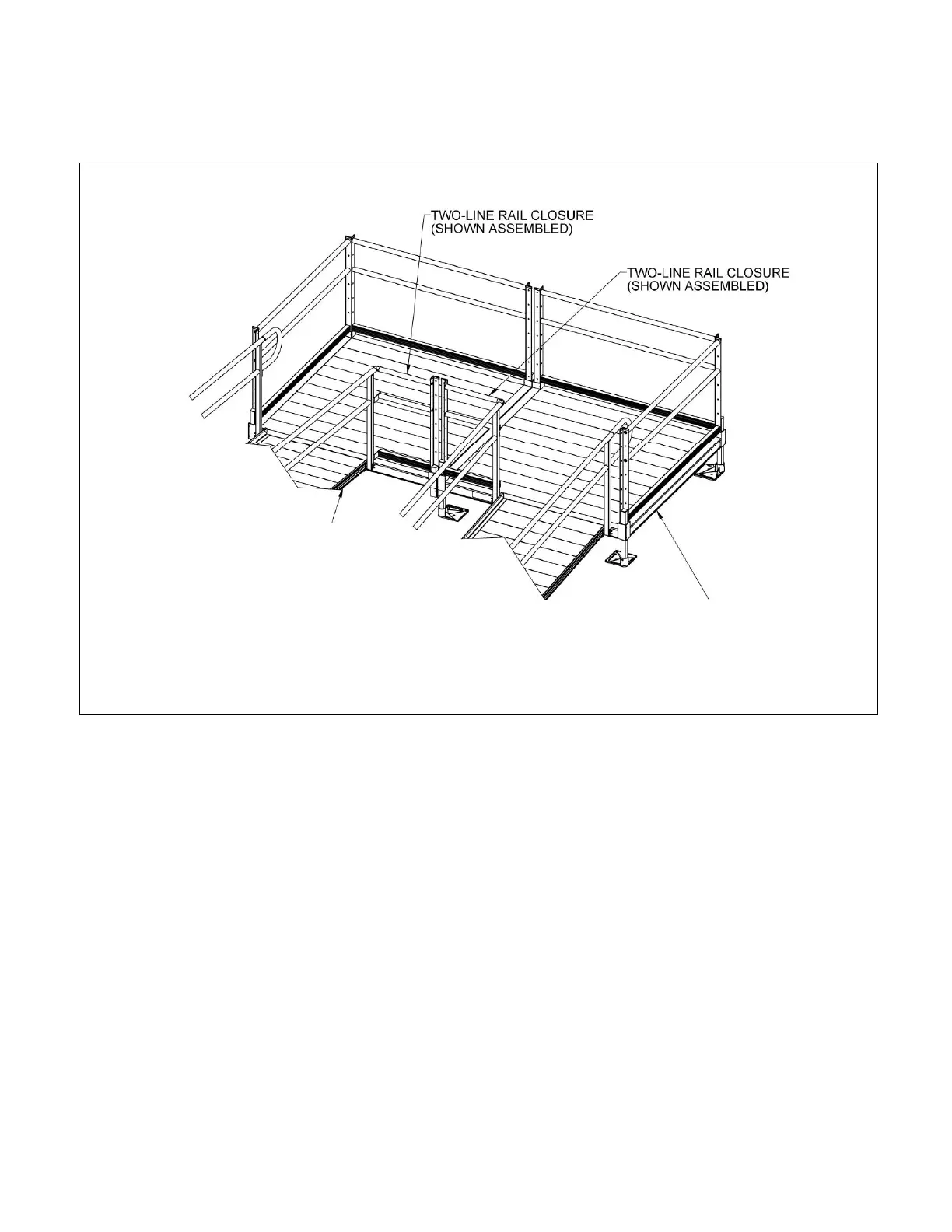

FIG. 6.13
RAMPS ASSEMBLED IN U-SHAPED
CONFIGURATION
PLATFORMS ASSEMBLED IN U-SHAPED
CONFIGURATION (5’ X 5’ PLATFORMS SHOWN)
