Aluminum Wheelchair Ramp Kit Assembly Manual Page 17 of 40
1
4.3. ATTACH SUPPORT LEG BRACKETS AND LEGS TO RAMPS
4.3.1.

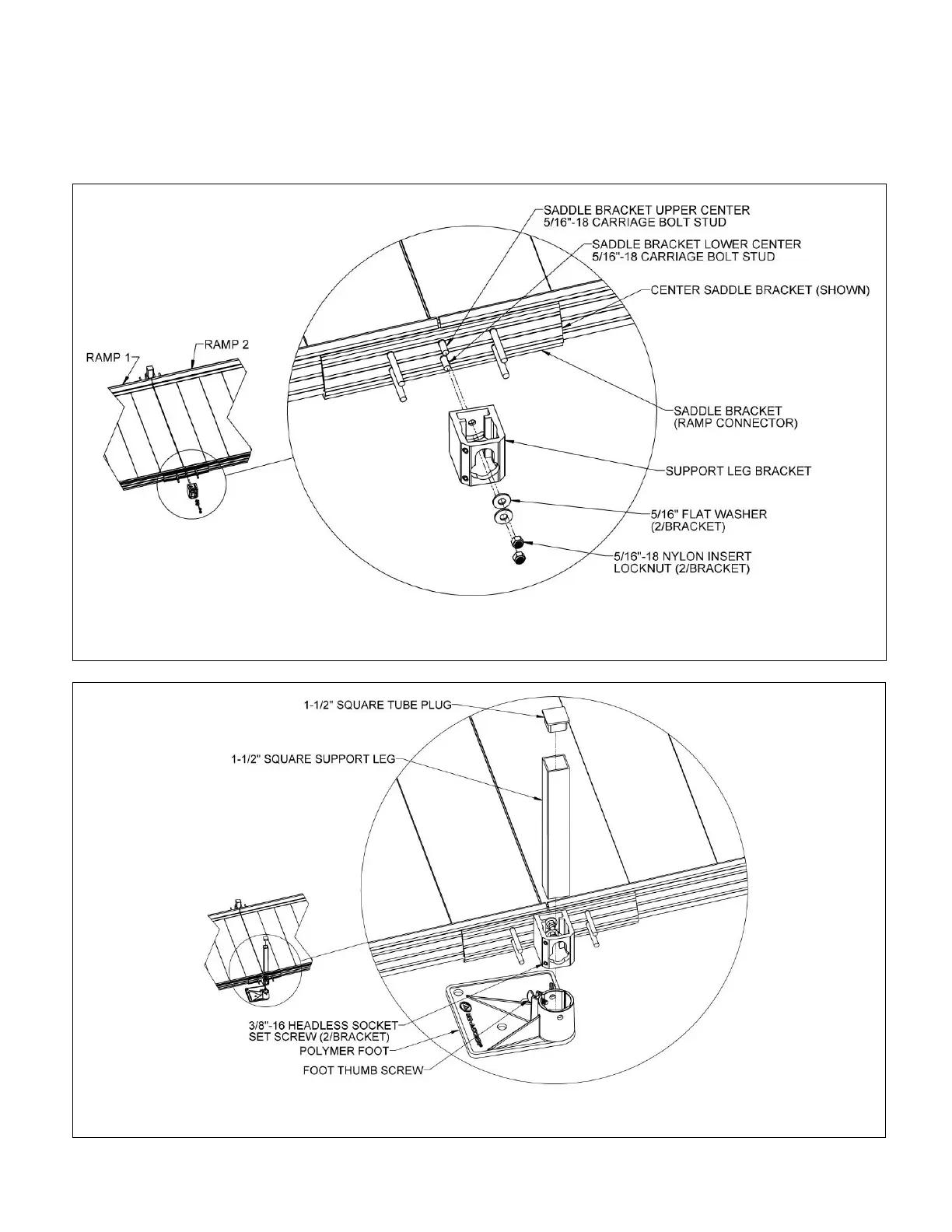

Install the Support Leg Bracket (“bracket”), included with PRRUC, on the center studs of
the Center Saddle Bracket (ramp connector included with PRRUC) with the round hole
on the upper stud and the curved slot over the lower stud (FIG. 4.5).
4.3.2.
Attach the bracket using the provided 5/16” flat washers and 5/16”-18 nylon insert
locknuts onto the studs but do not tighten fully until the bracket has been leveled.
