Note
The only difference between 110V and 220V is within the AC Input breaker
L or N and thus will not affect the wiring configuration.
Note
In case that user wants to install the earth-leakage circuit breaker, EZA
recommend time delay type. The major specification of the circuit breaker
is as following：
Earth-leakage current：100mA, 300mA, 500mA
Time：0.45 second, 1 second, 2 seconds
Recommend model：NV50-SN, Time delay type of Shihin Electric
【Version 2】UL model
Step 1.
Use the screwdriver to remove the cover.

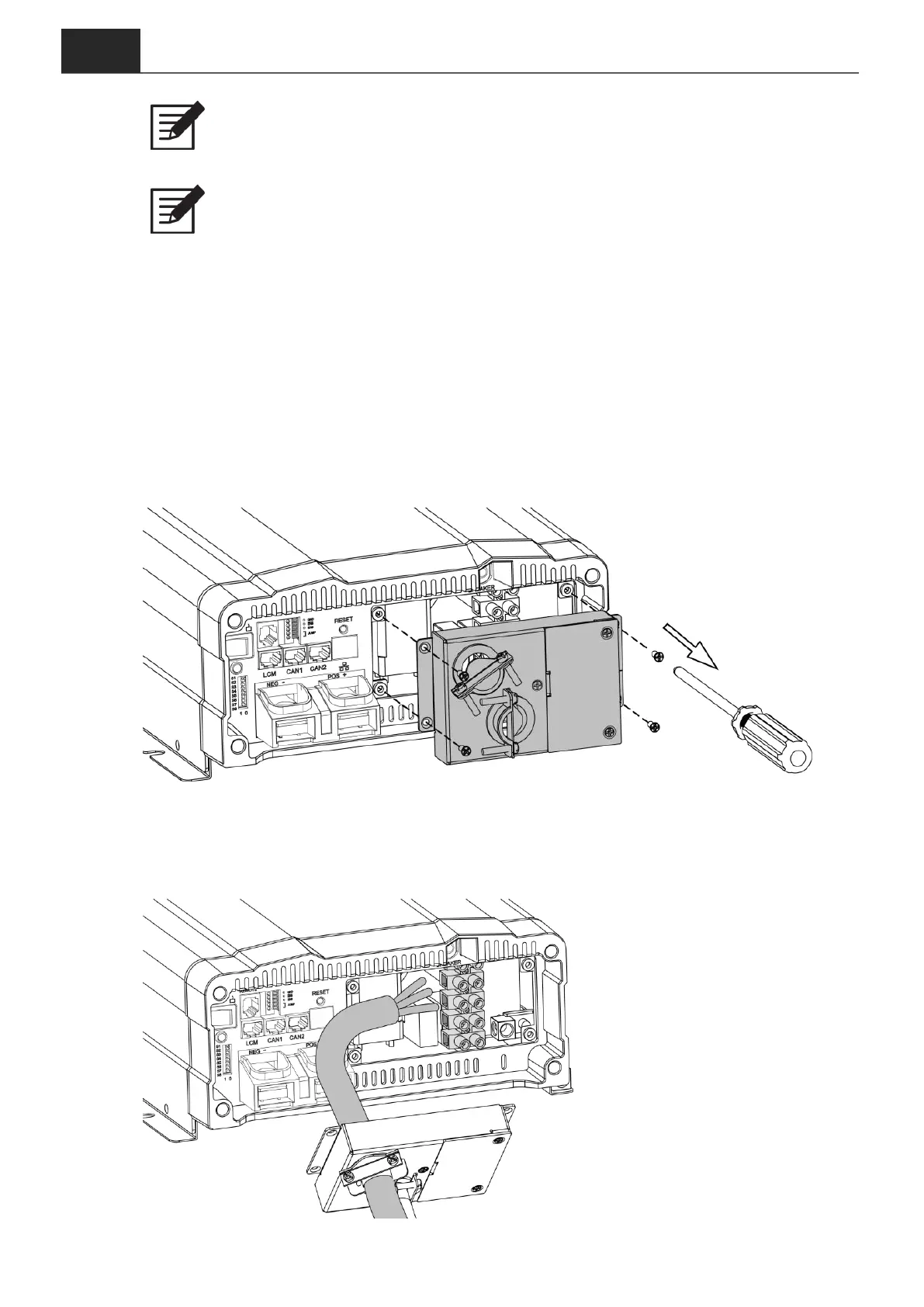

Figure 20. UL model setting
─
Step 1
Step 2.
AC cable pass through the ring. Wire the AC cable on the terminal.
Figure 21. UL model setting
─
Step 2
