When the unit is transferring power from the AC input source, the grounding
condition of the “N” terminal of the AC output will be the same as the condition of the
“N” terminal of the AC input source. If the AC input source is the power supplied from
the utility, the “N” terminal would be a Neutral in the true sense. It will normally be
bonded to the earth ground and will read almost 0 V with respect to the earth ground.
In this case, touching this terminal will not be a shock hazard.
4-2-3. AC output and terminals of the ECB series, you can use both the front wiring
terminal and outlet, as they are connected in parallel.
Type
Number of outlet
Voltage (VAC)
Total Current (A)
GFCI
2
125
20
NEMA
2
125
15
Europe
1
250
16
Australia / New Zealand
1
250
15
U.K.
1
250
13
Wiring Terminal
1
100~250
35
①
UL458
1
120
35
②
Universal
1
100~250
16
① UL458 only support 112 and 124 model.
② Only CE (200-240V Type) and FCC (100-120V Type) standard approve.

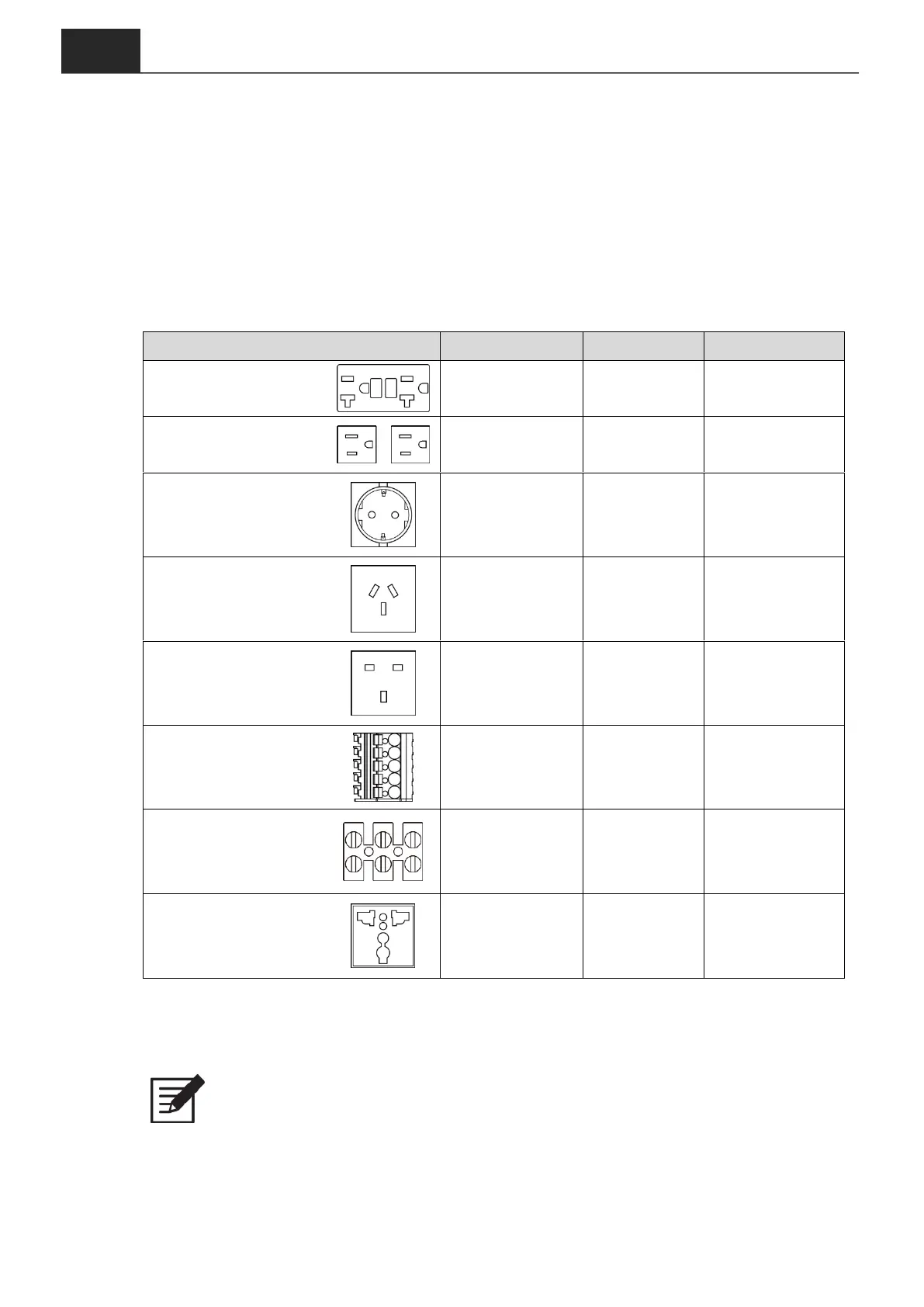

Table 18. AC input socket / Wiring terminal
Note
In case the load current over the outlet rated current, please use the hared
wire terminal next to the outlets.
