EZ3-TouchPLC

Modular

5.3.2 Mounting Instructions (8 and 10 Inch Model)

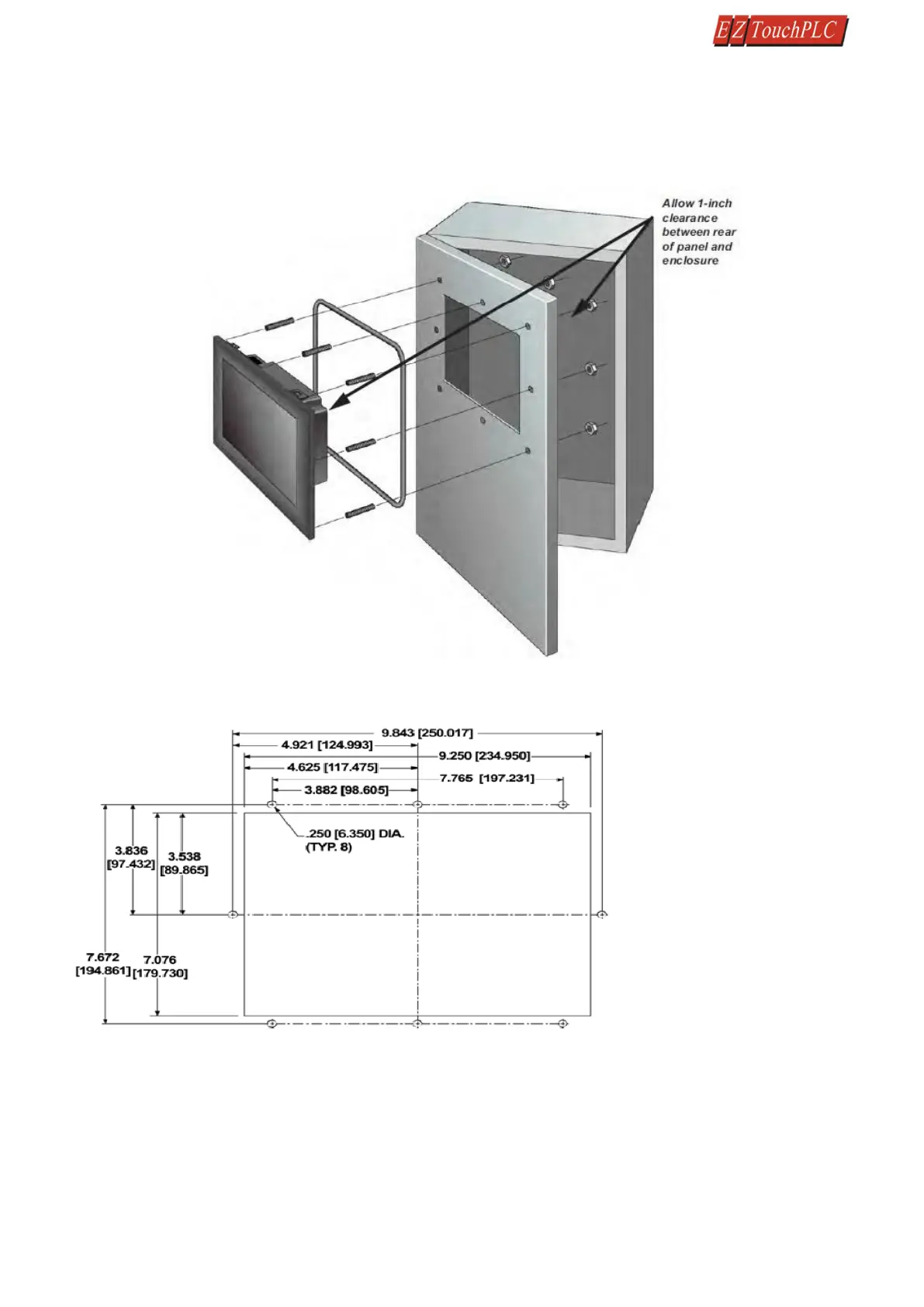

The 8" and 10" EZ3-TouchPLC Modular units are stud mounted. All the necessary mounting hardware is

provided with the unit. Use the 8 studs and 8 nuts with captive washers to secure the unit to the mounting

surface.

Note: Nuts are to be tightened with no more than 1 inch-pound of torque.

T8C (8” Display) Mounting Dimension:
