EZ3-TouchPLC
Modular
Mounting Information
EZ3-TouchPLC 6 Inch and 7 inch model mounting is based on Din Clips.
EZ3-TouchPLC 8 Inch and 10 Inch model mounting is based on Studs Dimension see below in Section
5.3.2.

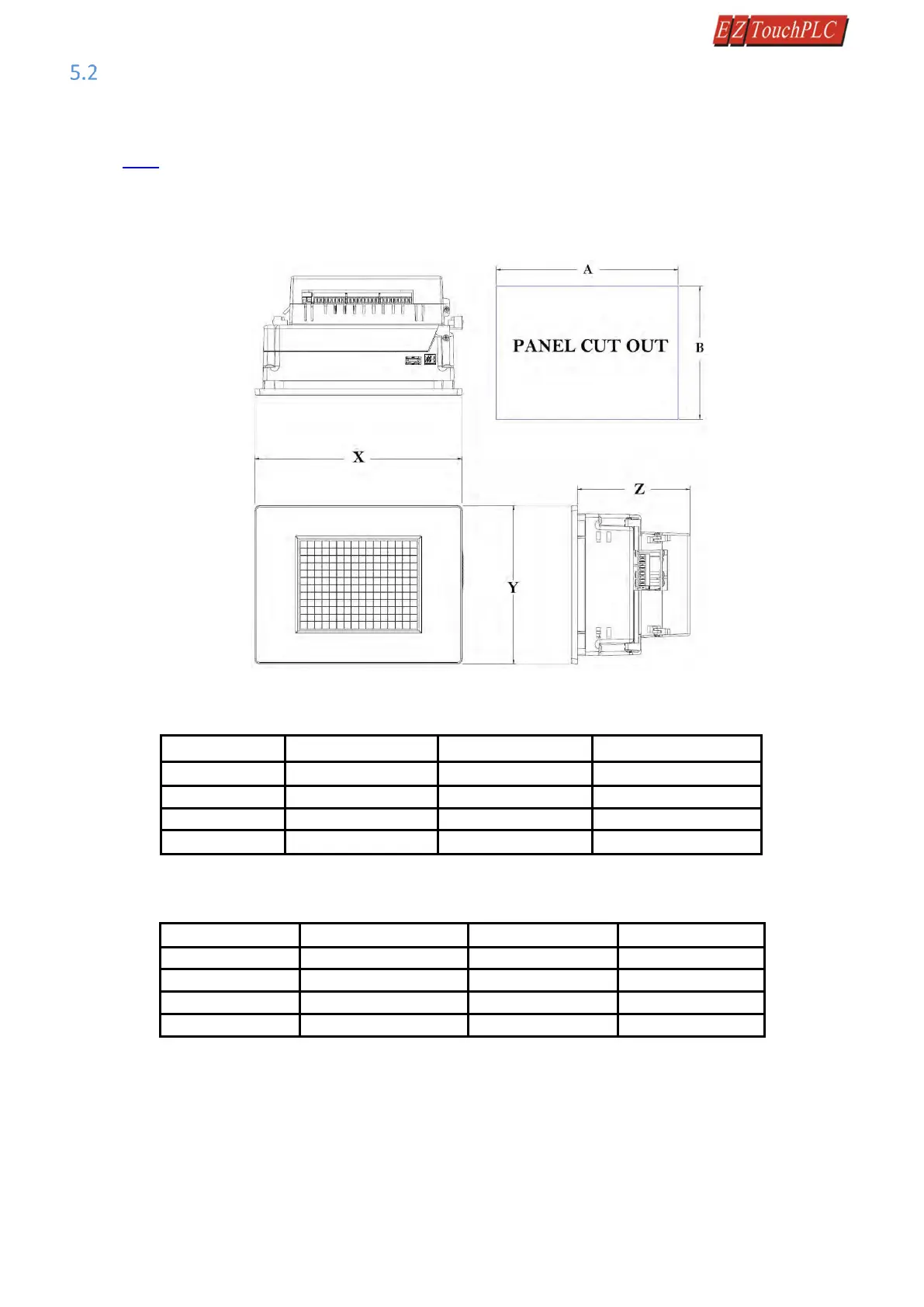

5.2.1 Overall Dimension
Units: inches [millimeters]
EZ3-TouchPLC Modular Panel Dimensions
Unit Type
X
Y
Z
6"
8.05" [204.42mm]
6.15" [156.11mm]
4.37" [110.93mm]
7
8.05" [204.42mm]
6.15" [156.11mm]
4.37" [110.93mm]
8"
10.89" [276.71mm]
8.75" [222.20mm]
4.53" [115.06mm]
10"
13.58" [345.03mm]
10.59" [269.09mm]
4.56" [115.82mm]
Panel Cutout Dimensions
Unit Size
A
B
Depth
6"
7.46" [189.48mm]
5.66" [143.76mm]
5.37" [136.40mm]
7”
7.46" [189.48mm]
5.66" [143.76mm]
5.37" [136.40mm]
8"
9.25" [234.50mm]
7.08" [179.73mm]
5.53" [140.46mm]
10"
11.91" [302.41mm]
8.92" [226.48mm]
5.56" [141.22mm]
