Data Logging Overview
The EZ3-TouchPLC Modular offers a flexible Data Acquisition capability. You can acquire and save the data for one or
more tags defined in the panel. The acquired data along with a time stamp is saved in CSV file format in the USB stick
or the MicroSD card, depending on how the schedule is set.
Schedules determine the way data will be collected. For example, data can be collected every 10 seconds, or simply
at a specific time such as 9 AM, or when a certain event takes place. The user can define one or more schedules as
long as each schedule is unique. (For example, there cannot be two schedules that each collect data every 30 seconds.)
User can also associate a name (up to 8 characters) with each schedule. Each schedule can be used to collect data for
up to 32 tags.
Adding a Schedule

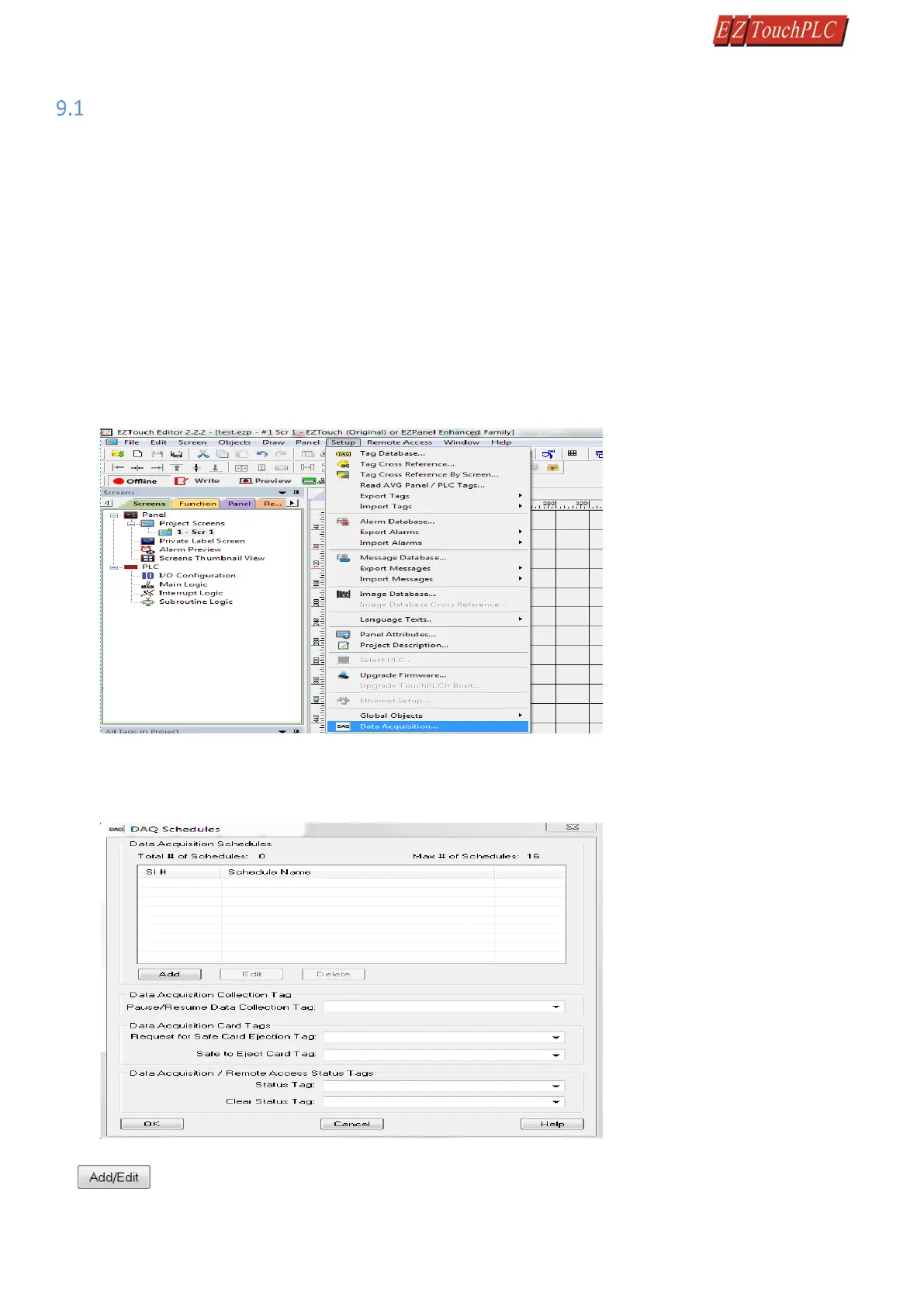

1. Open your project file for the EZ3-TouchPLC Modular using the EZ Series Software.
2. Then click Setup → Data Acquisition to display the DAQ schedule dialog.
3.
The Data Acquisition dialog box will appear. This dialog box allows you to add the new schedules and
edit/delete the existing ones.
4.
Click on Add button to display the ““dd D“A Schedule Details.”
5.
The "Add DAQ Schedule Details" box will appears allowing you create a new schedule for the panel. Schedule
To Next Page
