names can be either be Tag based or a Constant (user defined name).
Note: Tag based file names can be changed on the panel itself at any point.
6.
Select a Schedule Type. (Details on schedule types provided below.)
7.
Under "Select Tags for Data Acquisition," the selection displays all the tags defined in the panel with their
corresponding tag addresses. To select a tag for data acquisition, click on it and then press the >> button. To
deselect the tag for data acquisition, select it again and press the << button. Maximum tags per schedule is 32.
Note: Tags can also be selected or deselected by double-clicking on them.
8.
Click "Add" when finished and then click "Close" to return to the main DAQ Schedules dialog box.
9.
The added schedules will now be listed. Schedules are saved along with the user project.

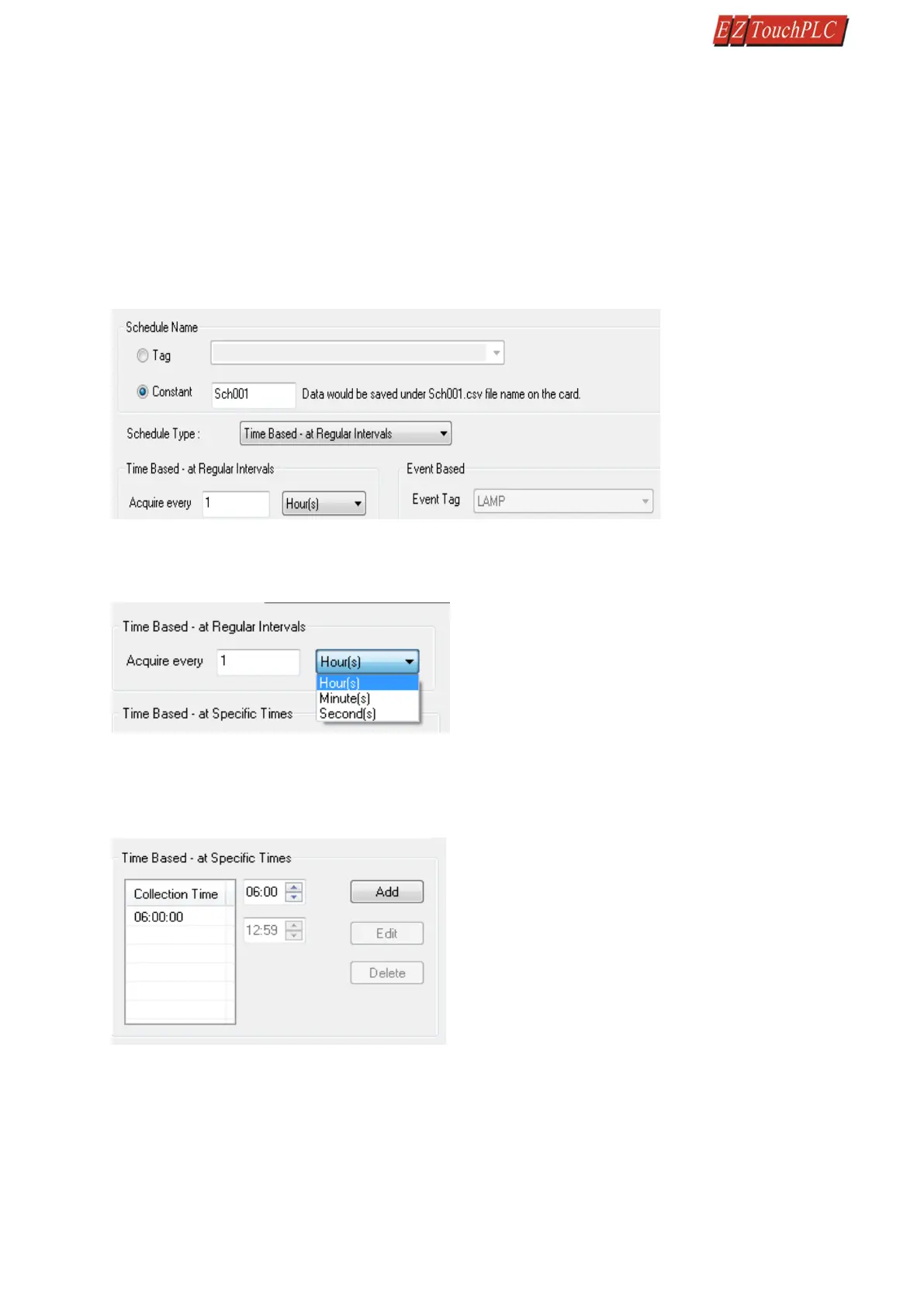

Types of Schedules
1.
Time based – at regular Intervals
Allows you to store the tag value at regular time intervals, anywhere from every 1 second to every 1000 hours.
2.
Time based – at Specifc Times
Allows you to store the value of a group of tags up to 10 specific times. You may always edit / delete a specified
time.
