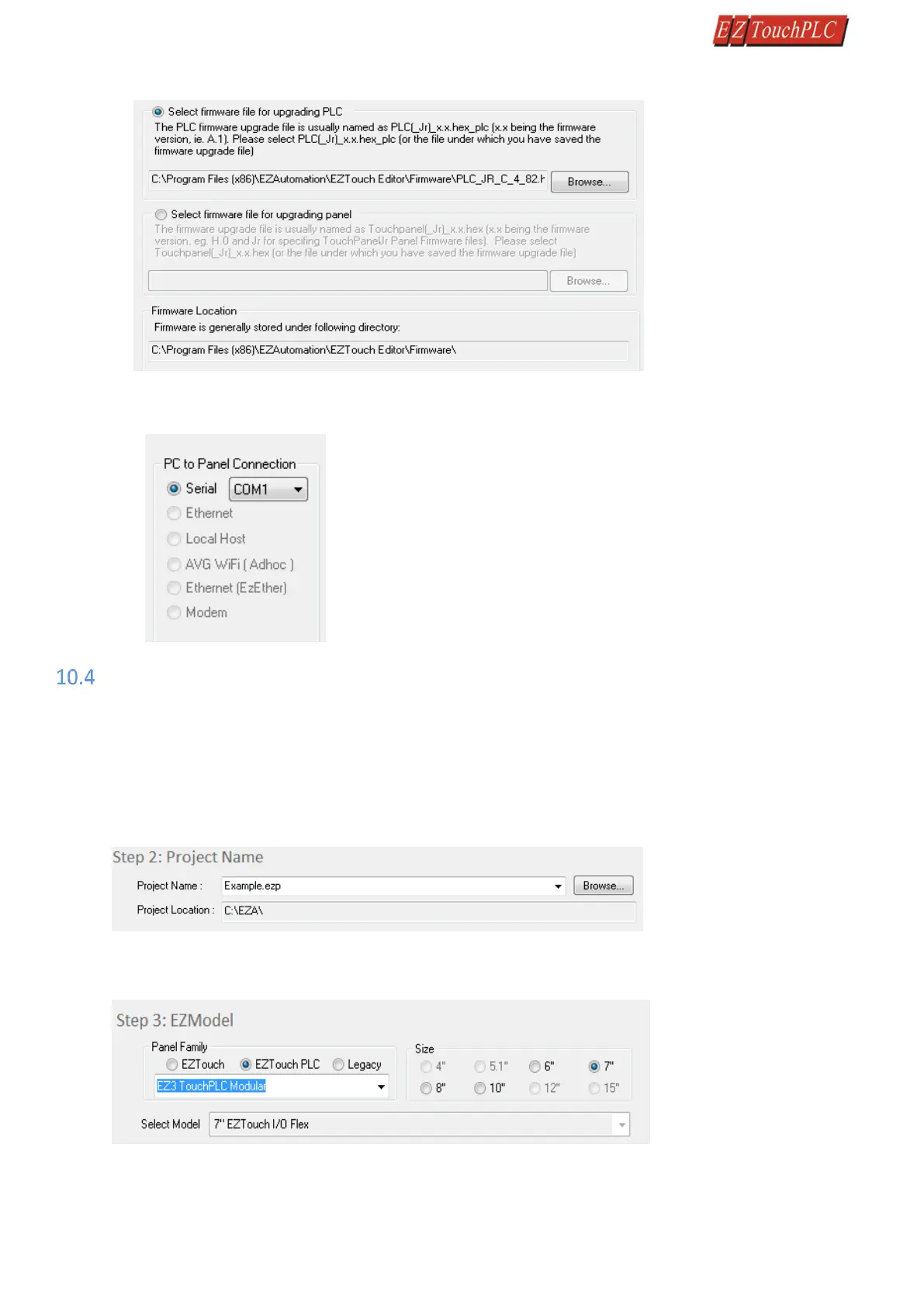

6. Use Browse to locate the appropriate firmware version.
7. Verify Serial (COM1) is selected under the PC to Panel Connection, then click OK.
Setup IP Address
The EZ3-TouchPLC Modular will arrive with a factory-programmed IP Address that may need edited to be compatible
with your LAN network. Once the IP Address has been adjusted to the LAN, the EZ3-TouchPLC Modular can receive
programming instructions through either the serial port (COM1) connection or via the Ethernet. Follow the steps below
to use the editing software to update the IP Address information though a COM port on the EZ3-TouchPLC Modular.
1. Insert a USB cable or EZ-PGMCBL programming cable. Then launch the editing software EZTouch Editor.
2. Select Edit Program OFFLINE and enter a project name (e.g. Test). Click OK.
3. Select EZ3 under Panel Family. Then select the size appropriate for your purchased unit (6", 8" or 10").
