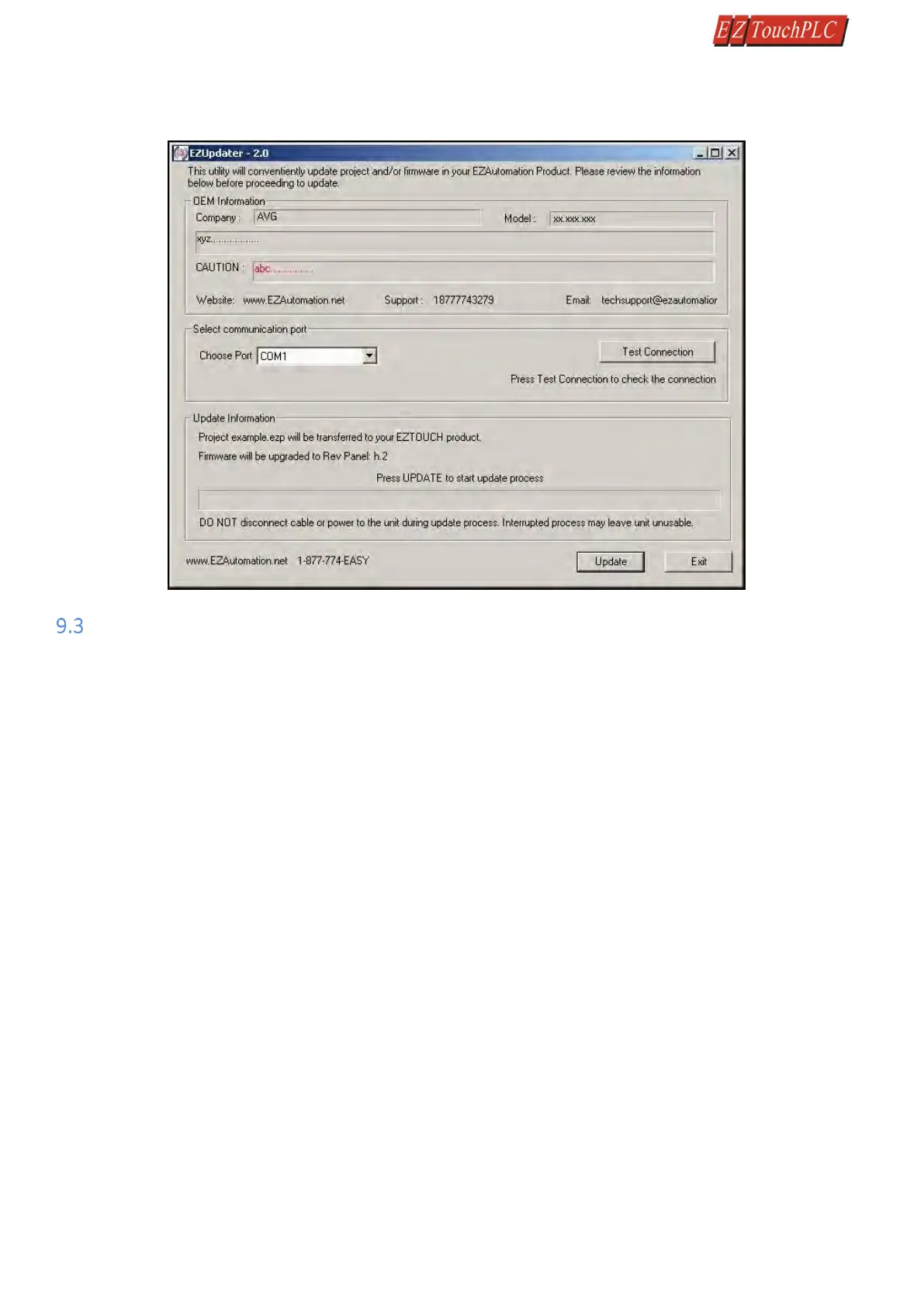

4. Once you click on OK, EZUpdater window appears on the screen with an option to select the
communication port. You may also test the connection, before a final click to update button. Click on the
Update button to update the Project and/or the Firmware on your EZ Series TouchPLC.
Create USB Loader
Through the EZTouch Editor Software (version 5.5 and higher) users can program EZ3-TouchPLC Modular through a
USB Flash drive. This process especially benefits System Integrators and OEMs with upgrading the Panels on-site
without having to actually connect to a computer. Since multiple programs can be saved on one USB Flash drive, the
user can program different panels with the same USB Flash drive, or quickly change the Panel for different jobs.
The EZ3-TouchPLC Modular can be programmed in following easy steps:
1. Create a USB file (*.hmi) using the EZTouch Editor.
2. Save the file on the USB Flash drive (only in the root directory).
3. Insert the USB stick into the EZ3-TouchPLC Modular USB port.
4. The panel brings up a list of projects that are available on the USB Flash drive. Select the necessary project
and press OK. (If the panel is not compatible with the project selected, an Error message is displayed.)
5. The project is automatically loaded on the EZ3-TouchPLC Modular.
