FAAC A140 AIR - Page 18

15
a
b
ENGLISH

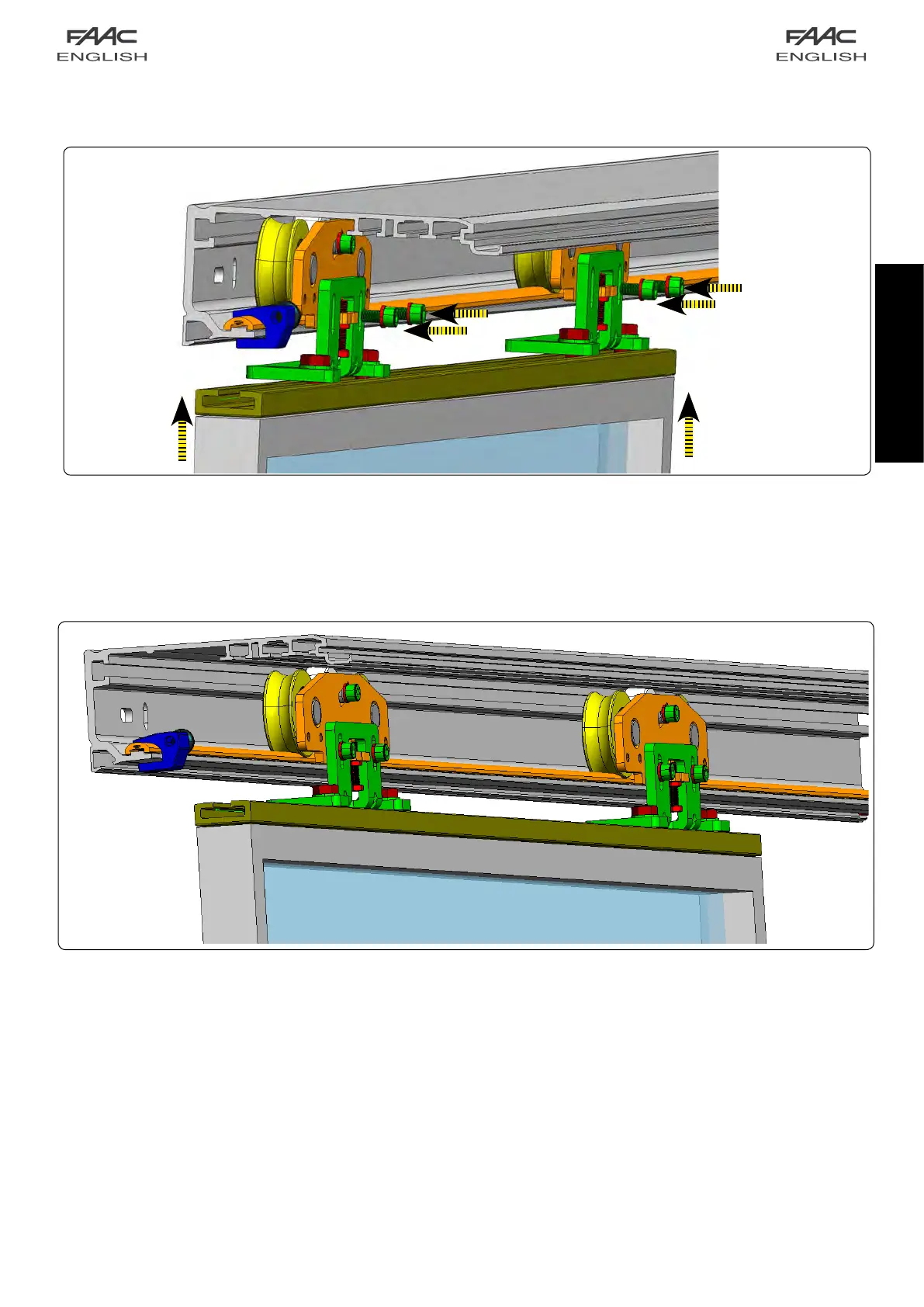

Lifttheleaf–carriagelowerplateassembledunittotheheightofthecarriageupperplate.fig22ref. a
Securethe2partsofthecarriageusingthe2screwsM6fig22ref. b
Adjustthecarriagesontheleafobservingthedimensionsindicatedinfig.9fordoubleleafandfig.7-8forsingle
leafversions.
Tightenthescrewssecuringthecarriagesfig23.
fig.22
fig.23
