2A-1 PREPARING THE LEAVES – Alternative method to fit heavy leaves
Preparetheleavesasdescribedbelow:

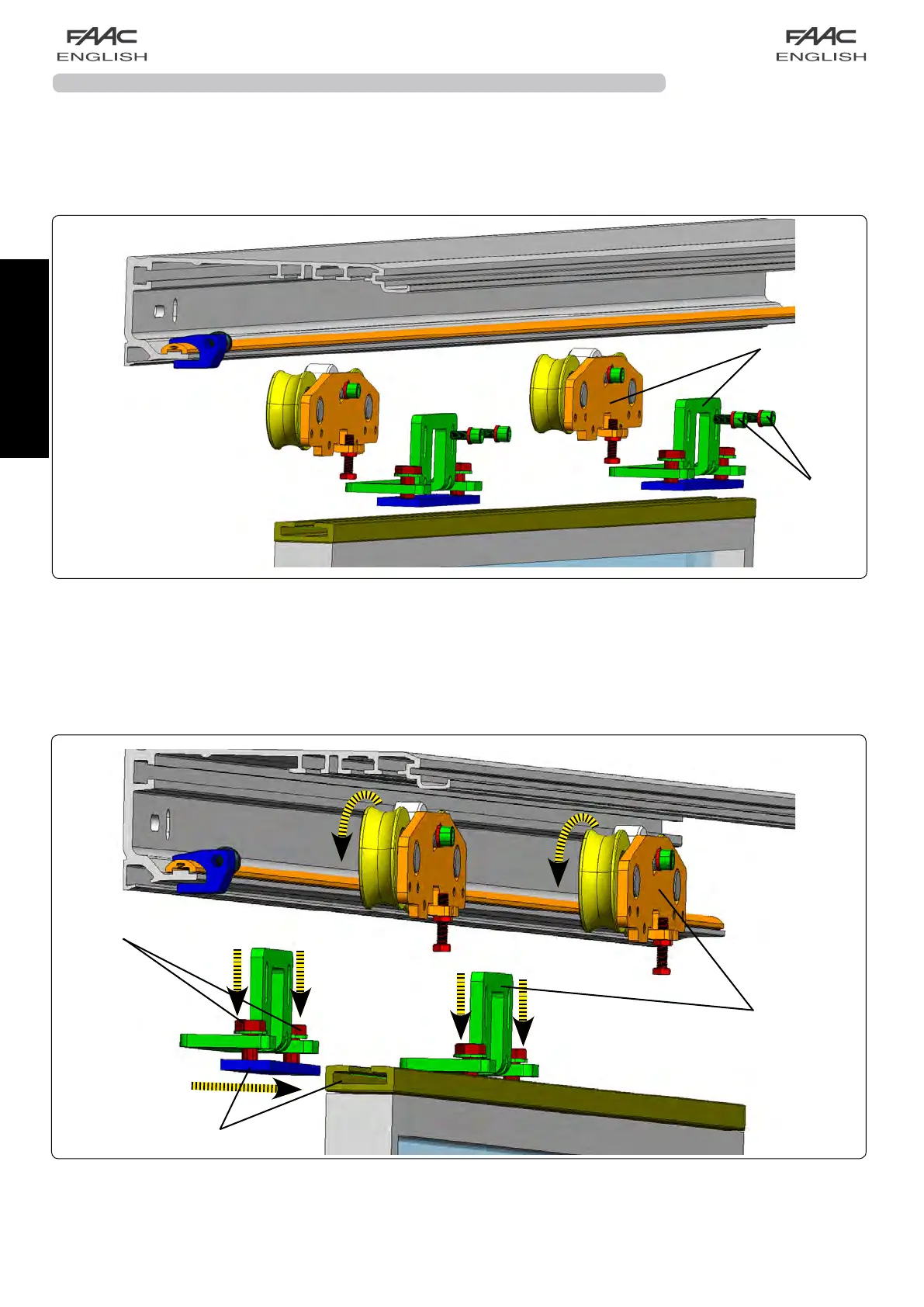

Disassemblethecarriagebywithdrawingtheupperandlowerplateofthecarriagefig.20ref.
b andremovingthe2fasteningscrewsM6fig.20ref. a .
Then,fittheupperplateofthecarriageontheslidingprofilefig21ref. b andfitthelowerplateofthe
carriageintheleaffittingprofilefig21ref. a .Thensecureusingtheboltsfig21ref. c .
fig.20
fig.21
