22 A140 AIR H100-H140 FREE-STANDING TRANSOM FITTING

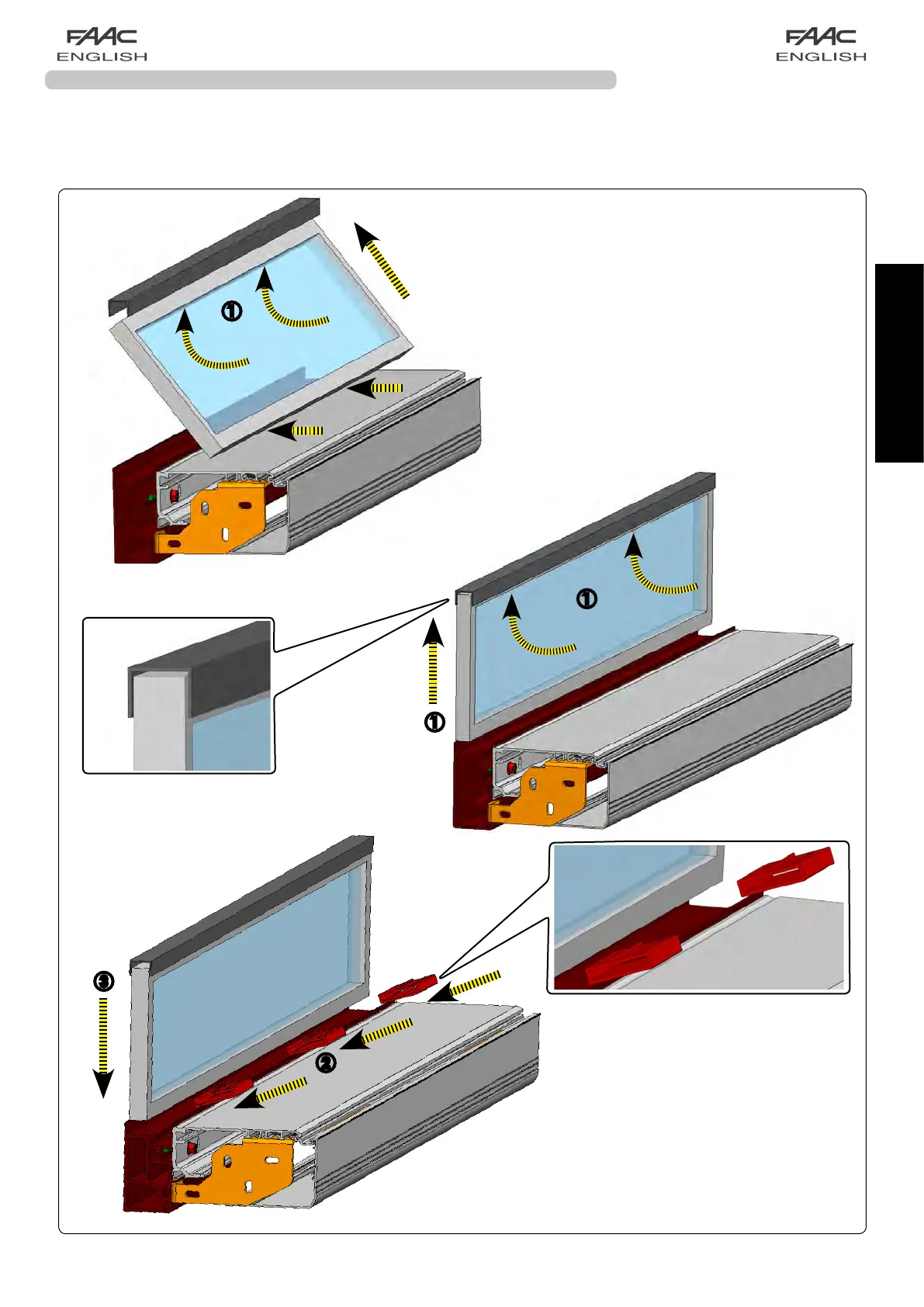

A140AIRFree-standingcanbeusedwiththetransomprofile.
Fit the glass leaf that must be inserted into the upper profile
fig.56a A,B.
Theninsertthetransomprofiles,uniformlyspaced,inthebottomof
theglassleaffig.56b c C.
