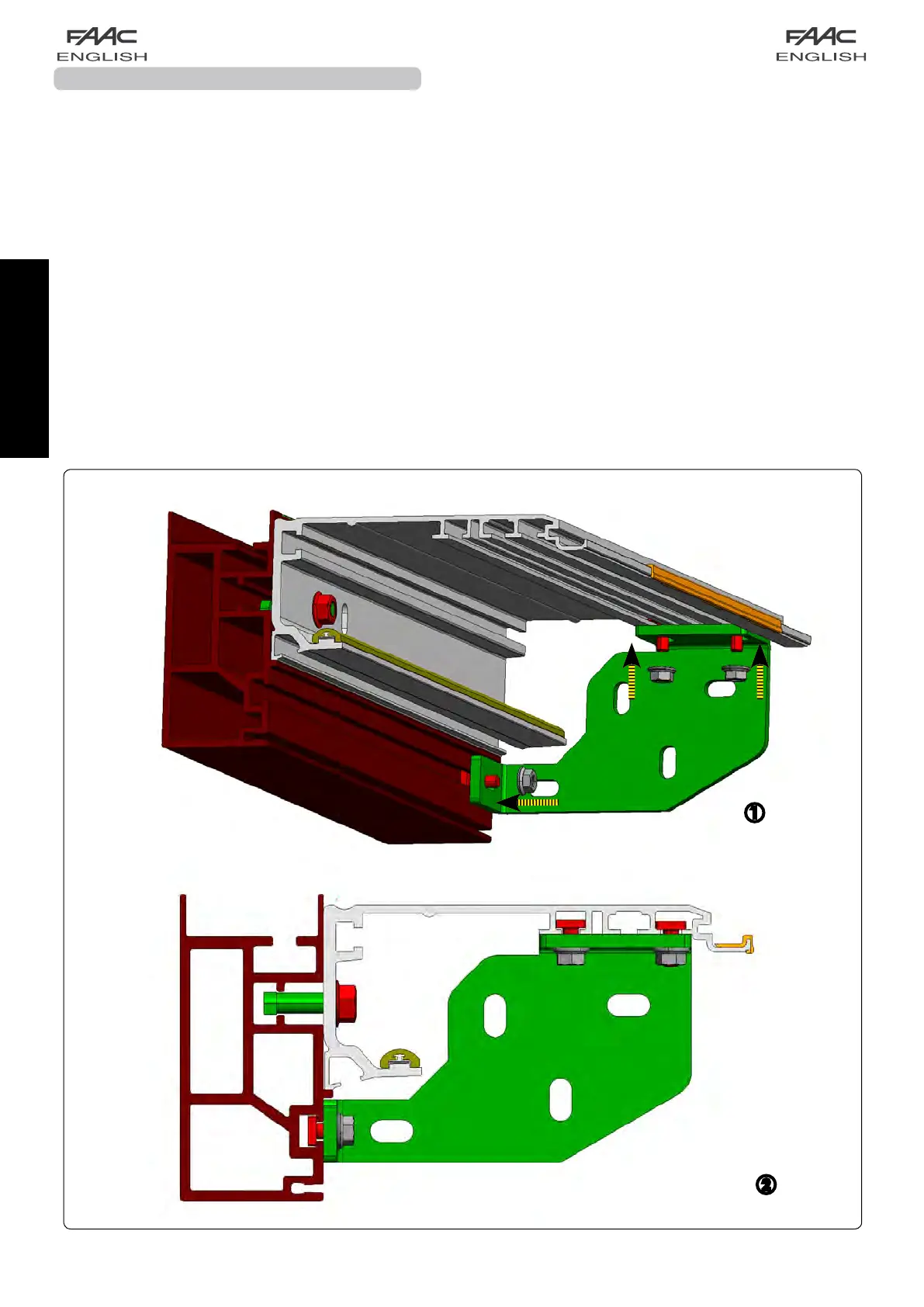

fig.55
INSTALLING AN ASSEMBLED AUTOMATED SYSTEM
Thefree-standingprofileissuppliedalreadyassembledtothe
support profile and with side brackets already fitted on the
crossbeamfig.55
•Securethecrossbeamto thewallusingtheholeson the
sideplates(fig.55.b)andbymeansofsuitabledowels(not
standard-supplied).
Accordingtothecrossbeamlength,intermediatefastening
operationscanberequiredandexecutedbymeansofthe
guideshowninfig.54.
Acentral fasteningis in anycase recommendedalso fora
lengthbelow3000mm.
Ifyouprefer,afasteningtothewallcanbeperformedbutthe
free-standingprofileisnotpreparedforthis.
Todrill,followtheinstructionsbelow:
1)Removethesidebrackets
2) Disassemble the support profile from the free-standing
profile.
3)Drillthenecessaryholesonthefree-standingprofileinthe
positionshowninfig.54a.
