ENGLISH

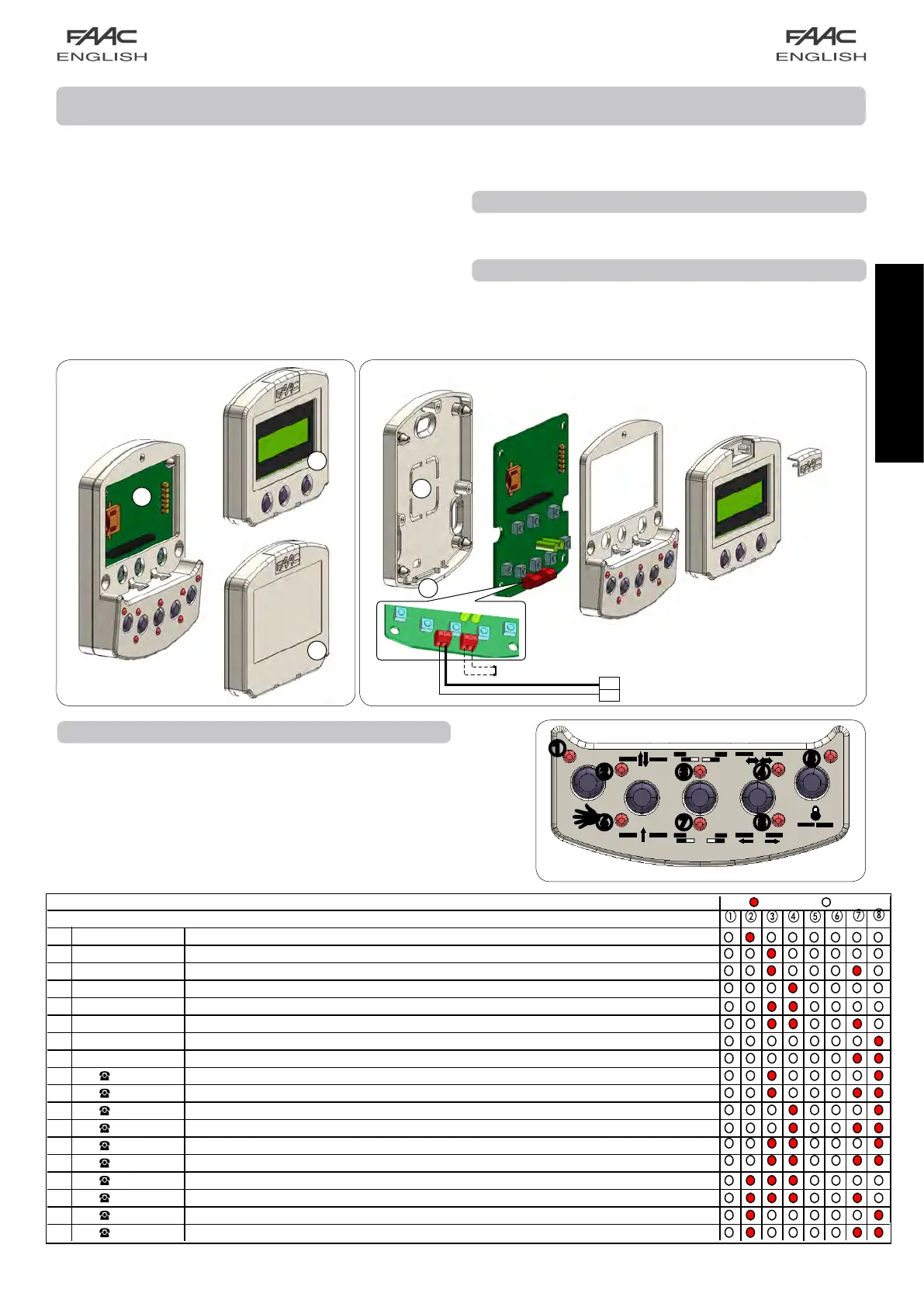

SD-KEEPER PROGRAMMING UNIT
TheSD-Keeperisusedforselectingoperationalfunctions,andfor
controlling and programming sliding automatic doors.
It is divided into two parts: a fixed part used for selecting the
operating functions by means of push-buttons and relevant
signallingLEDs(fig.61ref.A),andapull-outpartwithLCDdisplay
to access complete programming (fig. 61 ref. B).
TheSD-Keeperdisplaycanbeusedasatemporaryprogramming
unit: after all programming and adjustments have been carried
out, it can be fully removed because the settings remain stored
on the control board.
When the display is removed, a cover is provided (fig. 61 ref. C).
DIAGNOSTICS
SD-Keeper(alsowithoutdisplay)hasadiagnosticfunctionwhich,
in case of an alarm, interrupts normal display of the function
every 2 seconds in order to show the fault status for 1 second by
acombinationofflashingLEDs.
Consult fig.63 and table 1 to identify the type of alarm by
interpretingtheflashingLEDs.
If there are several simultaneous faults, the first to be detected
is shown.
SD-Keepercanbedisabledbyacombinationofkeys(seethe
special LOCK function) or by internally fitting a jumper by means
of a switch (fig.62 ref. LOCK).
FITTING
Refer to fig. 62 for an exploded view of fitting. Let cable route
through point A or B according to the cable position needs.
CONNECTIONS
ConnectSD-Keepertothecontrolboardwiththefollowingcable:
2x0.5mm2 max 50m (fig. 62).
If a jumper is closed between two terminals as shown in fig. 62
(LOCK), all keys on the programmer are disabled.
fig. 62
fig. 63
fig. 61
Tab.1 DIAGNOSTICS Led =on =off
DESCRIPTION MEANING
ENERGY SAV. Operating on low battery consumption
2 BAT. OPERATION Door operating on battery
3 FORCED OPEN Door forced opening in progress
4 FLAT BATTERY Battery discharged: emergency movement not guaranteed
6 EMERG 2 ON Emergency 2 input active
7 EMERG 1 ON Emergency 1 input active
8 OBST. IN OPEN. Opening obstacle detected 3 successive times; Reset necessary to restore operation
9 OBST. IN CLOS. Closing obstacle detected 3 successive times; Reset necessary to restore operation
10
Motor lock locked in closed position
11
Motor lock locked in open position (with surveillance kit only)
12
Incorrect power supply to motor
13
Sensor monitoring test 2 failed on input P2
14
Sensor monitoring test 1 failed on input P1
15
Setup not possible
22
Initialisation process not possible on motor: too much friction or leaf too heavy
23
Accessory power supply +24 V dc faulty (probable short circuit)
24
Motor failure
25
Control board faulty
