Facility Explorer FX15 - Inputs and Outputs; Introduction to I;O Channels

FX15 Controller Technical Bulletin
26
Inputs and Outputs
Introduction
The FX15 controller features the following I/O Channels:
• six high resolution Analog Inputs (AIs) (13 bit, A/D Converter)
• eight opto-isolated Digital Inputs (DIs) from potential free contacts,
each with transition counter
• nine Digital Outputs (DOs) (four relays, and five optional relays or
triacs)
• four opto-isolated Analog Outputs (AOs)

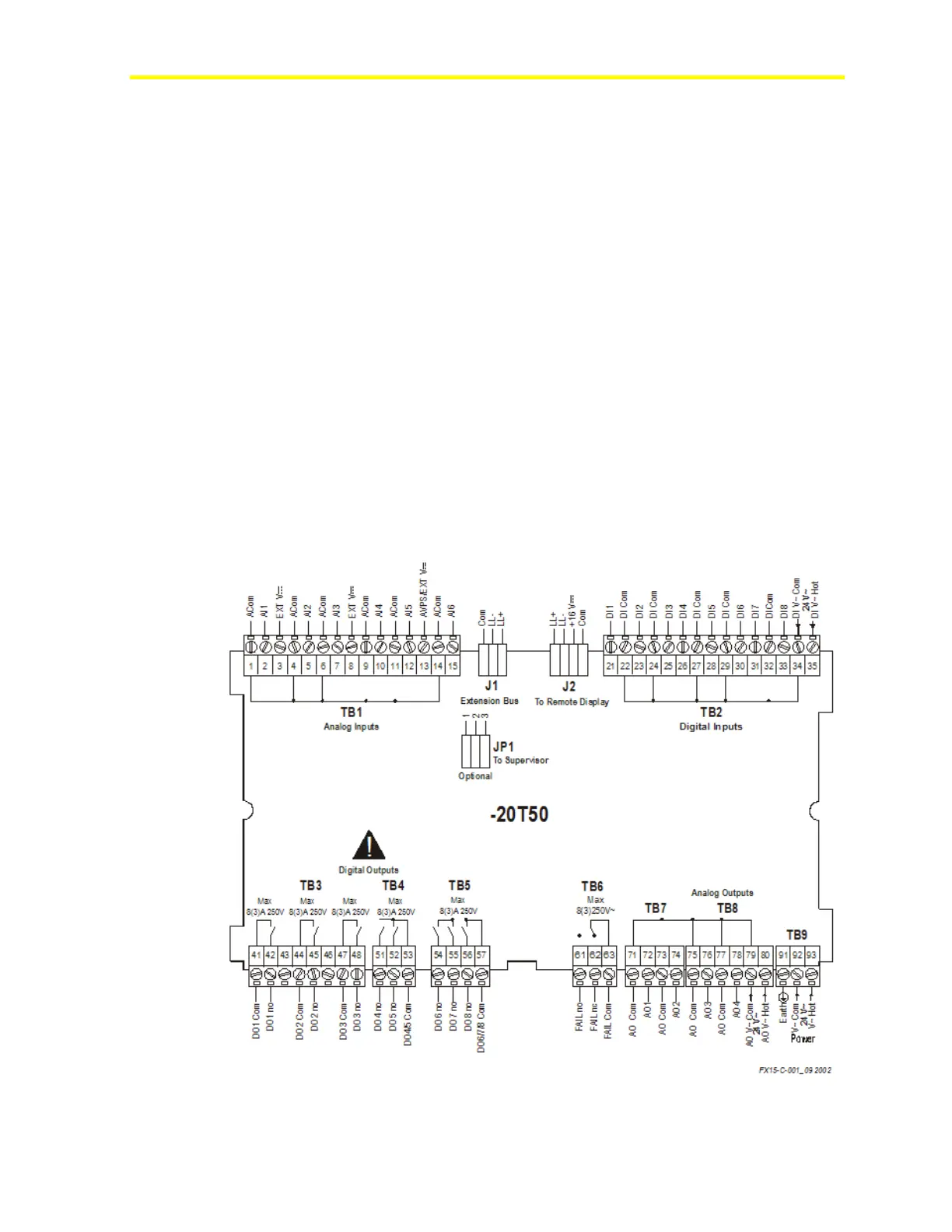

Figure 28: FX15 Controller I/Os
