FX15 Controller Technical Bulletin
29
FX15 Controller I/Os Powered at 24 VAC

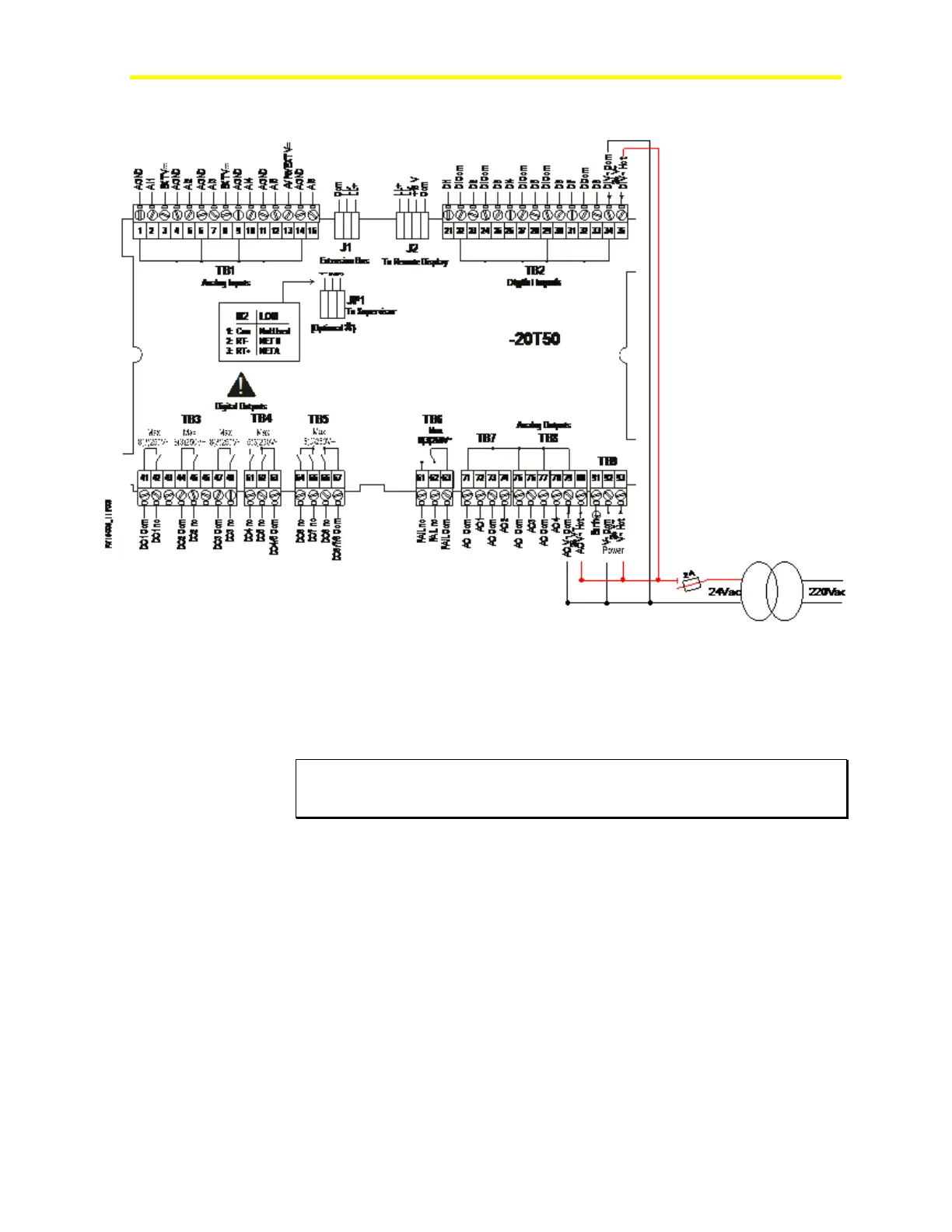

Figure 30: Powering FX15 Controller I/Os
To maintain the insulation between the FX15 controller power supply
and the I/Os, run the power supply cable while respecting the polarity as
shown in Figure 30, and add an External Protection fuse (2 A) to avoid
incorrect wiring.
IMPORTANT: Maintain proper polarity and voltage or current ratings.
Improper polarity or exceeding the voltage or current ratings will void the
warranty.
15 VA
