FX15 Controller Technical Bulletin
Introduction to FX15 Controller

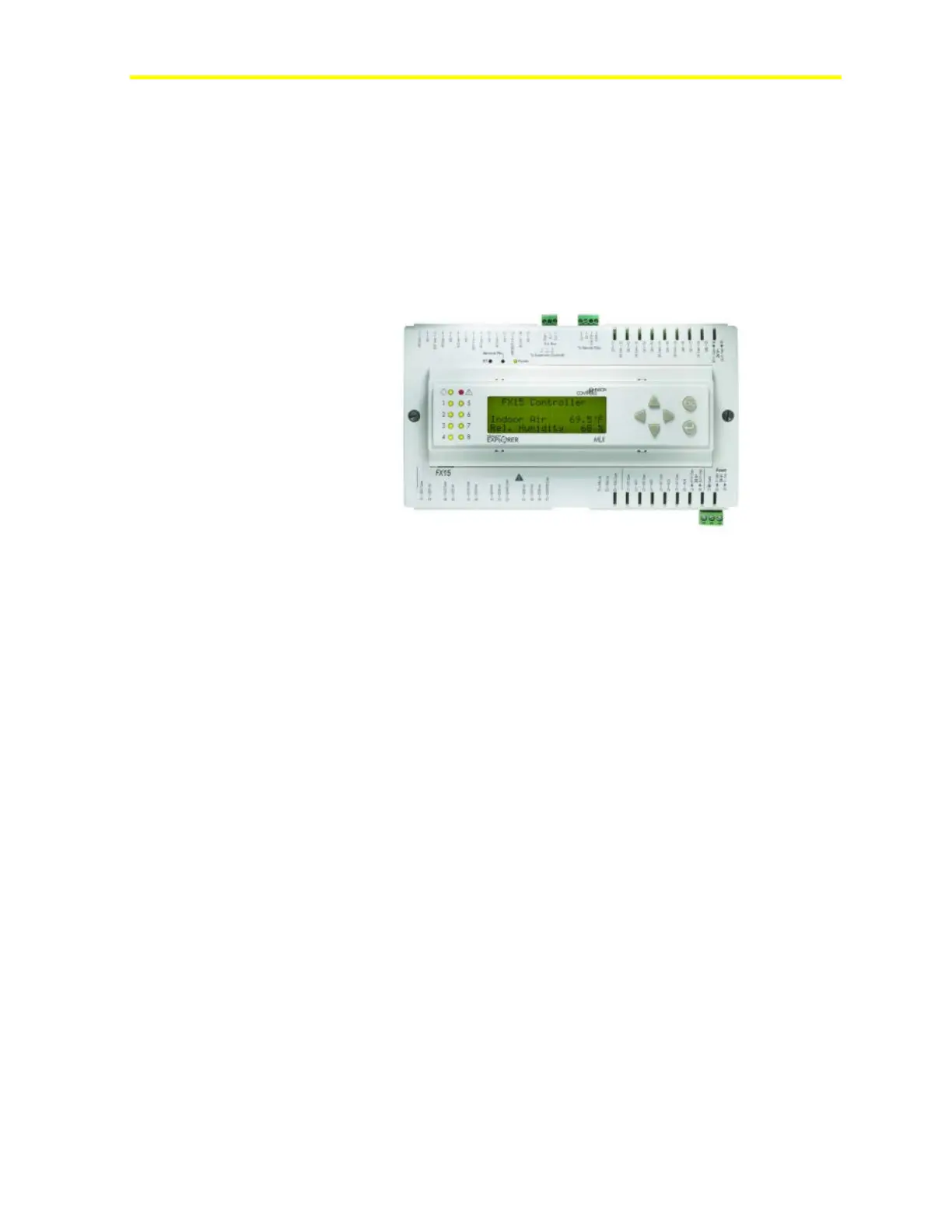

Figure 1: FX15 Classic Controller
The FX15 controller is a high performance field controller of the
Facility Explorer system, specifically designed for commercial Heating,
Ventilating, Air Conditioning, and Refrigeration (HVACR) applications
such as chillers and rooftops, indoor packaged air conditioning units, air
handling units, and close control units.
The FX15 controller has 27 physical inputs and outputs and supports a
wide range of temperature sensors and actuating devices. Additional
physical inputs and outputs may be achieved by adding the XT/XP
expansion modules on the local Extension bus.
The FX15 controller is fully programmable or configurable, using the
FX Tools Pro software package, for a wide range of commercial
environmental control applications.
The FX15 controller is also available with a serial communication card
for integration into a Building Automation System with a LONWORKS®
or N2 Open bus network.
For stand-alone applications an onboard, real-time clock circuit is also
included to support the start-stop scheduling of equipment and real-time
based control sequences.
The FX15 controller can be integrated, as a slave device, in a distributed
control application managed by a master controller (FX16 Master
Controller or Master Display).
