FX15 Controller Technical Bulletin
Connection Details for the LONWORKS Card
The FX15 controller comes with the LONWORKS card either installed or
not installed. If the LONWORKS card is not installed, you can install the
LONWORKS card at a later time in the field. For details, see Ordering
Codes.
The LONWORKS plug-in serial card allows you to connect the FX15
controller to a LONWORKS network.

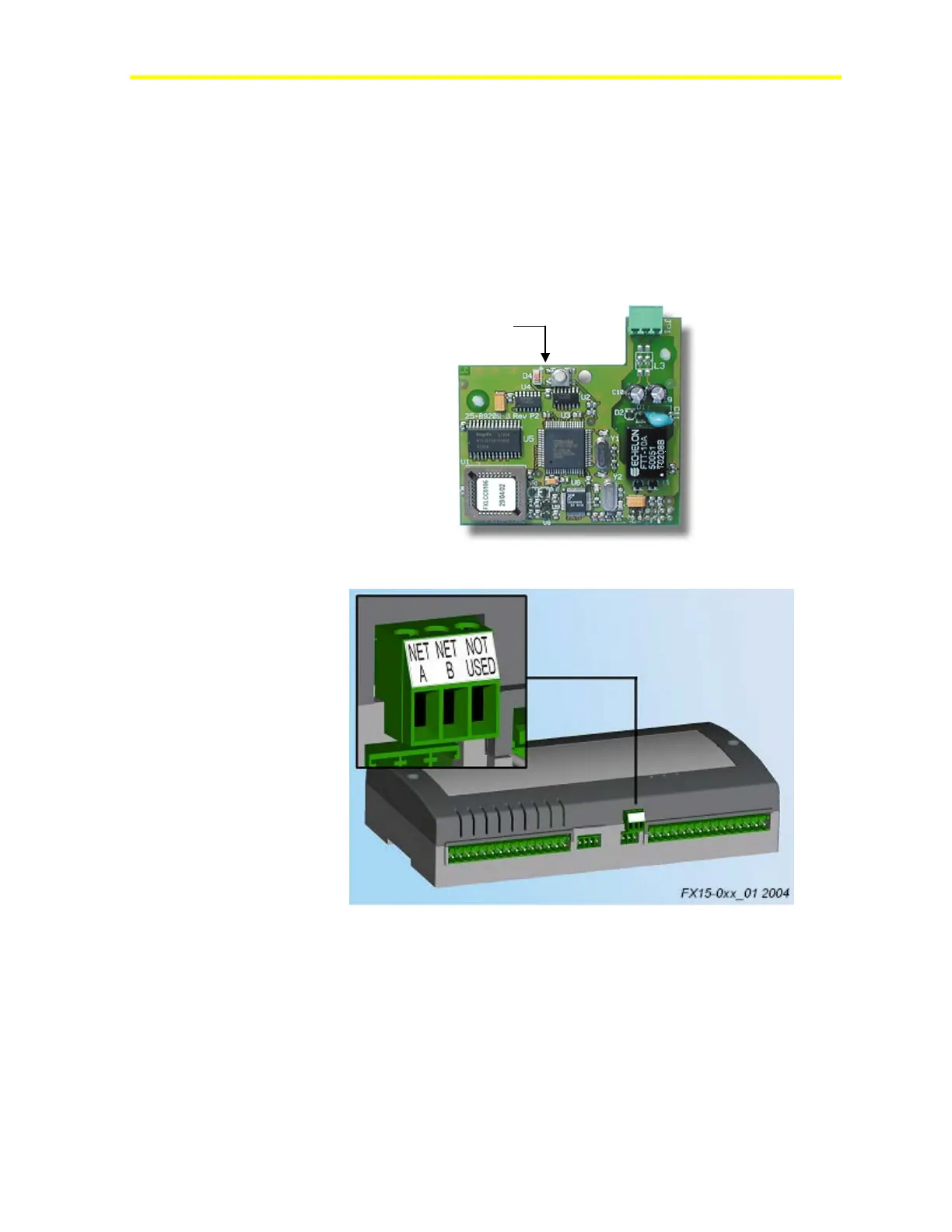

Figure 17: LONWORKS Plug-in Communication Card
Figure 18: LONWORKS Card Connection
Assembling the LONWORKS Communication Card
To assemble the LONWORKS communications card:
1. Power off the controller (hot plug-in not allowed).
2. Open the controller. See Figure 19.
