Facility Explorer FX15 - Digital Inputs Configuration

FX15 Controller Technical Bulletin
36
Digital Inputs
The FX15 controller features eight opto-isolated digital inputs from
potential-free contacts. A digital input is active depending on its polarity
setting. The default setting is Direct, meaning it is active (true) when
closed.
See I/O Technical Details for the complete FX15 controller I/O table.
Digital Inputs Powered by 24 VAC
The eight FX15 controller Digital Inputs must be 24 V powered
(through terminals 34 and 35). Both AC or DC voltage can be used. If
DC is used, then the power supply of the DIs must be independent from
the controller power supply (FX15 controller is compatible with VAC
power only). The digital inputs can use the same FX15 controller
voltage supply, or they can be separately powered in order to maintain
the microprocessor opto-isolation from the controller voltage supply.
32
21
DI1 DI2
DI8
DI V ~ Hot
24
2322 33
34
35
24V
V ~ Hot
939291
V ~ Com
Earth
FX16
220Vac24 Vac
220Vac24 Vac
DI V ~ Com
DICom DICom DICom

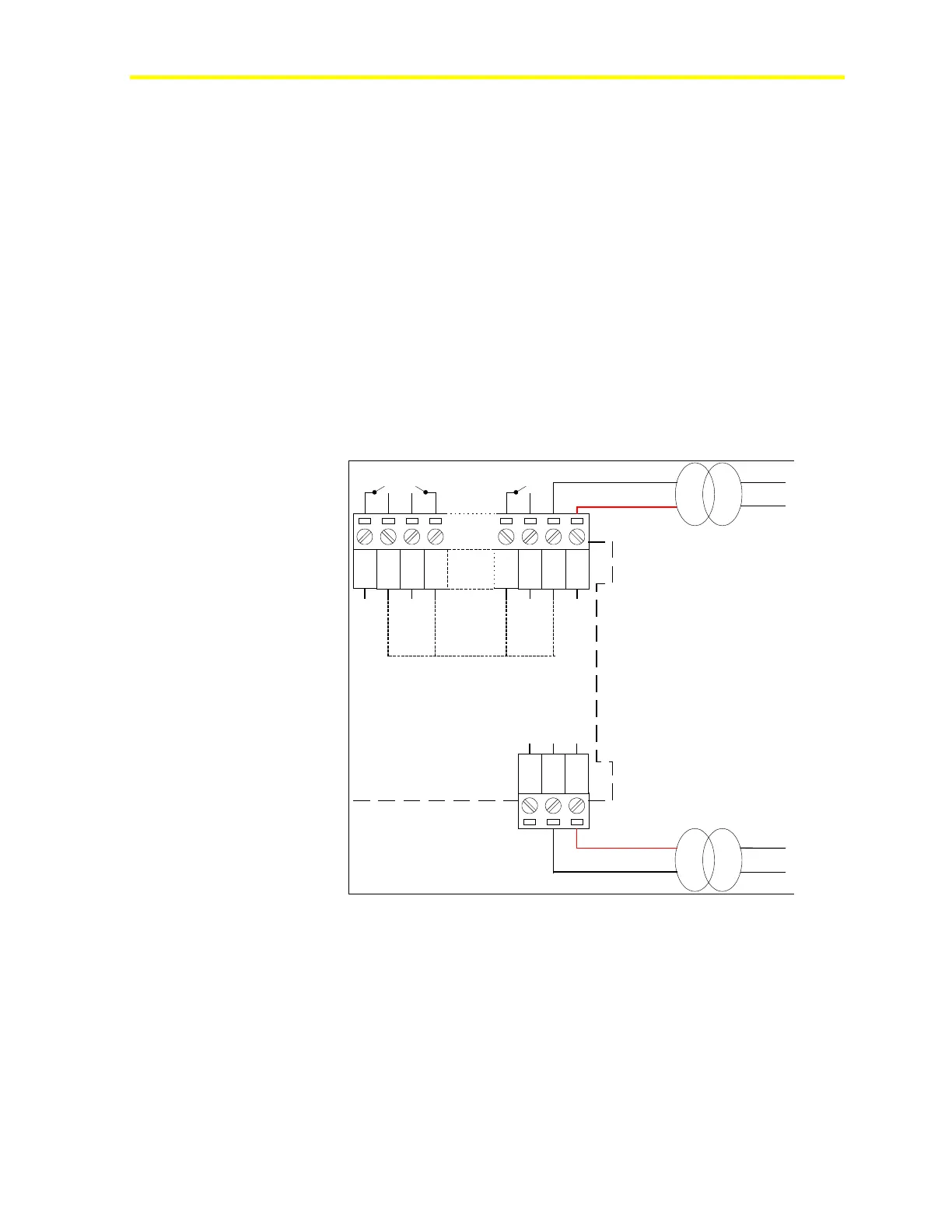

Figure 36: Powering Digital Inputs Maintaining Opto-Isolation
3 VA max
15 VA
FX15
