Facility Explorer FX15 - Isolation Diagram

FX15 Controller Technical Bulletin
28
Detailed Procedures
Isolation Diagram

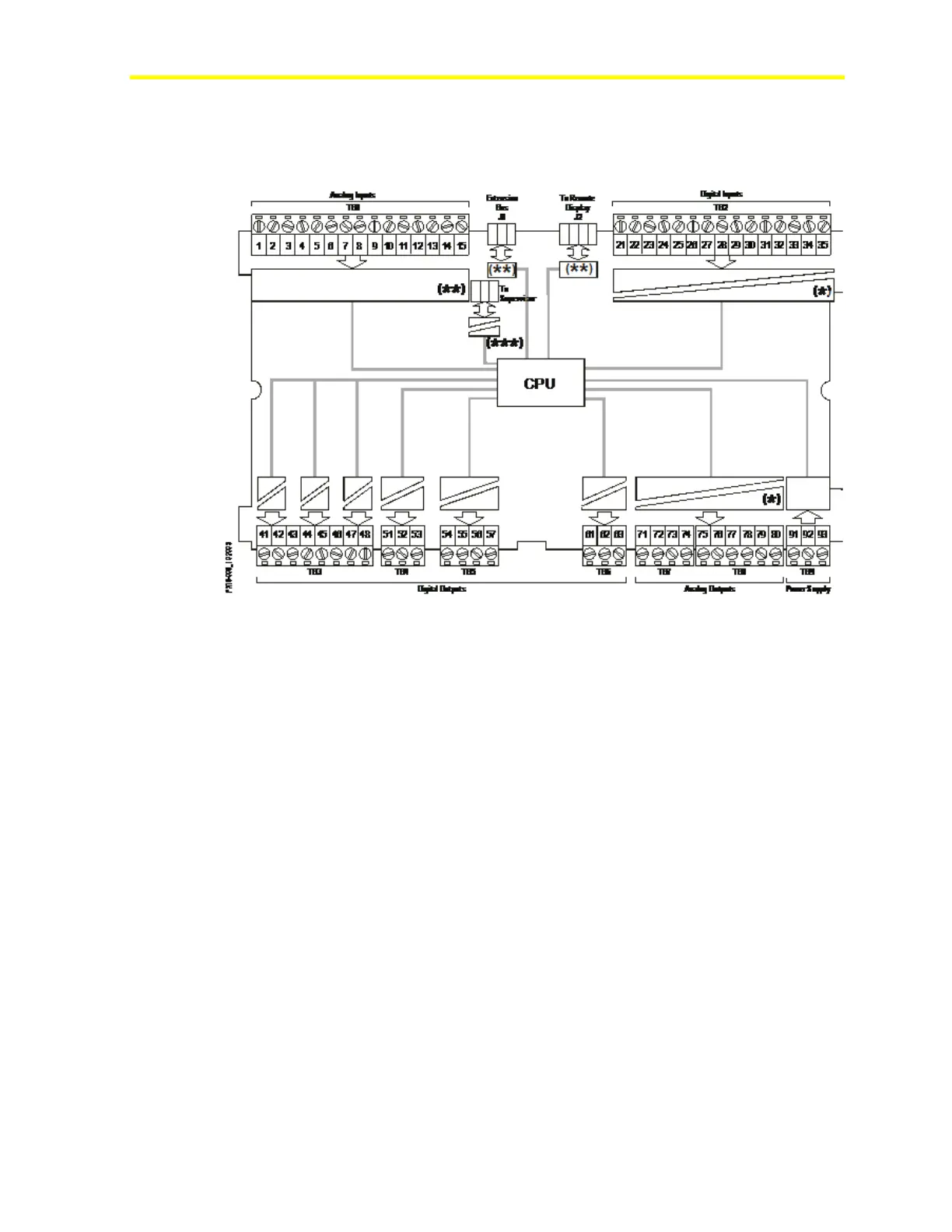

Figure 29: Insulation Diagram
(*) Opto-isolated (maximum 500 V) if an additional separated power
supply is used
(**) Not isolated
(***) DC/DC converted with dielectric strength up to 1000 V
