FX15 Controller Technical Bulletin
Assembling the Integrated MUI
To assemble the integrated MUI:
1. Remove the FX15 controller front cover screws.

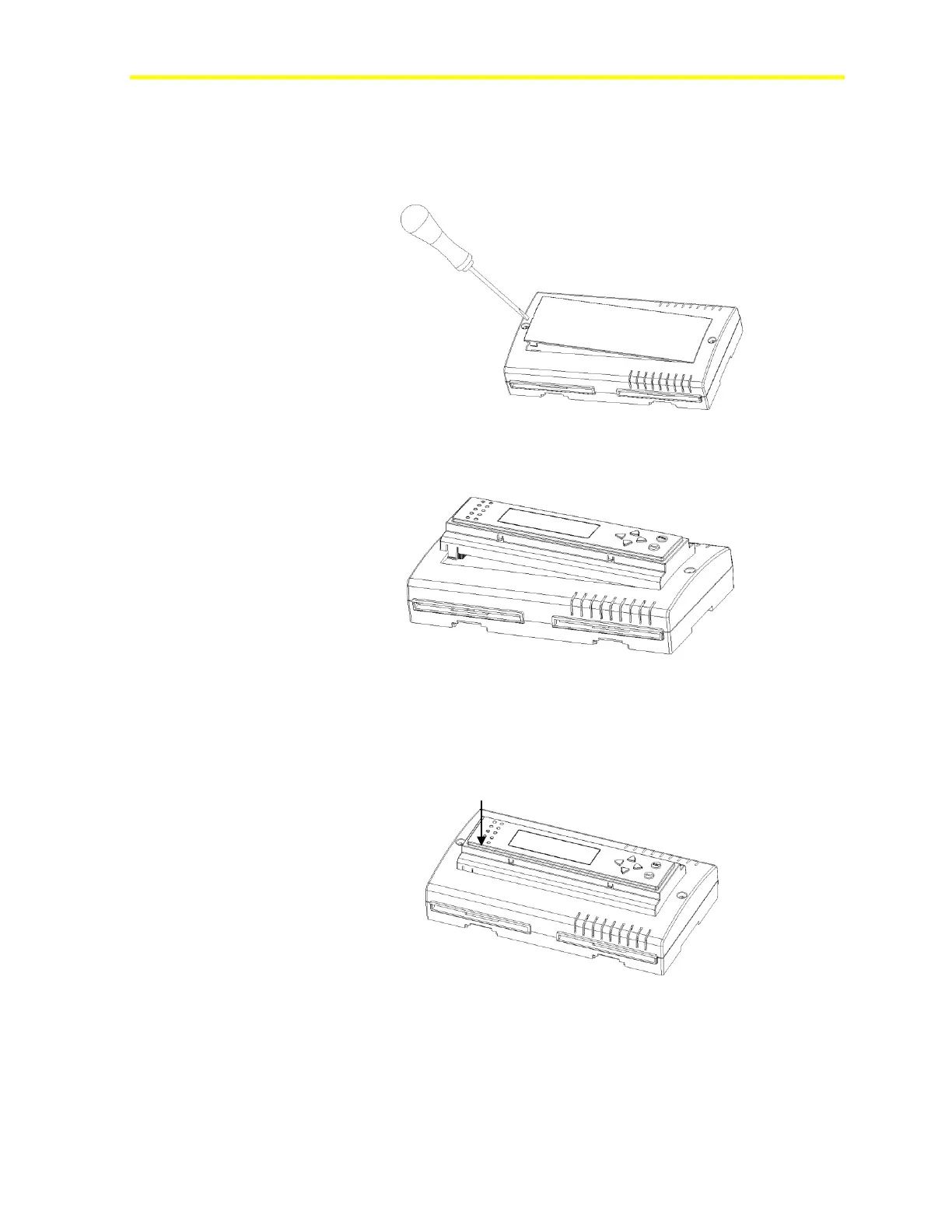

Figure 4: Open the FX15 Controller
2. Hook the display to the top of the FX15 controller cover.
Figure 5: Display Installation
3. Push the display down until it locks into the FX15 controller.
Figure 6: Display Locking
