FX15 Controller Technical Bulletin
Connection Details for the FX Programming Key
Use the FX Programming Key to upload an application from a computer
or from a preprogrammed FX15 controller, then download that
application to other FX15 controllers.
Upload Download
<1 sec
>3 sec
>15 sec
to select
to confirm
for MEMORY ERASE
Download / Upload
LED
Download / Upload failed
LEDs
LP-KIT100-001_09 2002

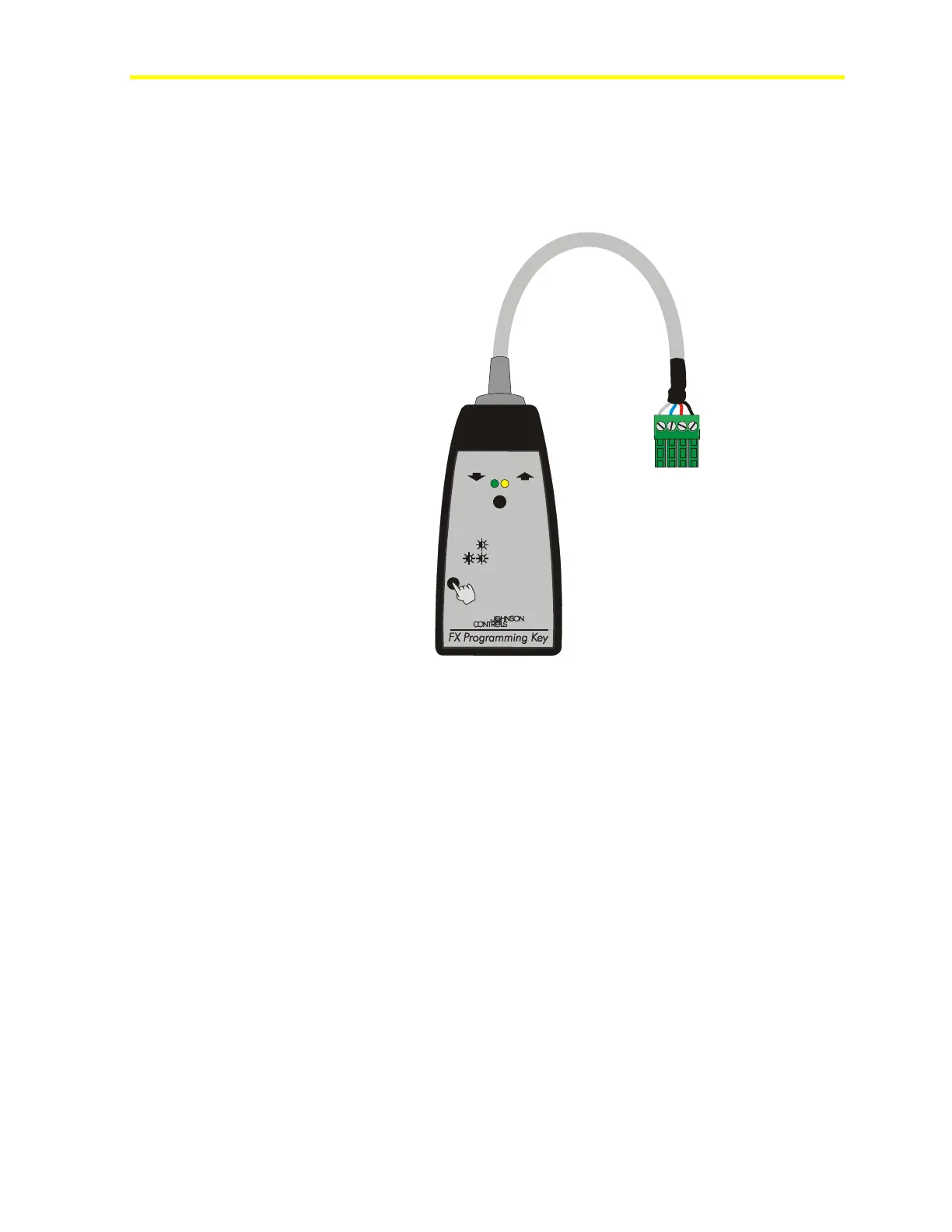

Figure 25: FX Programming Key
