Facility Explorer FX15 - Extension Module Configurations

FX15 Controller Technical Bulletin
43
Analog outputs in extension modules can be configured to provide
0-10 V, 0-20 mA or 4-20 mA signals. The output has low range and
high range variables to provide a 0-100% signal to the extension
module.
Digital outputs in extension modules can only be configured as on/off
or pulse type, and the physical output may be a triac or a relay contact.
Pulse type outputs switch on for a configurable period (1 to 1,275 ms)
for each transition of the connected variable.
An XT91D00 can be combined with its expansion modules to provide
the following configurations:
• eight analog inputs/outputs
• eight digital inputs/outputs, with digital counters associated with the
digital inputs
• eight analog inputs/outputs and eight digital inputs/outputs
• 16 digital inputs/outputs, with digital counters associated with the
digital inputs within the first eight input/output points
XT
XT
XT
XT
XP-9102
XP-9103
XP-9103
XP-9107
XP-9103XP-9104
XP-9103
XP-9103
XP-9107
FX15 "Classic"
Extension Bus (J1)
FX15-C-007_10 2002

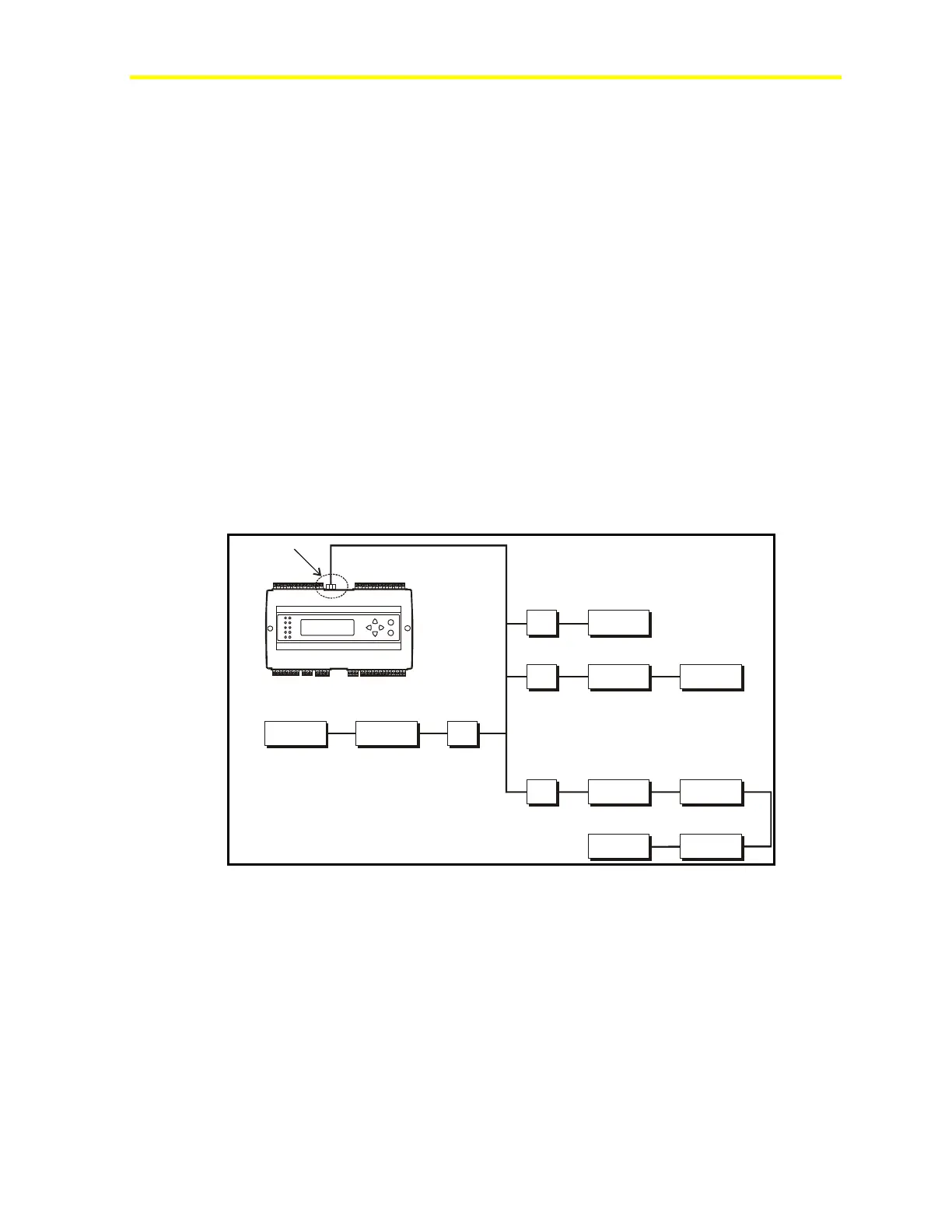

Figure 44: Example of Maximum Configuration
