FX15 Controller Technical Bulletin

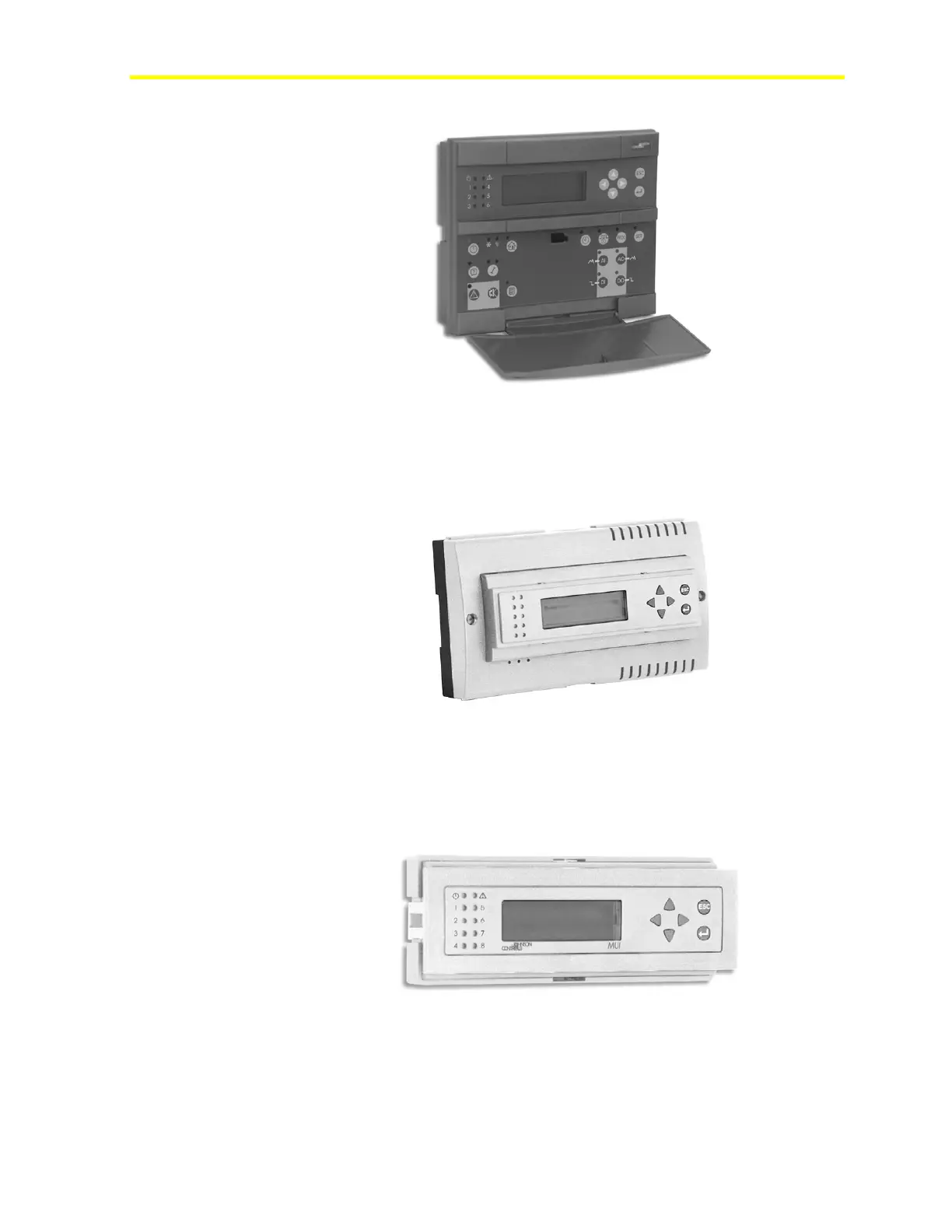

Figure 45 : Large User Interface (LUI)
• LP-DIS60U10-C: Integrated Medium User Interface, Integrated,
4x20 backlit Lighting Control Data (LCD), IP54, and extended
temperature range of -20°C (68°F) to 50°C (122°F).
Figure 46 : Integrated Medium User Interface (MUI)
• LP-DIS60P10-0C/LP-DIS60P11-0C: Medium User Interface, 4x20
backlit LCD, IP54, and extended temperature range of -20°C (68°F)
to 50°C (122°F). Panel mount, non-isolated version, and wall mount
isolated version.
Figure 47 : Medium User Interface (MUI)
For more details about the connection possibilities, refer to the specific
user interface technical bulletin.
