14 Fadal/Sinumerik 810D CNC: Pendant Hard Keys Function Guide October 2000
SIEMENS CONTROL
Operator Manual
Fadal

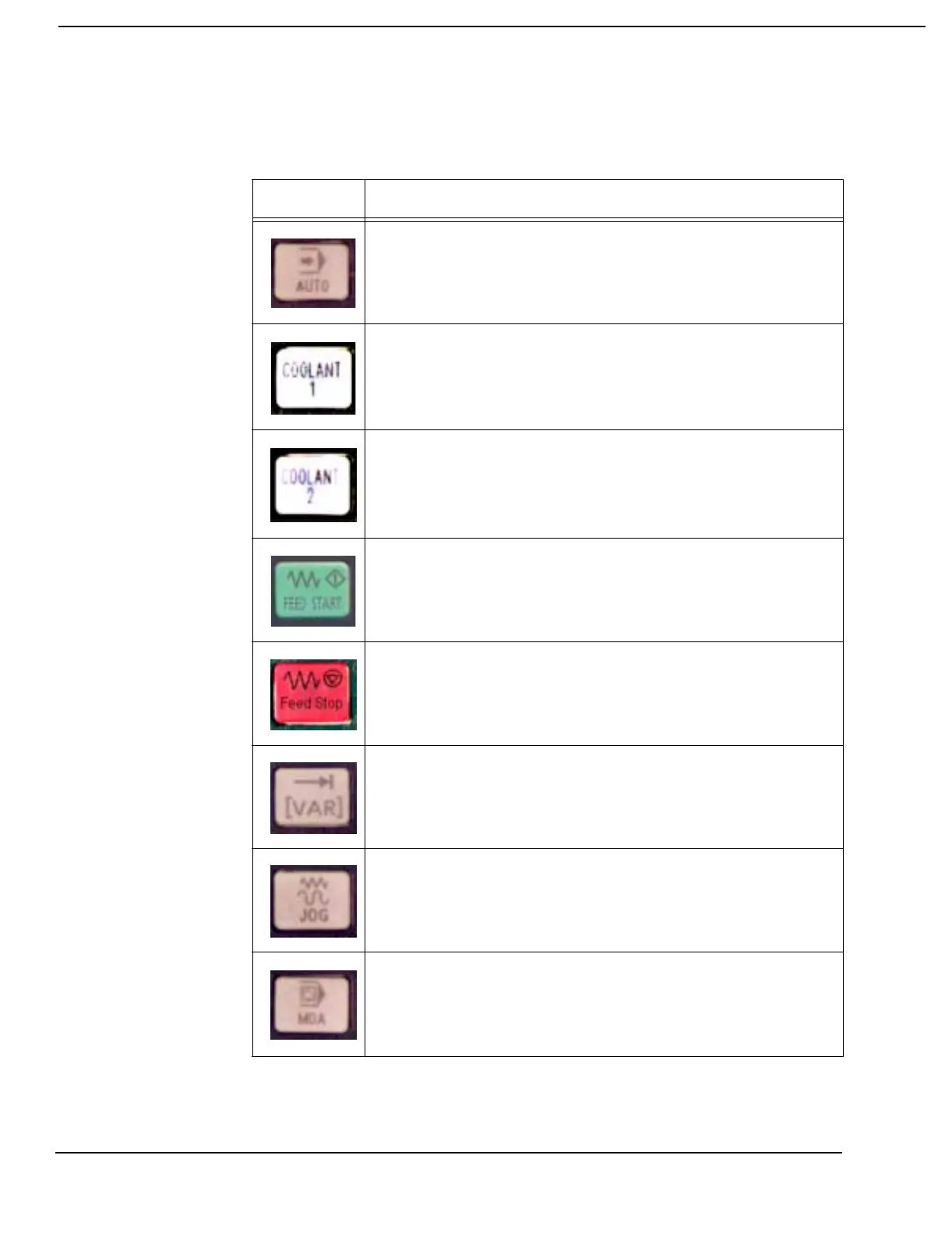

Table 2: Machine Control Panel Keypad Hard Keys
Key Name and Function
Auto Button
Initiates the automatic mode.
Coolant 1 Button
Toggles the coolant 1 feature on and off. Works in
combination with M7 and M9 codes.
Coolant 2 Button
Toggles the coolant 2 feature on and off. Works in
combination with M8 and M9 codes.
Feed Start Button
Feed start (Slide Start).
Feed Stop Button
Stop feed (Slide Hold).
Increment Jog Button
Activates Incremental sub-mode of Manual Mode. Allows
incremental JOG by JOG keys or MPG (hand wheel).
Jog Button
Initiates Manual Mode. Note: Reference, Incremental Jog
and MDA are all sub-modes of the Manual Mode.
MDA Button
Used to access Manual Data Automatic mode in ISO. Not
active in Shop Mill. In Shop Mill MDA is accessed via a soft
key in the Manual Mode.
