October 2000 Fadal/Sinumerik 810D CNC: Jog Modes Of Operation 27
SIEMENS CONTROL
Operator Manual
Fadal
M11 can be used to set the current magazine location as T1. Note that
this does not change the active T #.
Establishing Spindle RPM
Note:
Use the spindle OVERRIDE switch to vary the RPM manually from 50% to
120% of the programmed value.
M3 = CW SPINDLE ON
M4 = CCW SPINDLE ON
M5 = SPINDLE OFF
M41 = LOW BELT RANGE
M42 = HIGH BELT RANGE
CAUTION: The last RPM setting used by the control is active when the spindle is
turned on manually unless it is changed in the T,S,M mode.

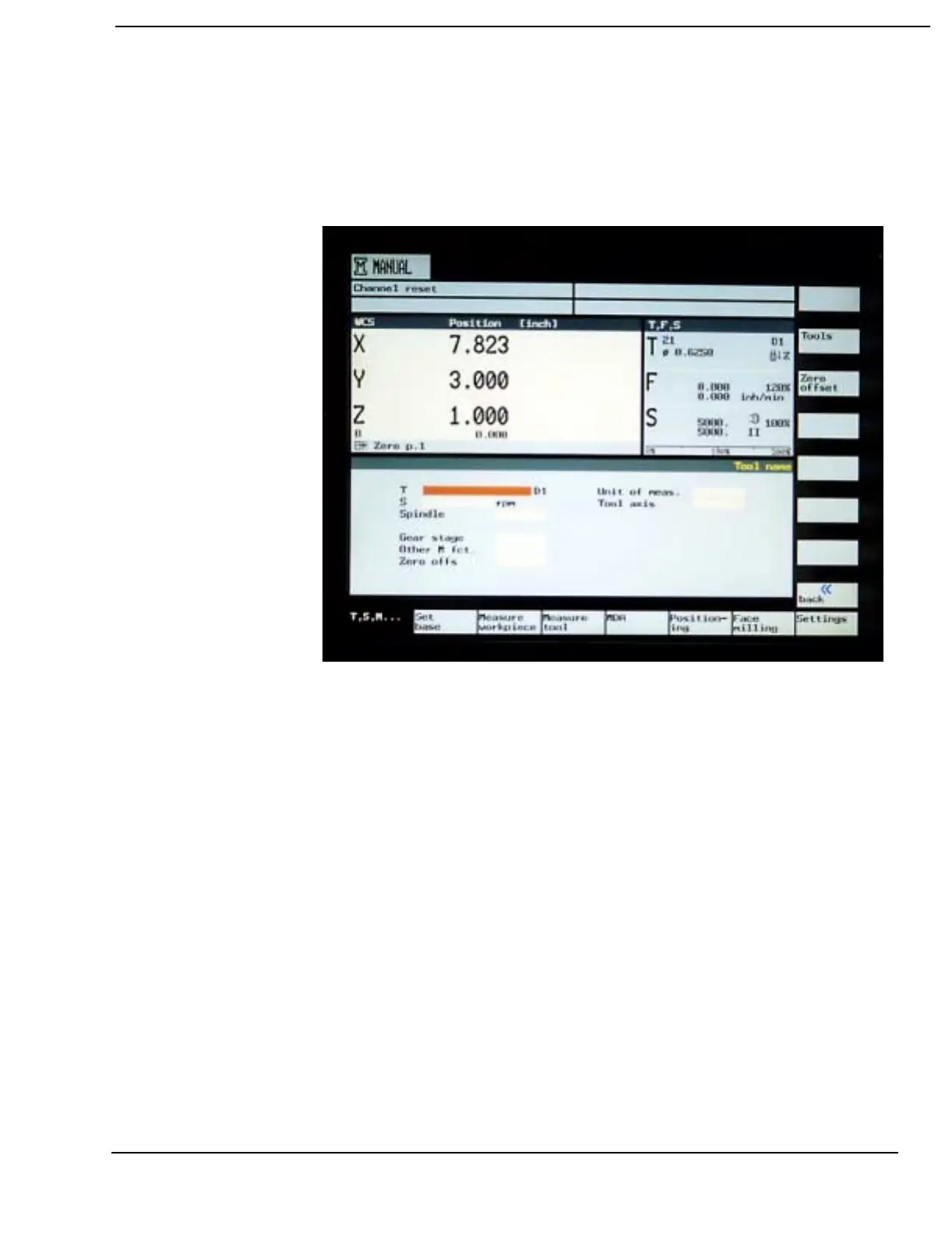

The spindle RPM can be started at the desired RPM and Rotational
direction by using the T,S,M soft key.
1) Press the JOG hard key.
2) Press the T,S,M soft key.
