24 Fadal/Sinumerik 810D CNC: Jog Modes Of Operation October 2000
SIEMENS CONTROL
Operator Manual
Fadal
Jog and Rapid Jog

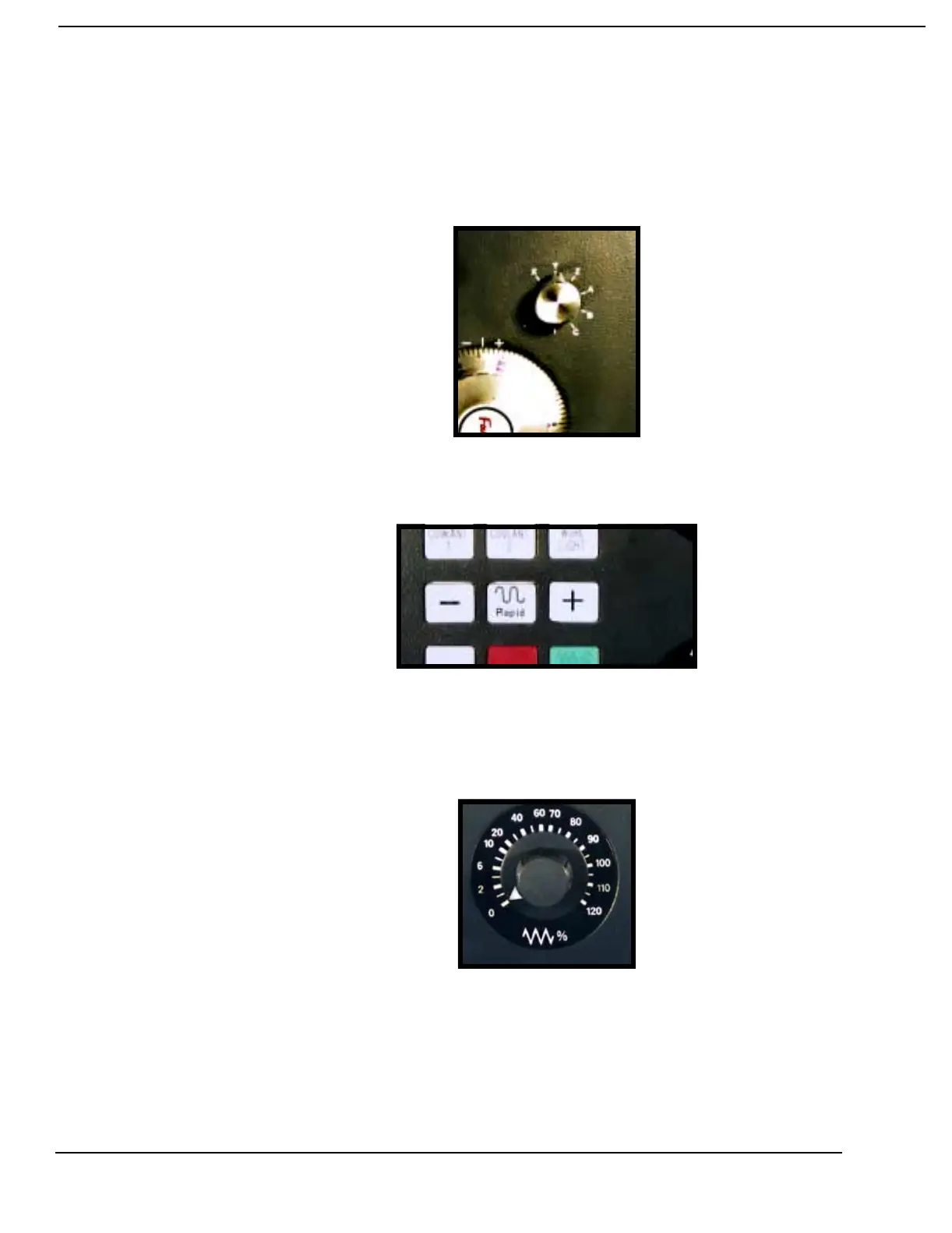

1) Press the JOG hard key and select the axis to be jogged from the
axis selector switch located to the upper right of the manual
pulse generator
.
2) Select the direction of the tool by pressing the “+” or “–” hard
key.
3) Pressing the RAPID JOG button together with the “+” or “-”
buttons activates the Rapid Jog feed rate.
4) With both JOG and RAPID JOG the user has the option to vary
the feed rate override to control the speed.
