50 Fadal/Sinumerik 810D CNC: Definition of Offsets October 2000
SIEMENS CONTROL
Operator Manual
Fadal
Tool Diameter Input
To enter tool diameter offsets:
1) Press the OFFSET PARAM hard key.

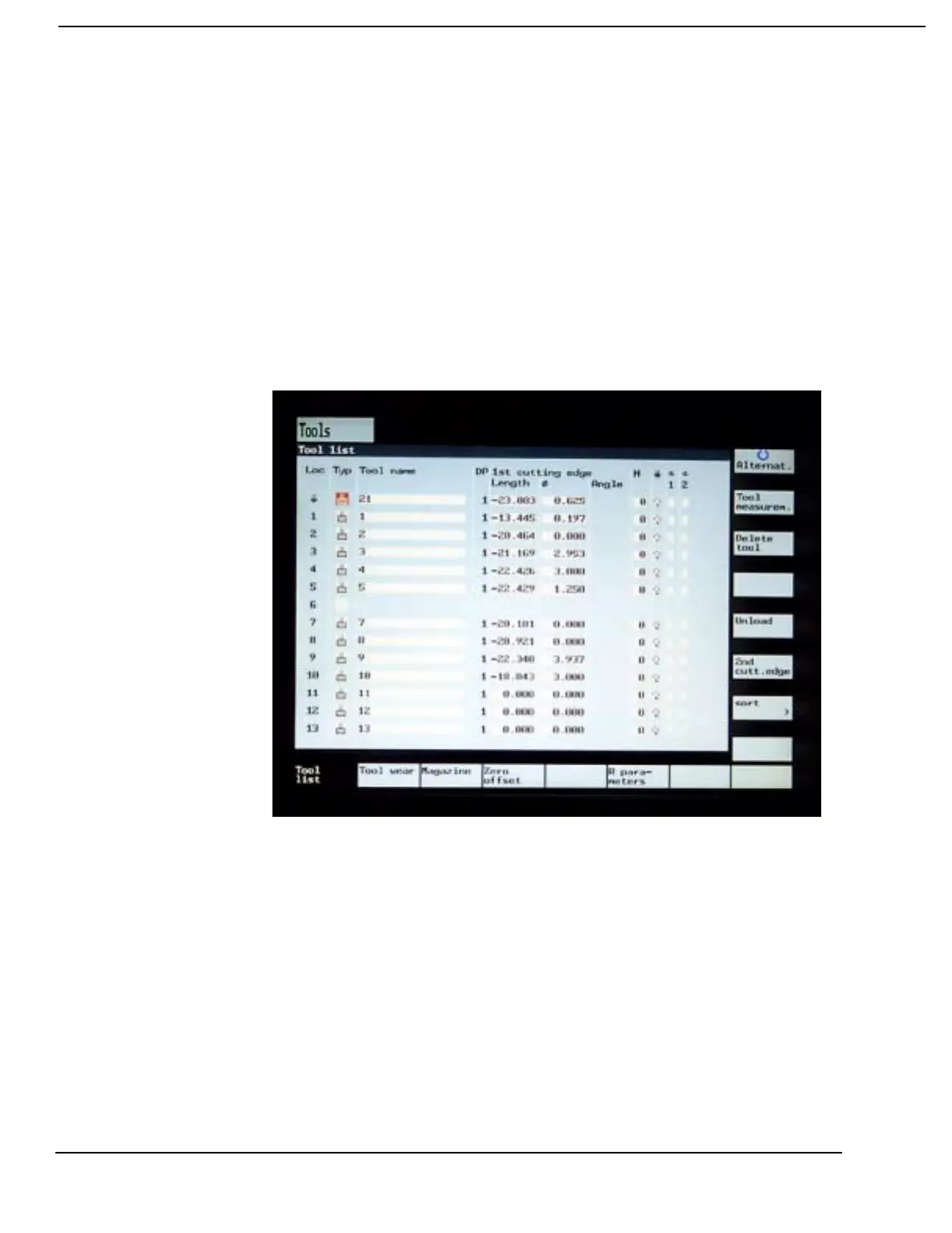

2) Press the Tool List soft key.
3) Use the cursor keypad arrows, cursor down and over to
highlight the diameter (Ø symbol) for the desired tool.
4) Type in the diameter amount, then press the INPUT hard key.
