October 2000 Fadal/Sinumerik 810D CNC: Jog Modes Of Operation 23
SIEMENS CONTROL
Operator Manual
Fadal
Note: If the feed rate override is at 0% then the motion
will stop when using the manual pulse generator
and a message is generated.

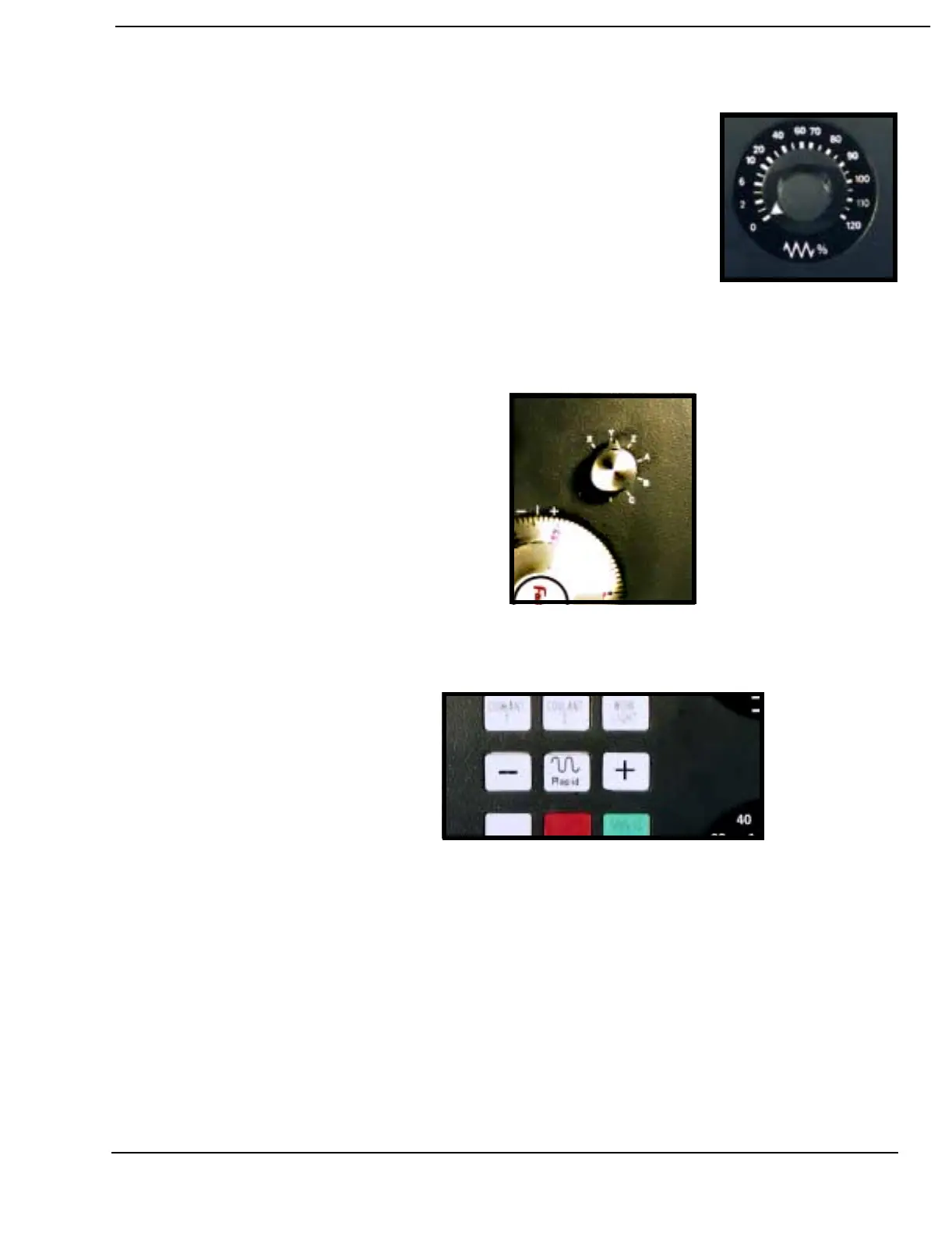

Using the JOG Keys in INCREMENTAL JOG mode:
1) Select the axis to be jogged with the axis switch located to the
upper right of the manual pulse generator.
2) Select the direction to jog the tool using the “+” or “–” hard key
buttons.
3) In Incremental Jog mode each time the “+” or “-” hard key
button is pressed the tool will move in the direction and
increment specified.
Note: If the feed rate override is set to 0%, no motion will occur when using the
“+” or “-” jog buttons and a message is generated.
