Fagor DDS - Page 109

Drive modules
DRIVE MODULES
Modular drives
3.
109
DDS
HARDWARE
Ref.1310

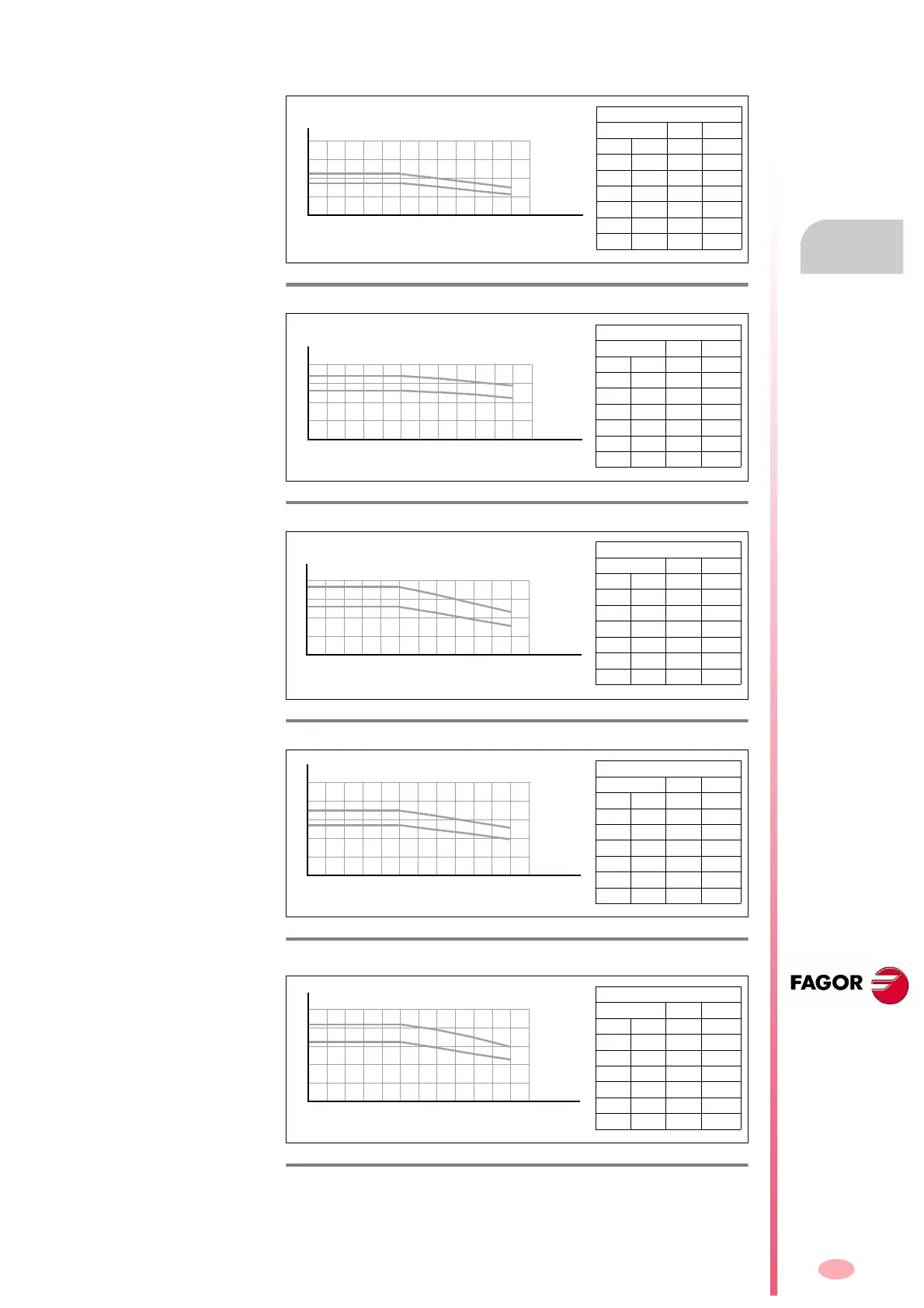

 For a switching frequency fc = 8 kHz
F. H3/35
Current derating on “SPD 1.15” drives for fc = 8 kHz.
F. H3/36
Current derating on “SPD 1.25” drives for fc = 8 kHz.
F. H3/37
Current derating on “SPD 1.35” drives for fc = 8 kHz.
F. H3/38
Current derating on “SPD 2.50” drives for fc = 8 kHz.
F. H3/39
Current derating on “SPD 2.75” drives for fc = 8 kHz.
35 40 55 60
10
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
5
15
In
20
IS6-40
0
SPD 1.15
T ambient In IS6-40
° C °F Arms Arms
35 95 8.5 11.1
40 104 8.5 11.1
45 113 8.5 11.1
50 122 7.6 9.9
55 131 6.6 8.6
60 140 5.6 7.3
35 40 55 60
10
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
5
15
In
20
IS6-40
0
SPD 1.25
T ambient In IS6-40
° C °F Arms Arms
35 95 13.0 16.9
40 104 13.0 16.9
45 113 13.0 16.9
50 122 12.6 16.4
55 131 11.8 15.3
60 140 10.9 14.2
35 40 55 60
15
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
20
In
25
10
IS6-40
5
SPD 1.35
T ambient In IS6-40
° C °F Arms Arms
35 95 18.0 23.4
40 104 18.0 23.4
45 113 18.0 23.4
50 122 16.3 21.2
55 131 14.5 18.9
60 140 12.7 16.6
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
30
In
40
50
10
0
IS6-40
SPD 2.50
T ambient In IS6-40
° C °F Arms Arms
35 95 27.0 35.1
40 104 27.0 35.1
45 113 27.0 35.1
50 122 24.6 32.0
55 131 22.1 28.8
60 140 19.6 25.4
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
30
In
40
10
IS6-40
0
50
SPD 2.75
T ambient In IS6-40
° C °F Arms Arms
35 95 32.0 41.6
40 104 32.0 41.6
45 113 32.0 41.6
50 122 28.9 37.7
55 131 25.7 33.5
60 140 22.5 29.2
