Drive modules
188
3.
DRIVE MODULES
Modular drives
110
DDS
HARDWARE
Ref.1310

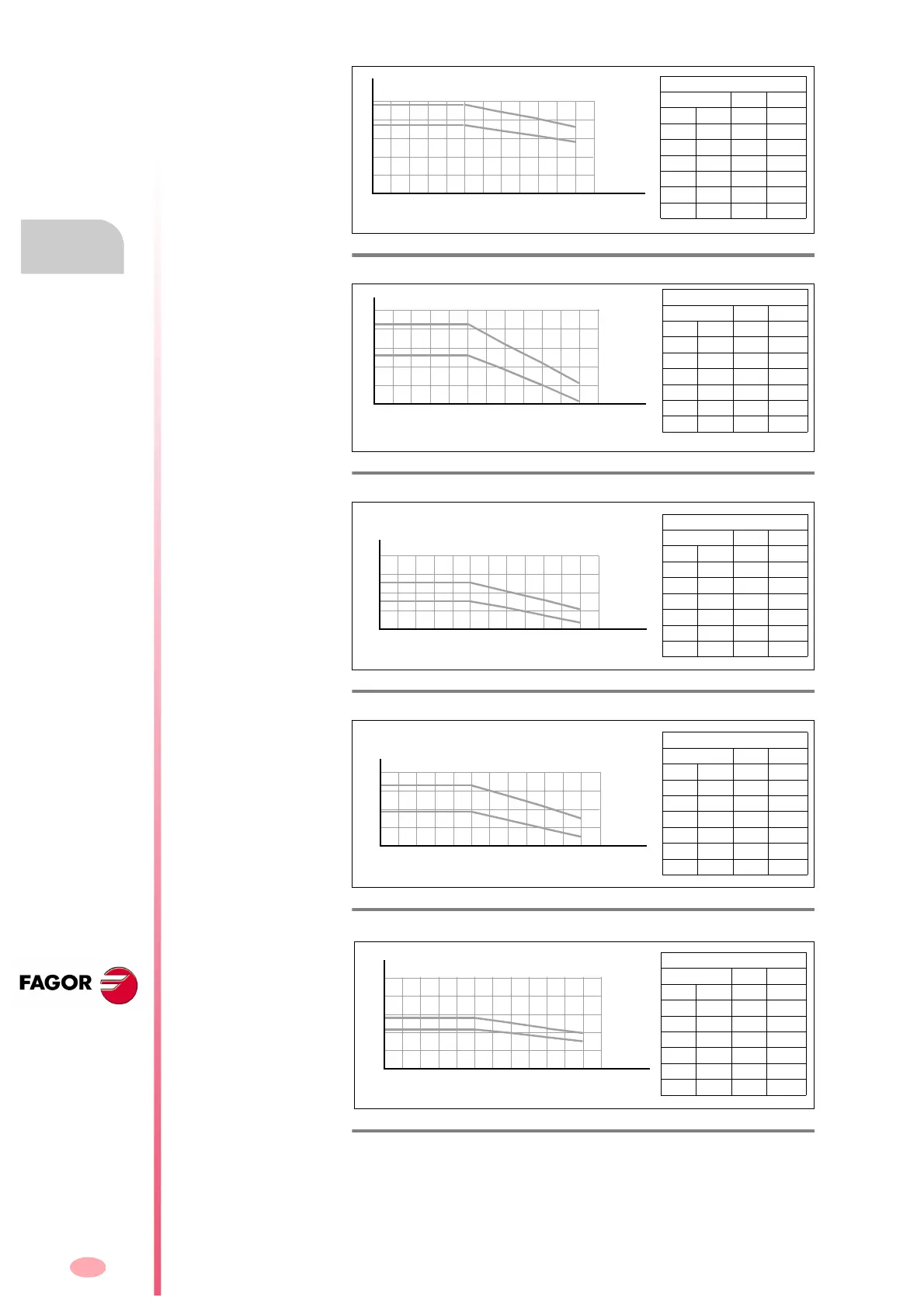

F. H3/40
Current derating on “SPD 2.85” drives for fc = 8 kHz.
F. H3/41
Current derating on “SPD 3.100” drives for fc = 8 kHz.
F. H3/42
Current derating on “SPD 3.150” drives for fc = 8 kHz.
F. H3/43
Current derating on “SPD 3.200” drives for fc = 8 kHz.
F. H3/44
Current derating on “SPD 3.250” drives for fc = 8 kHz.
35 40 55 60
20
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
30
In
40
10
IS6-40
0
50
SPD 2.85
T ambient In IS6-40
° C °F Arms Arms
35 95 37.0 48.1
40 104 37.0 48.1
45 113 37.0 48.1
50 122 34.0 44.2
55 131 31.0 40.3
60 140 27.9 36.3
35 40 55 60
50
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
60
In
70
40
80
IS6-40
30
SPD 3.100
T ambient In IS6-40
° C °F Arms Arms
35 95 56.0 72.8
40 104 56.0 72.8
45 113 56.0 72.8
50 122 48.2 62.7
55 131 40.0 52.1
60 140 31.5 40.9
35 40 55 60
80
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
100
In
120
60
IS6-40
40
SPD 3.150
T ambient In IS6-40
° C °F Arms Arms
35 95 70.0 91.0
40 104 70.0 91.0
45 113 70.0 91.0
50 122 62.8 81.6
55 131 55.3 71.9
60 140 47.4 61.7
35 40 55 60
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
120
In
140
80
IS6-40
60
100
SPD 3.200
T ambient In IS6-40
° C °F Arms Arms
35 95 97.0 126.1
40 104 97.0 126.1
45 113 97.0 126.1
50 122 88.1 114.6
55 131 79.0 102.7
60 140 69.5 90.4
35 40 55 60
100
I (Arms)
Tambient
°C (°F)
45 50
(95)
(104)
(113) (122) (131) (140)
150
200
50
I
S6-40
250
0
In
SPD 3.250
T ambient In IS6-40
° C °F Arms Arms
35 95 108.0 140.4
40 104 108.0 140.4
45 113 108.0 140.4
50 122 97.2 126.3
55 131 85.9 111.7
60 140 74.3 96.6
