Drive modules
DRIVE MODULES
Modular drives
3.
125
DDS
HARDWARE
Ref.1310

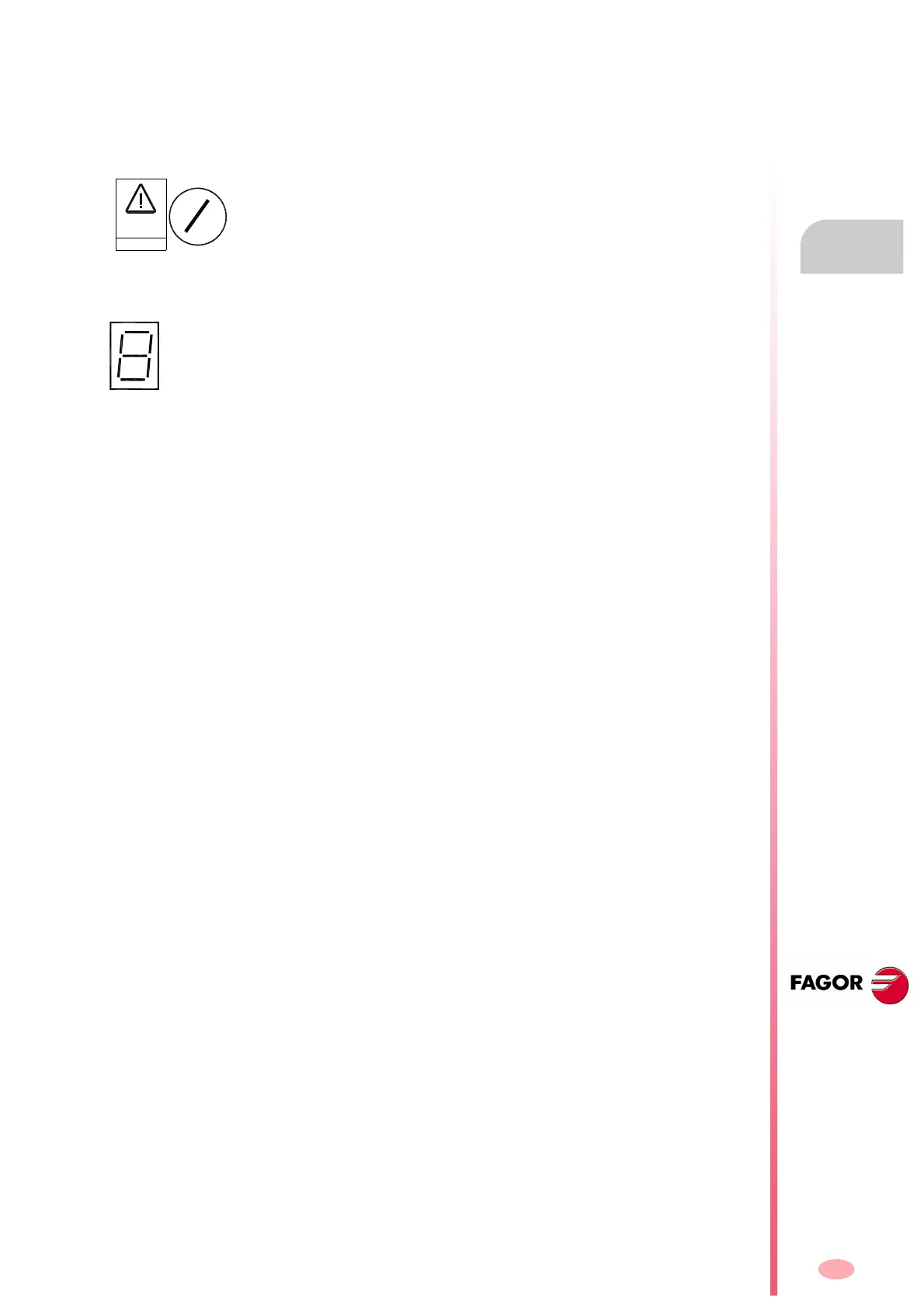

Other elements
Besides the various connectors, the front panel of the drive has other ele-
ments that are mentioned next.
Fuse
The fuse on the front panel of each modular drive is a “2.5 A (F)/250 V
(fast)” fuse and it is used to protect the internal control circuits.
Status display
The seven-segment status display shows the information on the drive
module status or the corresponding code when an error or warning oc-
curs - see the section “turning a drive on” at the end of this chapter -
. It can also display the transmission speed when setting it both with SER-
COS or CAN interface.
