Drive modules
DRIVE MODULES
Compact drives
3.
167
DDS
HARDWARE
Ref.1310
X1 connector
Compact drives internally generate the 24 V DC necessary for the inter-
nal circuits.
In regular operation, this voltage is obtained from the power bus and from
mains when starting up the system.
It is a three-pin connector used to supply from mains the necessary start-
up energy.
The start-up process needs an internal module test prior to supplying power
to the upper terminals. Therefore, bear in mind the following warning:
Current from mains phases to these lines L1 and L2 must be obtained
from a point before the contactor providing the three - phase power to the
upper connectors of the compact drive.
The following table shows the values for gap, tightening torque (wire en-
try holes) and other data regarding the screw-on terminals of the plug-in
connector for X1 according to drive model:

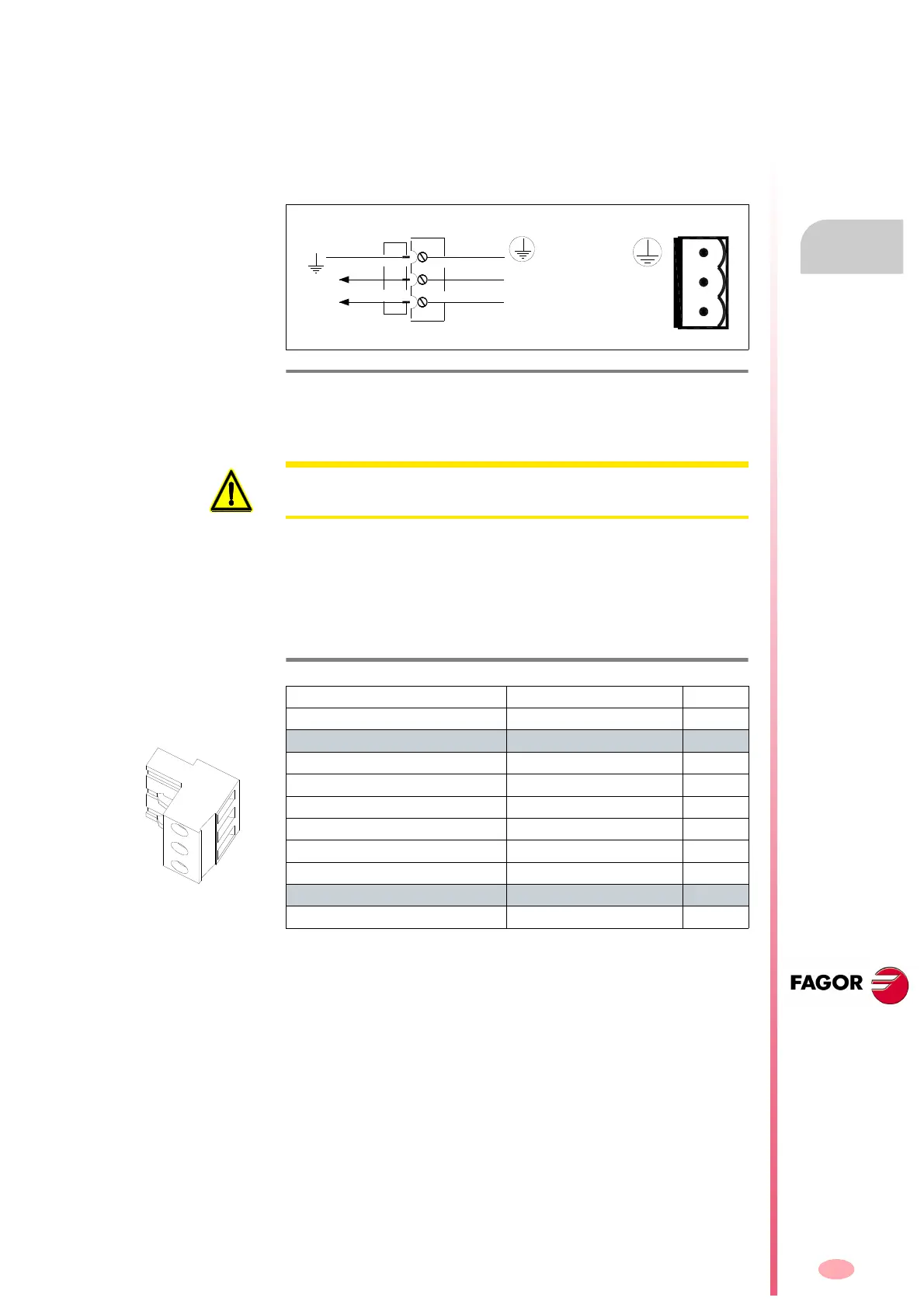

F. H3/117
Connector X1. 24 V DC.
L1
L2
400-460 VAC
L1
L2
WARNING. This internal power supply must be powered through connec-
tor X1 before carrying out any electrical maneuver.
T. H3/22 Technical data of the aerial plug-in connector for X1.
ACD/SCD/CMC SCD
1.08/1.15/1.25/2.35/2.50 2.75
Connector data
Nr of poles 3 3
Gap (mm) 7.62 7.62
Min/max tightening torque (Nm) 0.5/0.6 0.5/0.6
Screw thread M3 M3
Min./max. section (mm²) 0.2/2.5 0.2/2.5
Rated current In
(A) 12 12
Wire data
Length to strip (mm) 7 7
x1
