Installation
312
8.
INSTALLATION
Location
268
DDS
HARDWARE
Ref.1310
For further detail, see next figure:
Climatic considerations
The temperature inside the electrical cabinet containing the servo drive
system must not exceed 55 °C (131 °F).
The modules generate heat and when trying to decide whether the electri-
cal cabinet containing the DDS system needs external cooling or not, one
must know the power dissipated by each one of its modules.
See next table
to know the power dissipated by each one of them.
MANDATORY. When integrating the unit into the electrical cabinet, make
sure to leave a gap of at least 10 cm (3.93 inches) between it and the top,
bottom and front panel of the cabinet or any other obstacle that obstructs
air flow for easier heat evacuation.

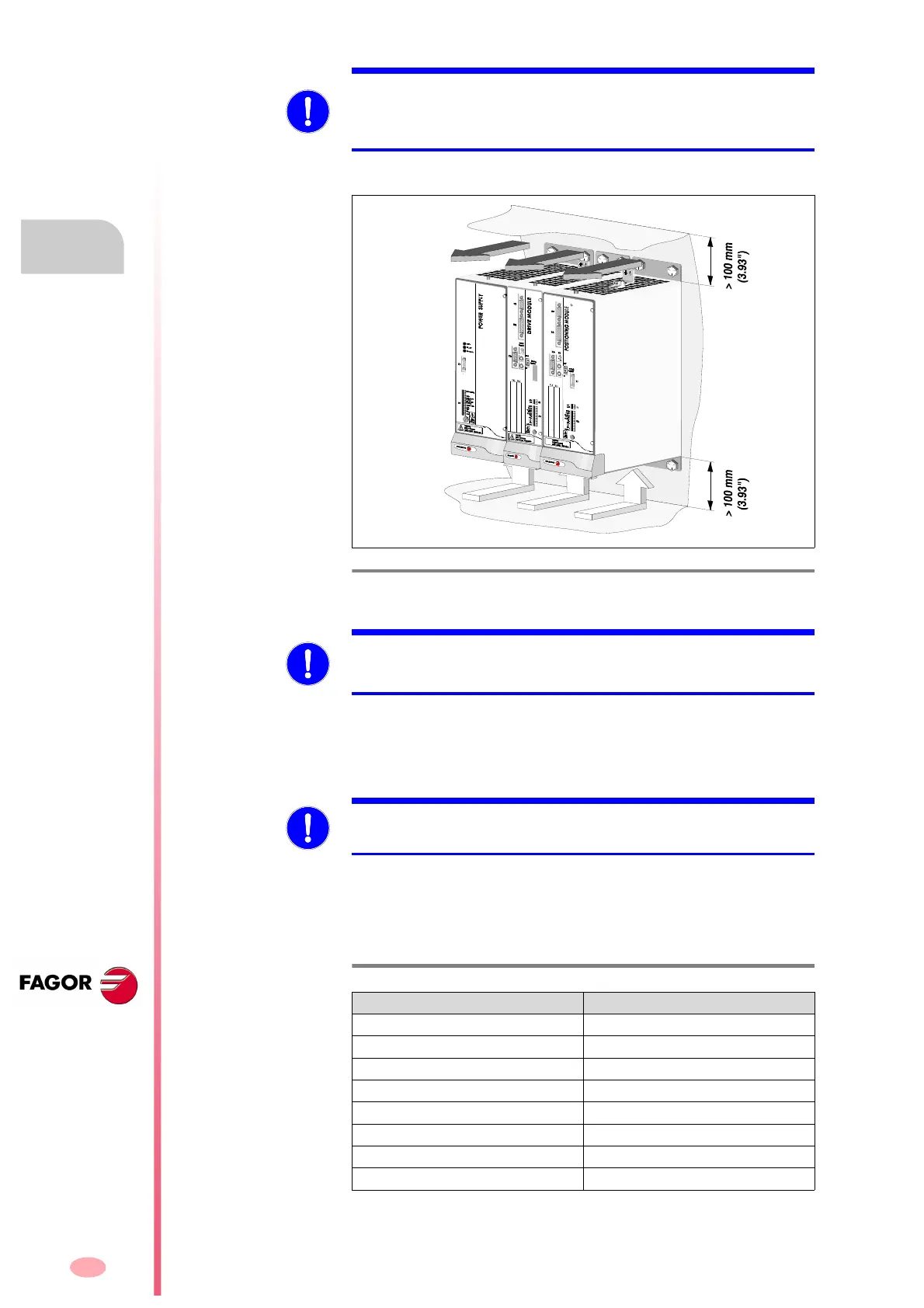

F. H8/1
Top and bottom clearance when installing the DDS system for easier heat
evacuation.
MANDATORY. Mount the modular drive of greatest power next to the
power supply module and use the same criteria for the rest of the drive
modules.
MANDATORY. Never install the DDS system next to a heat source.
T. H8/1 Power dissipated by the modules of the DDS system.
Power supply module Power dissipated at max. load.
PS-65A 275 W
PS-25B4 180 W
XPS-25 180 W
XPS-65 350 W
RPS-80 1 000 W
RPS-75 1 000 W
RPS-45 700 W
RPS-20 500 W
