DIMENSIONS
Compact drive modules
358
DDS
HARDWARE
Ref.1310
11.4 Compact drive modules
F. H 11 / 4

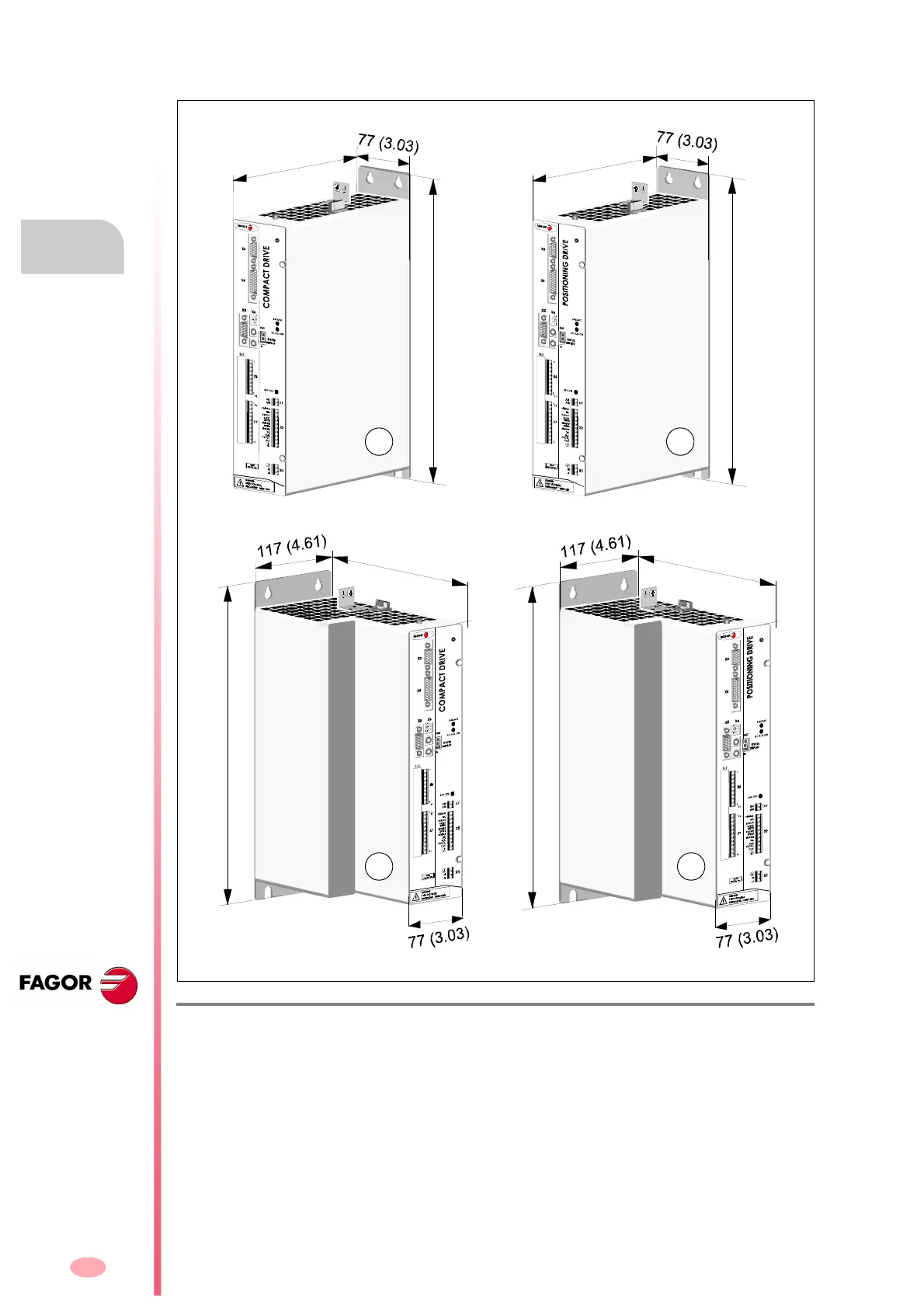

Dimensions of the compact drives.
A. ACD/SCD 1., B. CMC 1., C. ACD/SCD 2., D. CMC 2..
