Dimensions
DIMENSIONS
Mains filter
11.
359
DDS
HARDWARE
Ref.1310

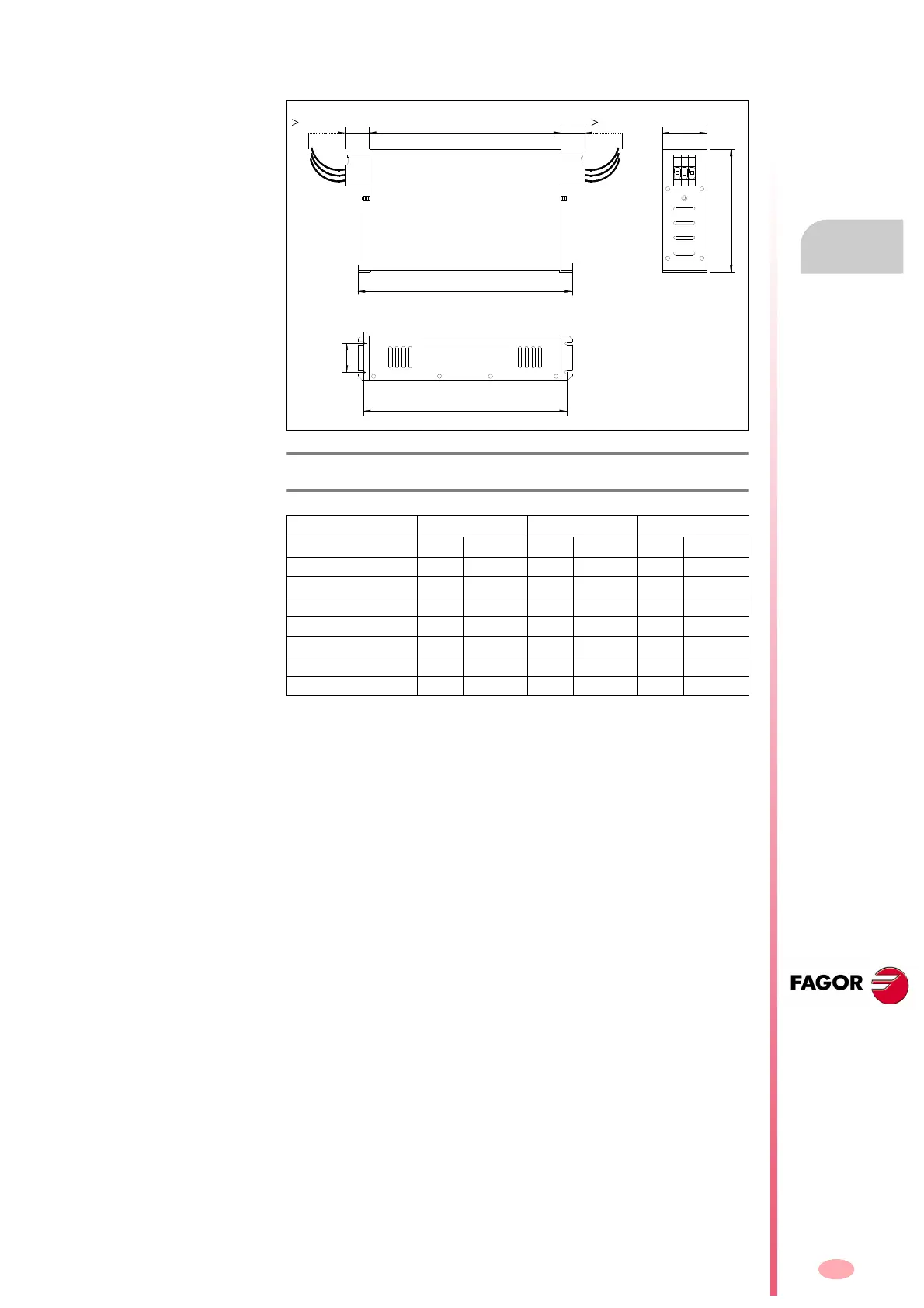

11.5 Mains filter
F. H11 / 5
MAINS FILTER A.
T. H11 / 1 Dimensions.
MAINS FILTER 42A 130A 180A
Units mm inches mm inches mm inches
L 330 12.99 440 17.32 440 17.32
L-1 300 11.81 400 15.74 400 15.74
C 15 0.59 45 1.77 45 1.77
W 70 2.75 110 4.33 110 4.33
H 185 7.28 240 9.44 240 9.44
X 314 12.36 414 16.29 414 16.29
Y 45 1.77 80 3.14 80 3.14
X
W
H
Y
MAINS FILTER 130A
PS-65A, XPS-65, RPS-45, RPS-75
L
L-1
C
50 mm
C
50 mm
MAINS FILTER 42A
PS-25B4, XPS-25, RPS-20
ACD/SCD/CMC 1.xx,
ACD/SCD/CMC 2.xx
MAINS FILTER 180A
RPS-80
