Dimensions
364
11.
DIMENSIONS
XPS chokes
360
DDS
HARDWARE
Ref.1310

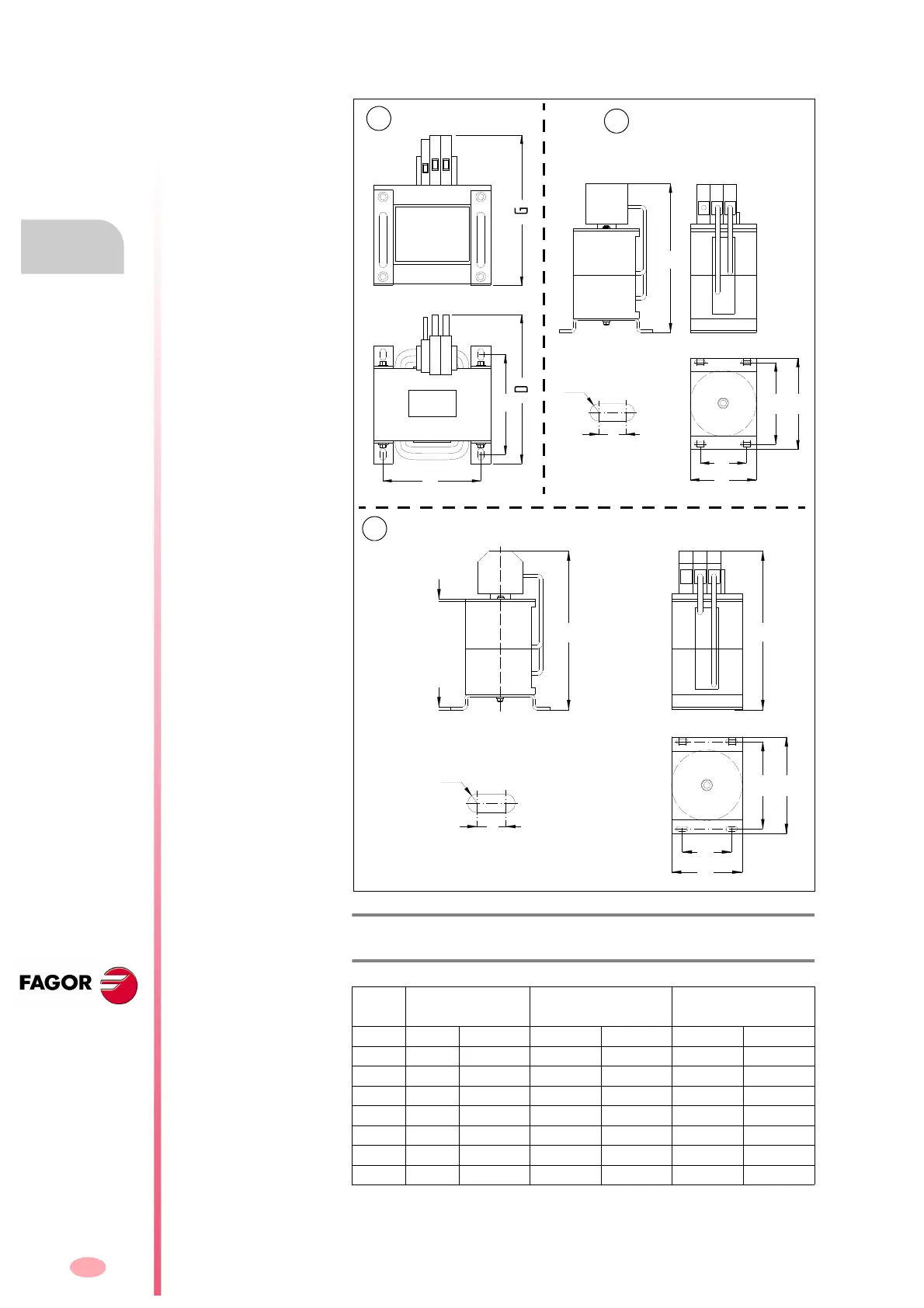

11.6 XPS chokes
F. H 11 /6
A.
PS-25 CHOKE. B. XPS-65 CHOKE. C. XPS-65-A CHOKE.
T. H 11 /2 Dimensions.
CHOKE XPS-25 CHOKE XPS-65
(DISCONTINUED)
CHOKE XPS-65-A
(NEW)
Units mm inches mm inches mm inches
A - - 100 3.93 120 4.72
B 1054.13 752.95 853.34
C 115 4.52 136 5.35 152 5.98
D 180 7.08 150 5.90 170 6.69
E 8 0.31 8 0.31 9 0.35
F 10 0.39 15 0.59 9 0.35
G 165 6.49 228 8.97 266 10.47
B
C
G
B
A
C
D
Ø
E
F
A
CHOKE XPS-25
CHOKE XPS-65
(DISCONTINUED)
B
G
4 4
G
B
A
C
D
BASE AREA
Ø
E
F
CHOKE XPS-65-A
C
