Fagor DDS User Manual

Dimensions
DIMENSIONS
RPS chokes
11.
361
DDS
HARDWARE
Ref.1310

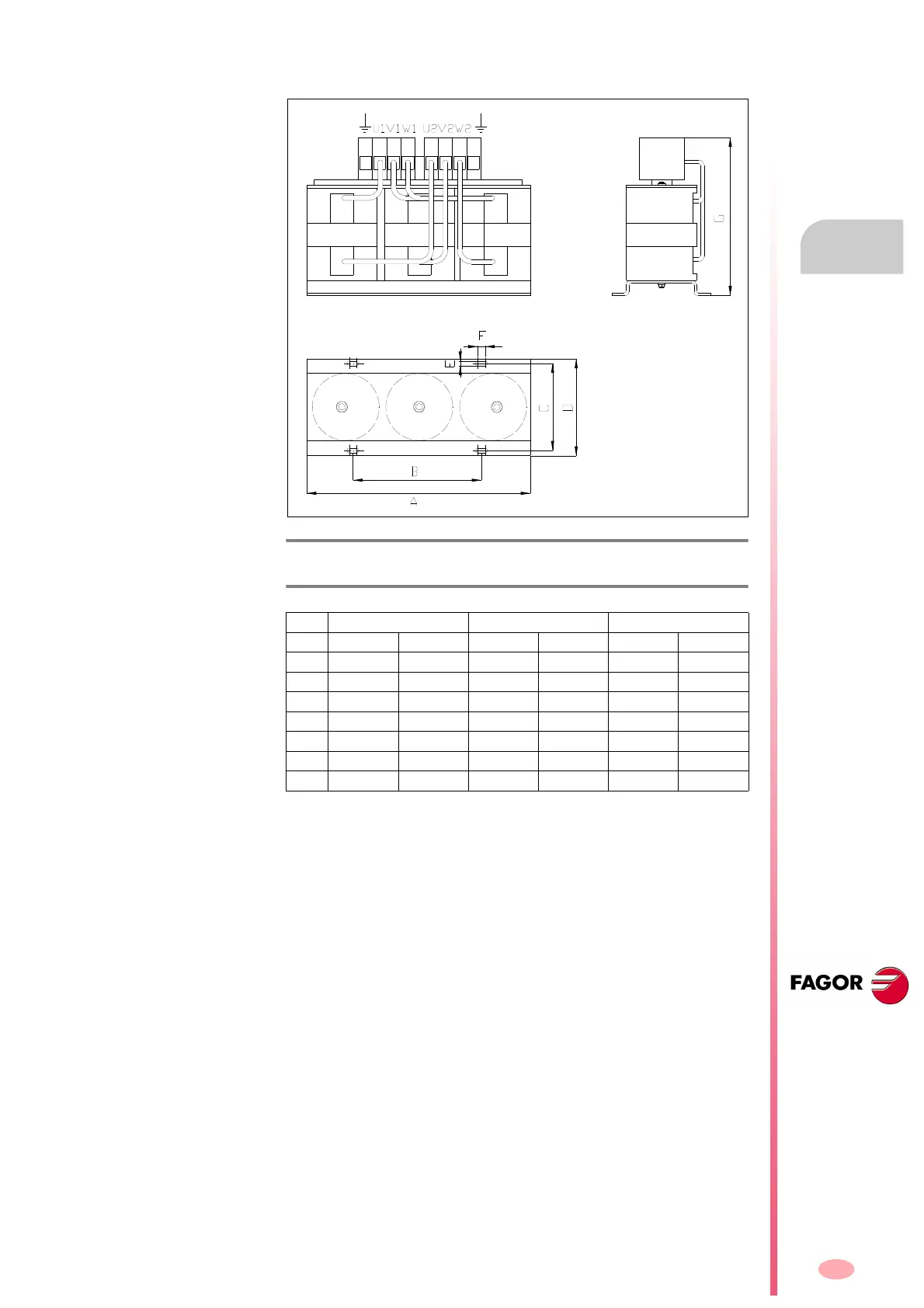

11.7 RPS chokes
F. H11 / 7
Chokes RPS-75-3, RPS-45 and RPS-20.
T. H11 / 3 Dimensions.
CHOKE RPS-20 CHOKE RPS-45 RPS-75-3 CHOKE
mm inches mm inches mm inches
A
330 12.99 330 12.99 380 14.96
B
175 6.88 175 6.88 235 9.25
C
136 5.35 136 5.35 152 5.98
D
150 5.90 150 5.90 170 6.69
E
8 0.31 8 0.31 9 0.35
F
15 0.59 15 0.59 18 0.70
G
162 6.37 228 8.97 271 10.66
RPS-75-3 CHOKE
RPS-45 CHOKE
RPS-20 CHOKE
