DIMENSIONS
External Ballast resistors with external thermostat
362
DDS
HARDWARE
Ref.1310
11.8 External Ballast resistors with external thermostat
F. H 11 /8

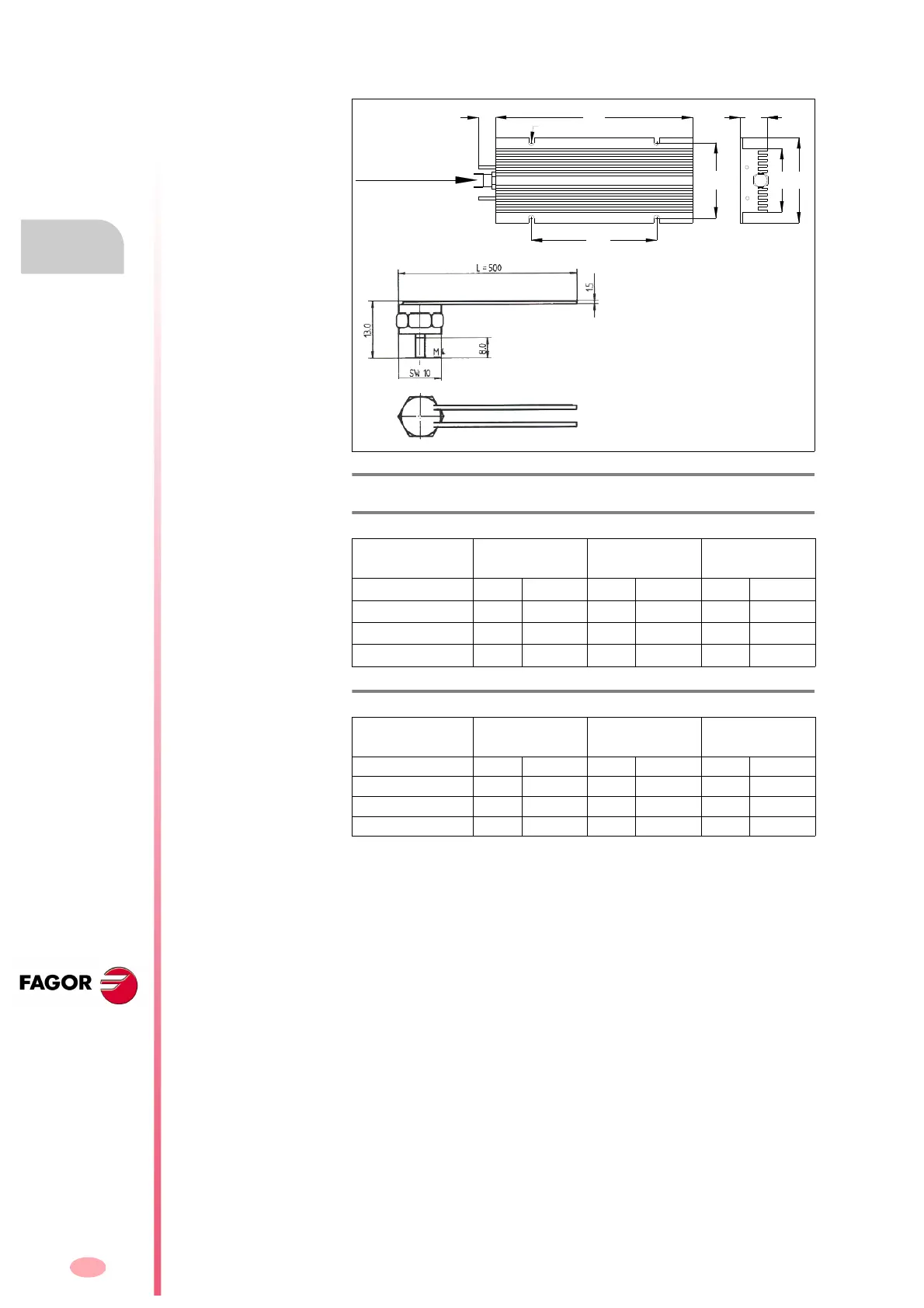

External Ballast resistors with external thermostat.
T. H 11 /4 Dimensions.
With external
thermostat
ER+TH-43/350 ER+TH-24/750 ER+TH-24/1100
Units mm inches mm inches mm inches
L 110 4.33 220 8.66 320 12.59
ln 60 2.36 140 5.51 240 9.44
lf 300 11.81 300 11.81 300 11.81
T. H 11 /5 Dimensions.
With external
thermostat
ER+TH-18/1100
Units mm inches
L 320 12.59
ln 240 9.44
lf 300 11.81
THERMO-SWITCH 160°C
Ø6.2x4
Llf
FAST ON 6.3 mm
ln
80
÷
84
30
71 95
