Dimensions
DIMENSIONS
External Ballast resistors with internal thermostat
11.
363
DDS
HARDWARE
Ref.1310

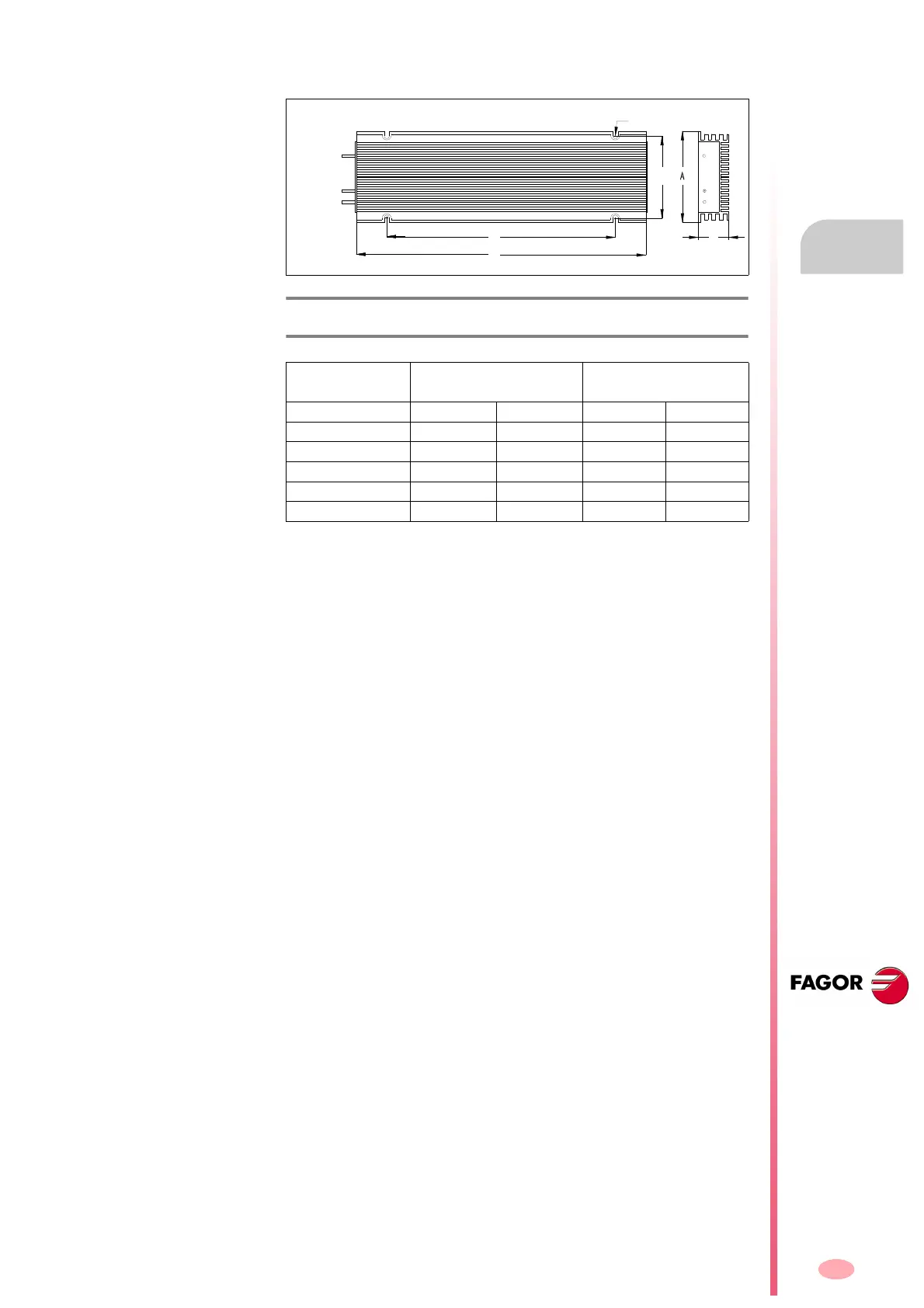

11.9 External Ballast resistors with internal thermostat
F. H11 / 9
External Ballast resistor with internal thermostat.
T. H11 / 6 Dimensions.
With internal
thermostat
ER+TH-18/1800 ER+TH-18/2200
Units mm inches mm inches
A 120 4.72 190 7.48
B 40 1.57 67 2.63
L 380 14.96 380 14.96
I 107112 4.214.40 177182 6.967.16
P 300 11.81 300 11.81
THERMOSTAT
2.5 mm²
Ø6.5x11
P
I
OUT CABLES
L
2.5 mm²
B
