On the lift phone’s front plate, there are two pictograms and two single colored LED (yellow
and green), which are normally turned off. The left LED becomes yellow when an alarm call is
in progress and the right LED becomes green when the alarm has been acknowledged by the
receiver and a speech connection is established. The LED’s are also used to indicate pro-
gramming mode. The LED’s can be programmed to display other light sequences, see sec-
tion Programming for more information.

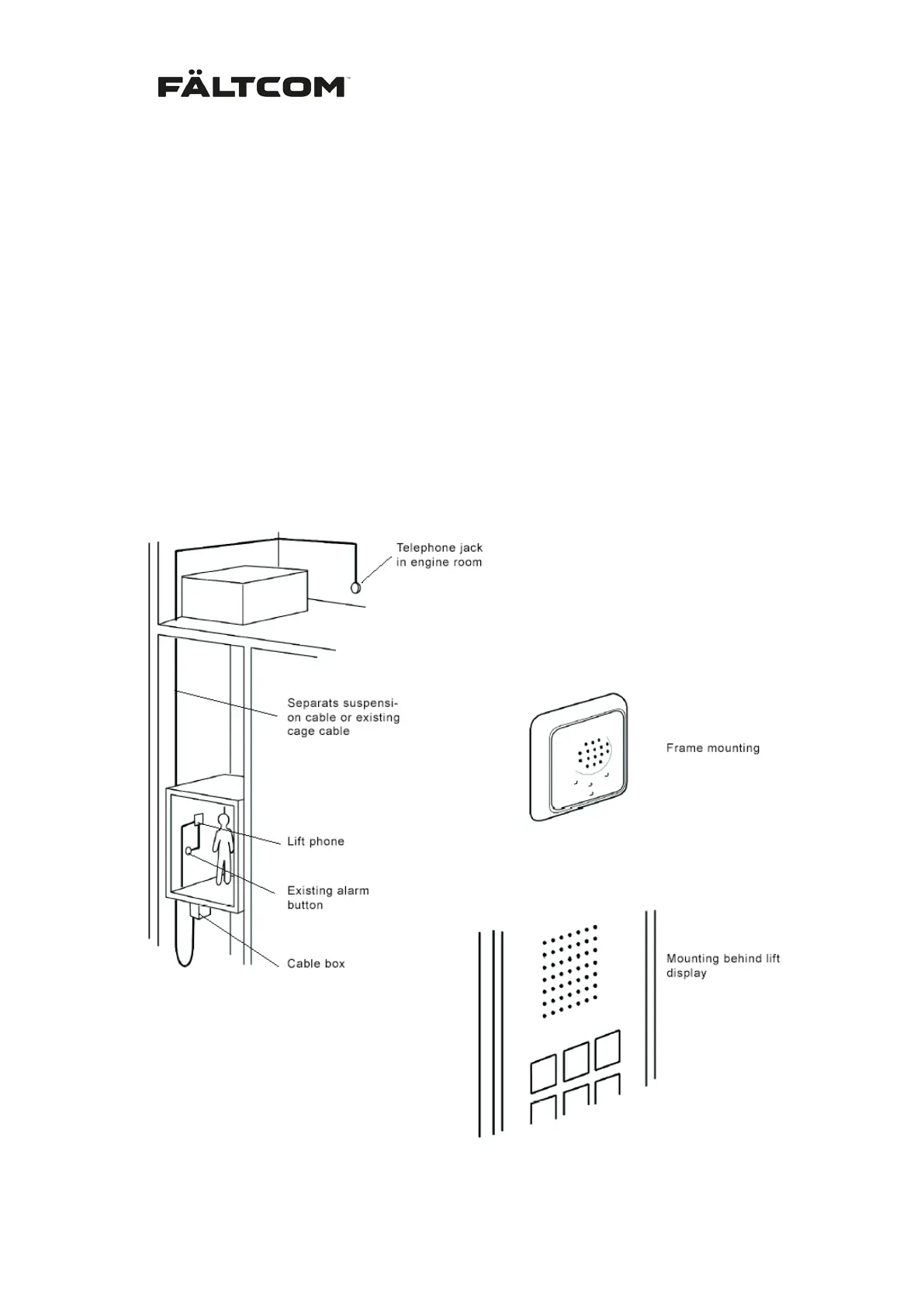

The lift phone can be mounted behind the car operating panel (COP), on the panel with a
small front plate and frame or with a larger front plate and frame with an integrated alarm but-
ton.
The connection of the lift phone requires one two-wire cable to the alarm button in the lift and
one two-wire cable for connecting a standard analogue telephone line. It is possible to use a
separate suspension cable of a round cable or flat cable type. As an alternative two unused
wires in the existing car cable can be used. It is very important that the cable is fastened
properly. For the separate suspension cable there is a special mounting kit, which includes
the necessary mounting parts.
