MPC-6000 / MPC-7000 / RND-2 INSTALLATION, OPERATION AND MAINTENANCE MANUAL
48

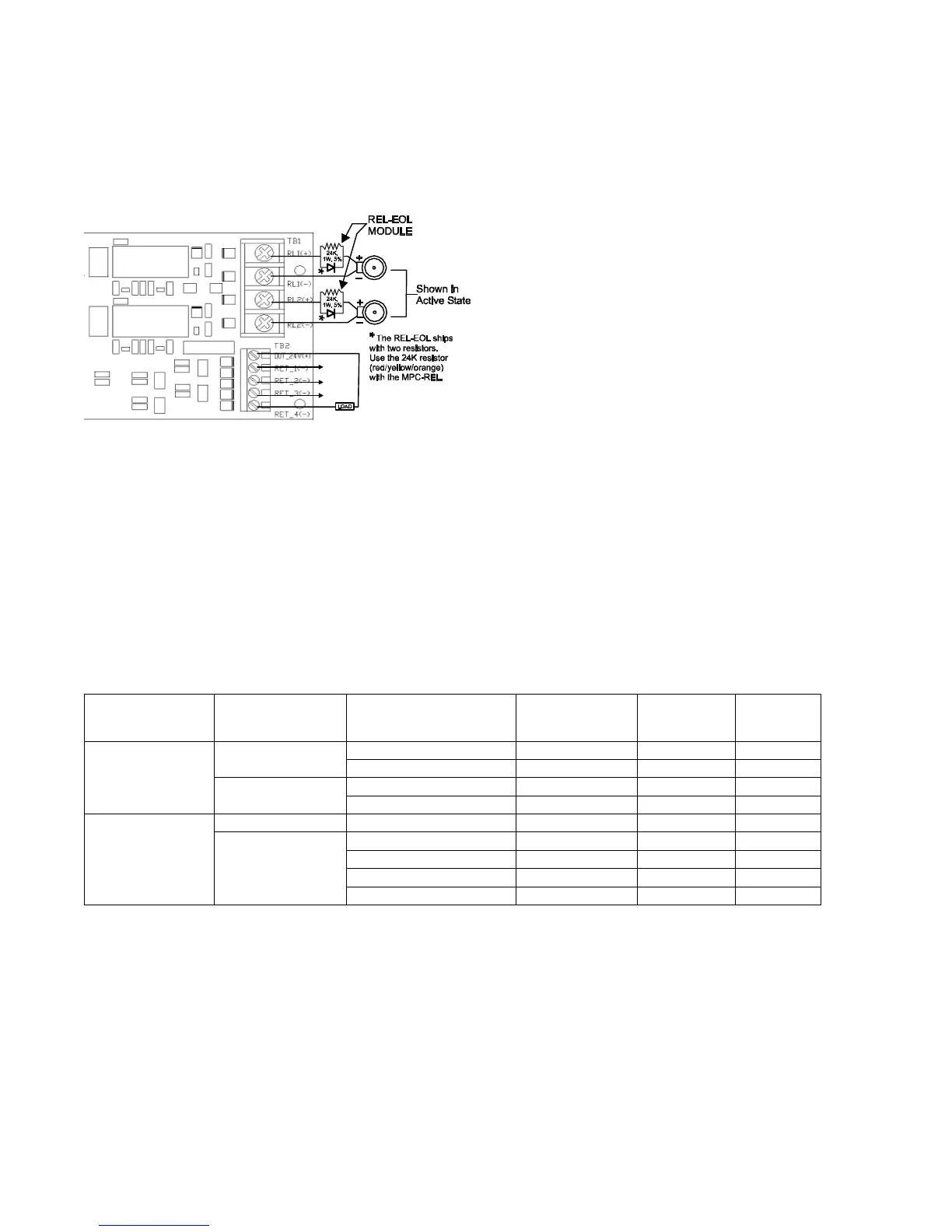

Releasing Circuit Wiring (Use only if MPC-REL is installed)
The releasing circuits are connected to TB1 of the MPC-REL module. Two individual
Releasing Circuits are provided along with 4 programmable open collector circuits that are
connected to TB2.
Compatible Solenoids
APPLICATION MANUFACTURER
SOLENOID MODEL OR
PART NUMBER
NUMBER OF
SOLENOIDS IN
SERIES
MAX. # OF
SOLENOIDS
PER CARD
APPROVAL
R8210A107 One 24 VDC 2 UL
ASCO
T8210A107 One 24 VDC 2 UL
7321GBN99N00N0C111C2 One 24 VDC 2 UL
NFPA 13
(Pre-Action Deluge)
SKINNER
LV2LBX25 One 24 VDC 2 UL
ASCO HV21832-6 Four 6 VDC 8 UL
P/N 2823A-2NB-A4F5 Two 12 VDC 4 UL
P/N 2823A-2NB-A4F6 One 24 VDC 2 UL
P/N 2823A-2NB-A4F4 Four 6 VDC 8 UL
NFPA 2001
(HFC-227ea) SNAPTITE
P/N 932594B One 24 VDC 2 UL
Releasing Rating:
Power Limited
Alarm Voltage: 24VDC, Filtered
Max. Alarm Current: 1.5A/Releasing circuit
For Special Application Only
Open Collector Rating:
Non-power Limited
Alarm Voltage: 24VDC, Filtered
Max. Alarm Current: 200mA/Circuit
Notes:
1. All wiring must be in accordance with Article 760 of
NEC or local building codes.
2. Polarity shown in active state.
3. For Compatible Solenoids refer to table below.
4. The maximum cumulative output current of the MPC-
REL must not exceed 3A.
5. REL-EOL module (P/N 500-696359) is required for
supervision of open and short circuits on the releasing
circuit. REL-EOL must be in the same enclosure or
close nippled to the last solenoid in the loop.
6. The MPC-REL requires an RPT-1 transformer.
7. A mechanical manual release must be employed to
meet NFPA 2001 requirements.
8. Releasing circuit maximum voltage line drop = 0.6V.
9. Wiring shown complies with UL864 9
th
Edition
requirements.
Note 1:
Single 12VDC and 6VDC solenoids are not supported. If 6VDC solenoids are used, four solenoids in series must be used.
If 12VDC solenoids are used, two solenoids in series must be used.
Note 2:
It is not permitted to mix one 12 VDC solenoid with any combination of 6VDC solenoids.
