MPC-6000 / MPC-7000 / RND-2 INSTALLATION, OPERATION AND MAINTENANCE MANUAL
50
Serial Remote Device Wiring Overview

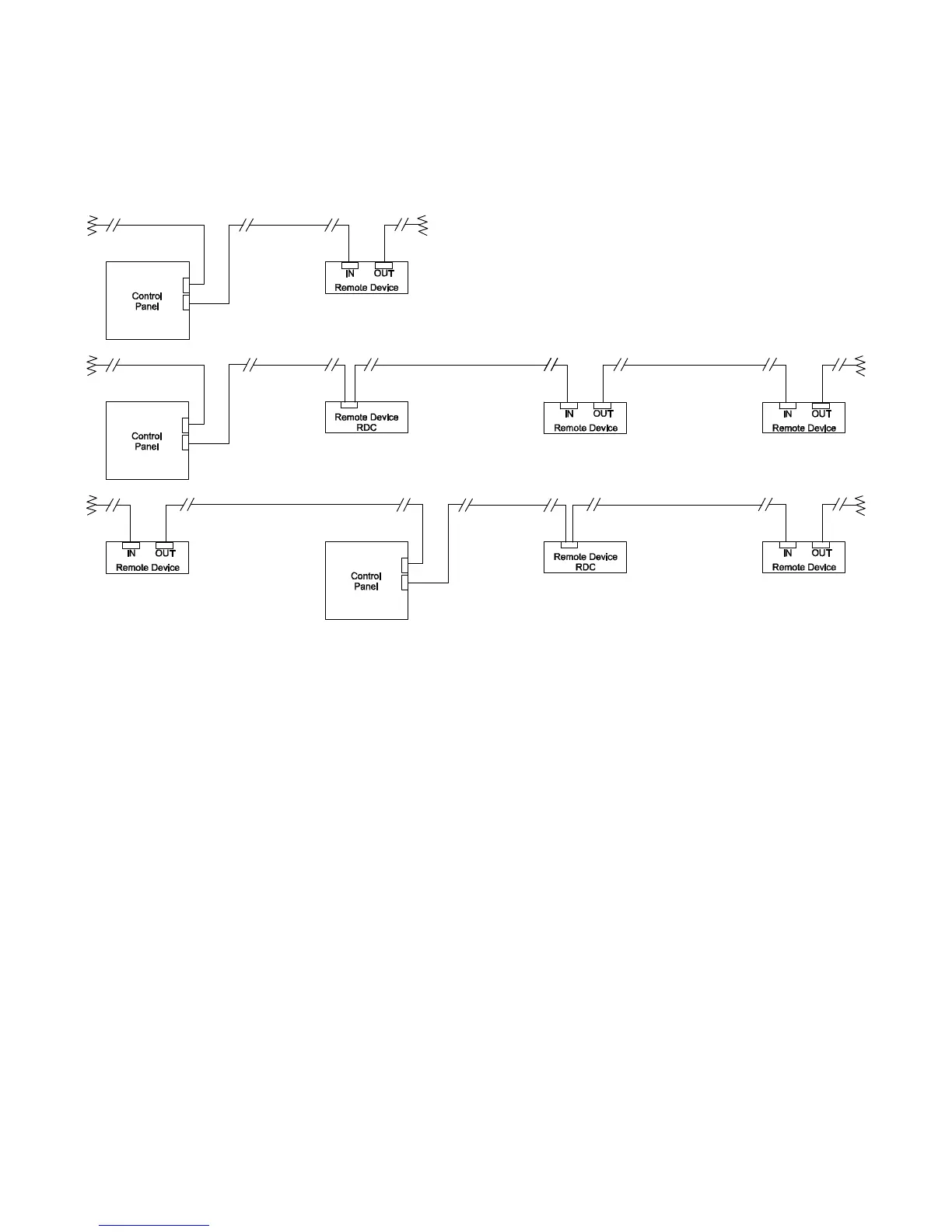

When connecting devices on the Serial Interface Circuit, the data wires must be daisy chained
and with no T-taps to preserve the integrity of the data. Each end (two places) must be
terminated with a 120 ohm E.O.L. Resistor Assembly (P/N 140-050008-1). The following
diagrams show the proper wiring.
