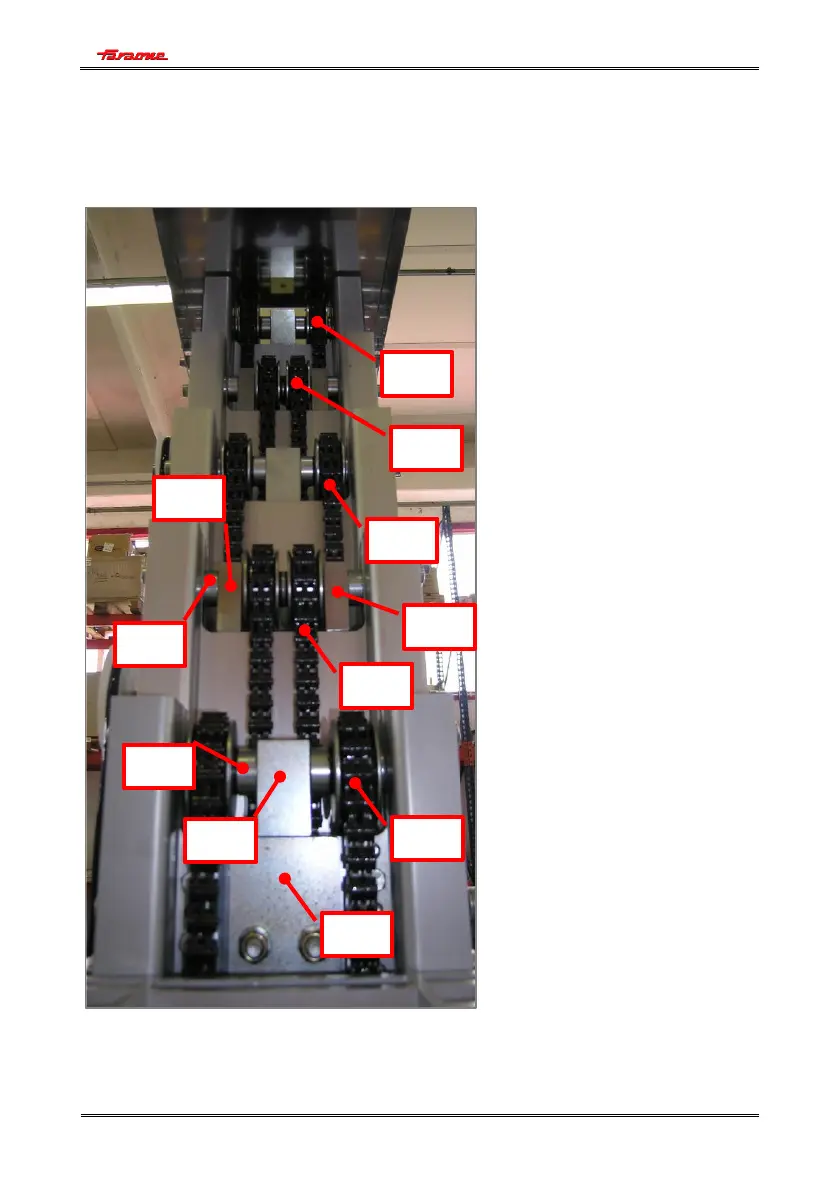

DETAIL OF LIFTING CHAINS
1) CHAIN PAIR 1st EXTENSION
2) CHAIN PAIR 2nd EXTENSION
3) CHAIN PAIR 3rd EXTENSION
4) CHAIN PAIR 4th EXTENSION
5) CHAIN PAIR 5th EXTENSION
6) CENTRAL SUPPORT
7) PULLEY SPACER
8) PULLEY SPACER
9) SIDE SUPPORT
10) SIDE SUPPORT
11) SUPPORT COUPLING
PLATE
11
1
2
10
3
4
5
6
7
8
9
