ALYA INSTALLATION AND USER’S MANUAL - EN
Edition 2.0 Sept 2018 Pag. 12 di 32

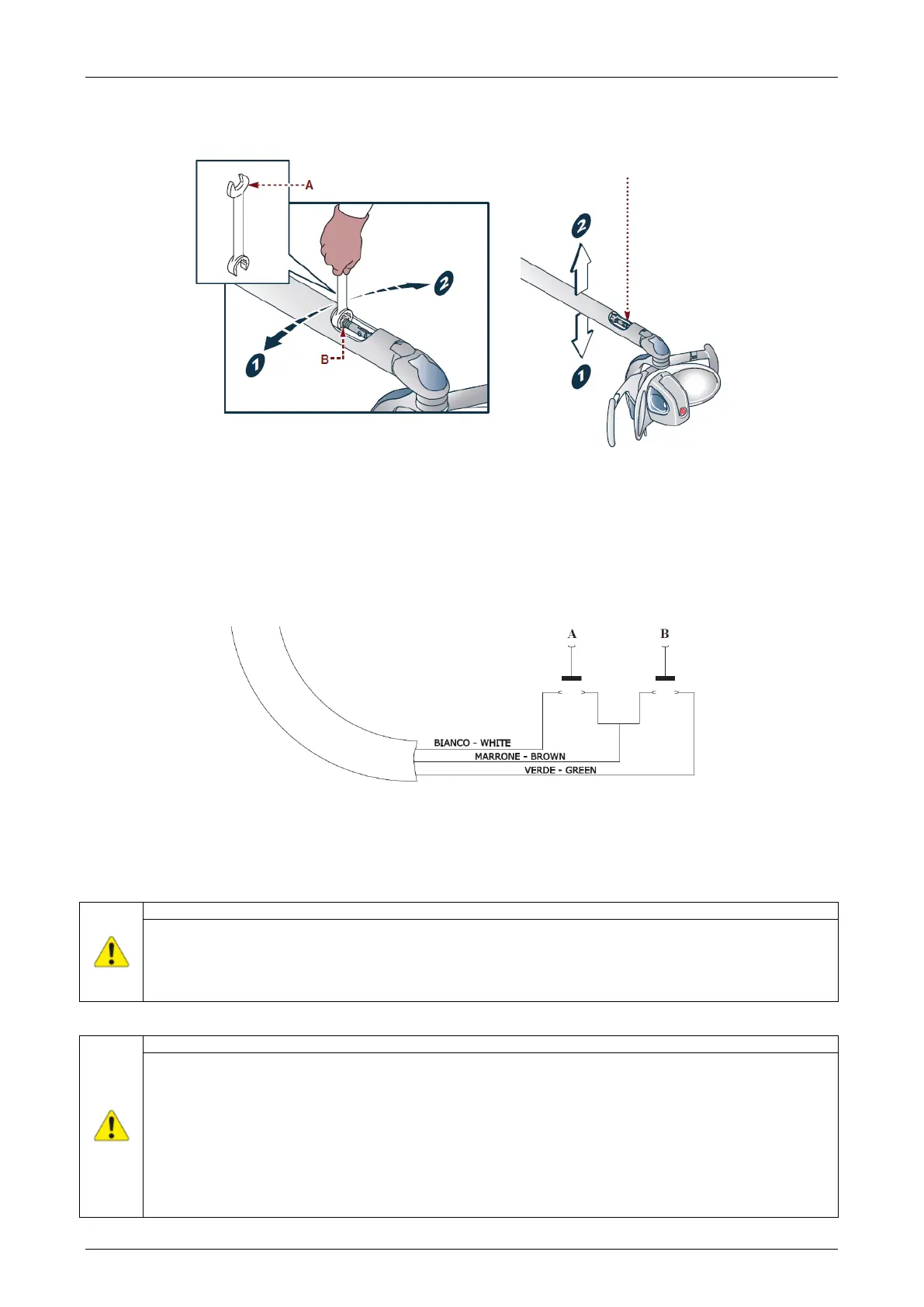

If necessary, adjust the force on the spring by screwing or unscrewing the nut (B) with the suitable tool until
the arm is balanced.
Check switch on and adjustment and (if present) the Auto-on command and the remote cable.
3.2.4 Remote cable connection
Remote cable length 4 m
Maximum range from arm on the side of the pin: 2,5 m.
The remote cable must not be lengthened during installation. Any operation done on the remote cable could
affect “EMC” performance.
Connect the cable to two buttons (A and B) with normally open contact (not supplied) according to the
following diagram.
3.2.5 Complete dental light connection to the ceiling, wall or floor (permanent installation)
For the installation of such application please make reference to the dedicated sections of this manual.
Connect the power supply cable according to the specifications outlined in Tab. 1.
The applications are not supplied with the light
Warnings for electrical danger and suspended masses
- The device has to be installed by specialized technicians only
- The light has to be installed with FARO applications only.
- The light is supplied with rotation limit switch between the fix and the mobile arm.
- The switch limit must not be passed over or forced.
3.2.6 Ceiling mounting with Faro applications
Warnings for electrical danger and suspended masses
The device must be installed by specialized tecnicians
The power supply in the room where the fitting must be installed must be always switched off.
Before starting the installation take care that the ceiling is suitable to bear the load of the
application and dental light.
The anchor bolts provided with the application must be used only with the following base
materials: concrete, natural stone.
Maximum load applicable: 70 kg
See §3.2.1 for the electrical requirements of the power supply.
Stricly comply with the minimum heights shown below.
