Faro ALYA - WALL MOUNTING; WARNINGS FOR ELECTRICAL DANGER AND FALL OF SUSPENDED MASSES

ALYA INSTALLATION AND USER’S MANUAL - EN
Edition 2.0 Sept 2018 Pag. 16 di 32

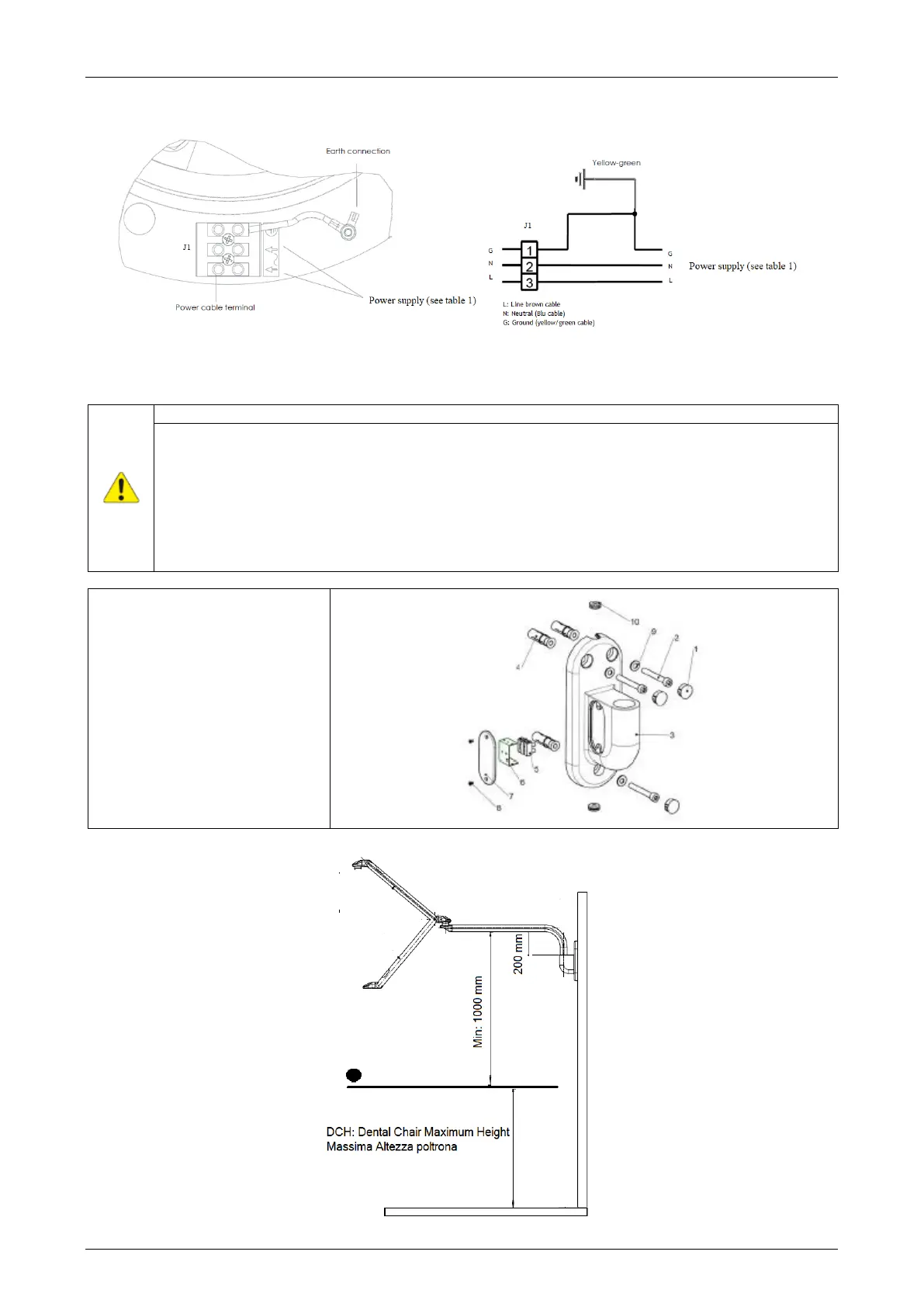

3.2.6.3 Electrical drawing – ceiling mounting without transformer
3.2.7 Wall mounting
Warnings for electrical danger and fall of suspended masses
The device must be installed by specialized tecnicians
The power supply in the room where the fitting must be installed must be always switched off.
Before starting the installation take care that the ceiling is suitable to bear the load of the
application and dental light.
The anchor bolts provided with the application must be used only with the following base
materials: concrete, natural stone.
Maximum load applicable: 70 kg
See §3.2.1 for the electrical requirements of the power supply.
Stricly comply with the minimum heights shown below.
1. Cap
2. Screw
3. Wall application
4. Wall plugs
5. Electrical connector
6. Connector cover
7. Carter
8. Screws
9. Washer
10. Cable fairlead
