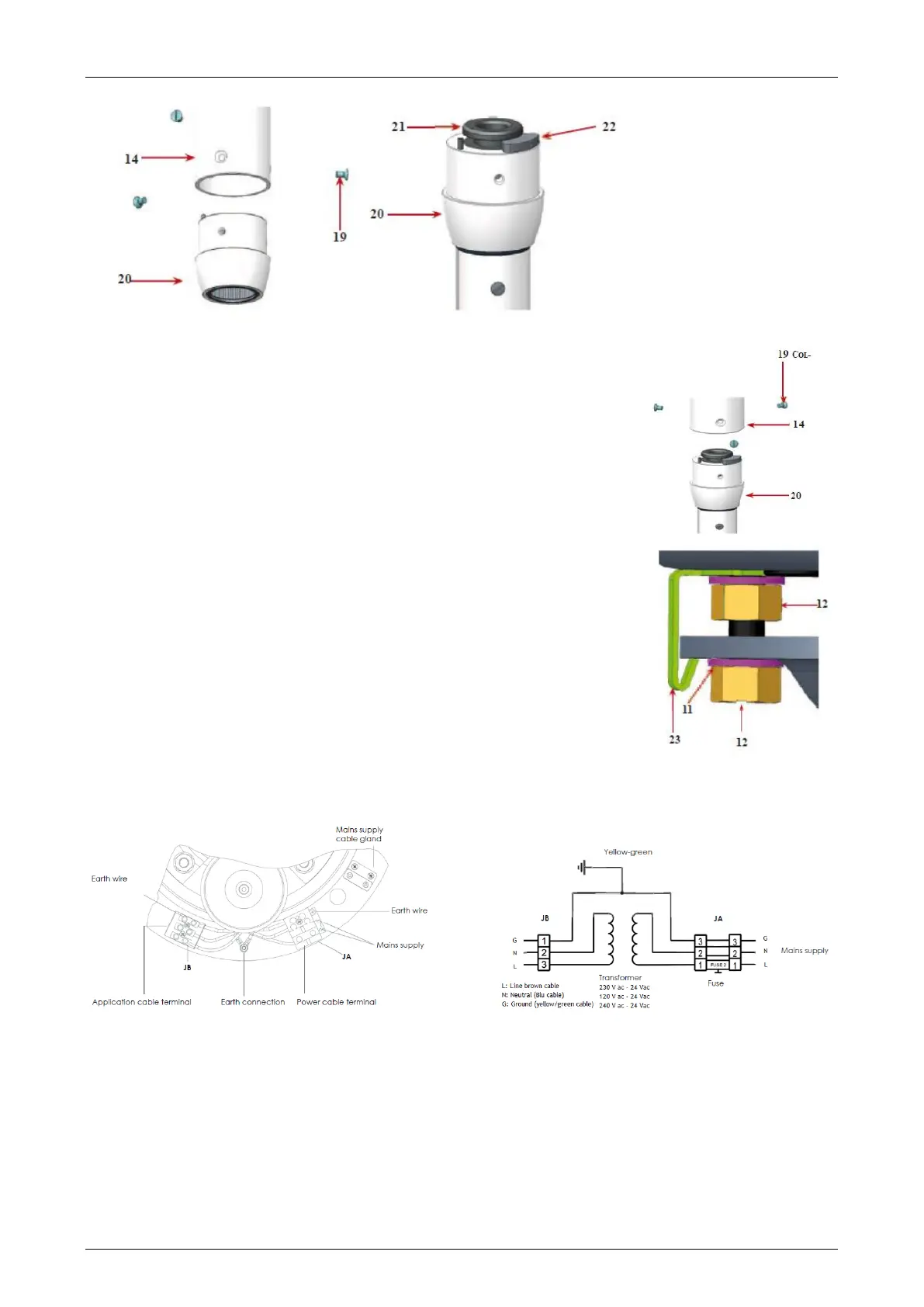

R. Slip - from the top - inside the column (14) a traction cord.
S. Connect the lamp conductor to the traction cord.
T. Fit the lamp on the column (14) and fix it with the three screws (19); make sure the bores of
the bushing (20) match the screws seat on the column (14) and tighten. Simultaneously pull the
traction cord to push out the conductor of the lamp from the column fixing flange (7) of about
200 mm.
U. Connect the lamp conductor to the terminal board (6) (see electrical diagrams).
V. Check the perpendicularity of the column by acting on the nuts (9).
W. Tighten the nuts (12) and washers (11) to fix the flange (7), making it independent of the
fixing rail (23).
X. Adhere the ceiling light (16) to the ceiling, pushing it against the ring (15).
3.2.6.2 Electrical drawing – ceiling mounting with transformer
