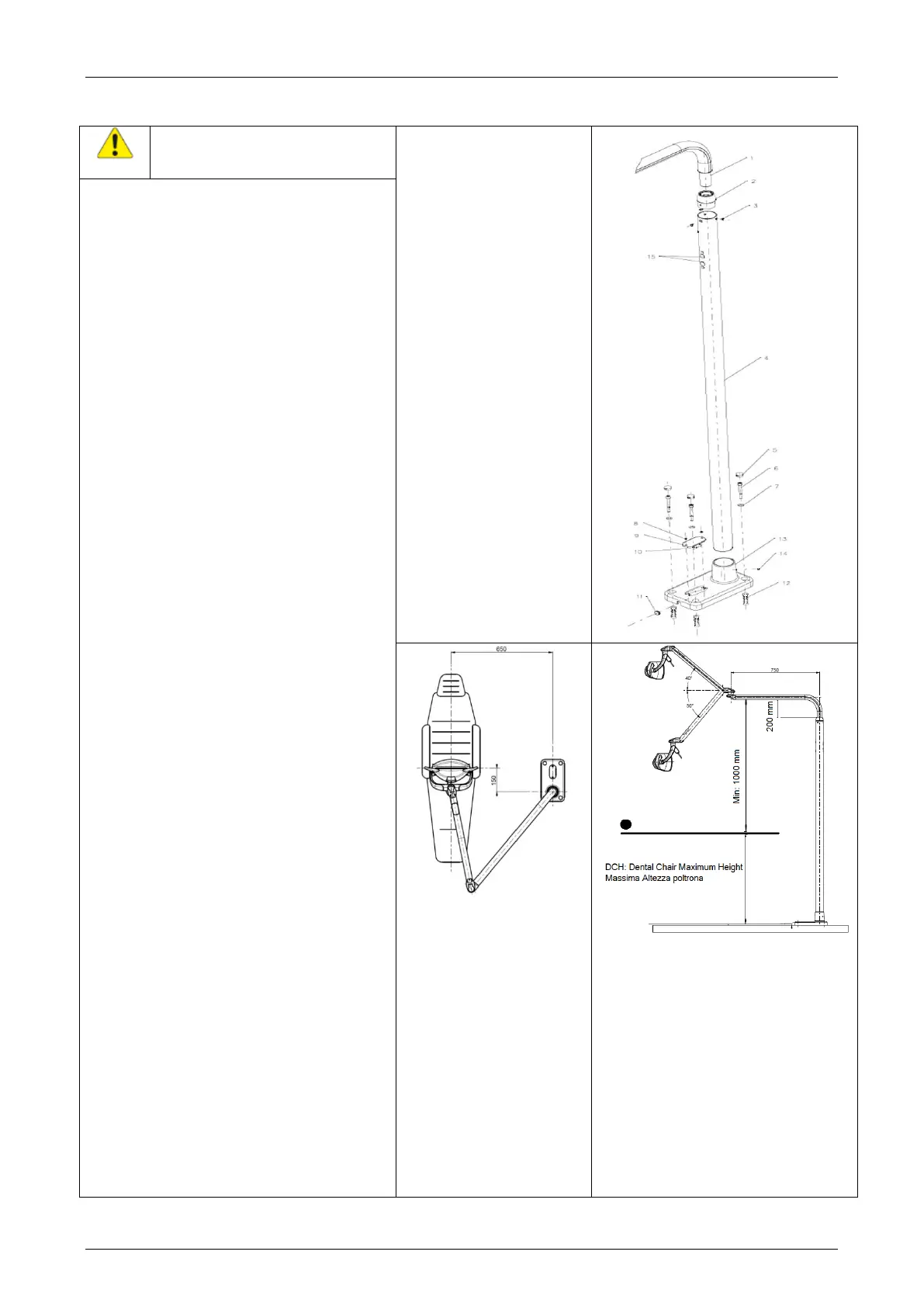

3.2.8 Floor mounting
Warnings for electrical danger
and suspended masses
1. Pin
2. Bush
3. Screw
4. Column
5. Caps
6. Screws
7. Nut
8. Screw
9. Cover
10. Terminal connector
11. Cable Fairlead
12. Wall plugs
13. Wall suport
14. Grani
15. Caps
NB1. The device must be installed by
specialized technicians
NB2. The power supply inside the room
where the installation is carried out must
always be switched off.
NB3. Before proceeding with the assembly
operations it is necessary to make sure
that the floor is able to support the
application. The authorized materials are
concrete and natural stone. The wall plugs
to be used are those supplied or equivalent.
NB4. Maximum applicable load: 70 kg
NB5. Install in rooms with an electrical
system that complies with the national
regulations in force on medical premises
(see §3.2.1 for general description)
NB6. The Dental Lights must be powered
and connected according to requirements
of § 3.2.1.
The resulting medical system must be
declared in accordance with IEC / EN
60601-1 by the installer.
A. Once the fixing point has been
established with reference (a) the center
of the chair, drill four holes diameter
D14 in the floor in correspondence with
the holes in the floor support (13).
B. Prepare the floor support (13) by
passing the washer (7) and the screw
(6);
C. screw the wall plugs (12) onto the
screws (6) for a few turns, pass the
supply wire through the cable fairlead
(11)
- Insert the four wall plugs (12) into the
holes and lock the screws (6) using the
appropriate hexagonal key, taking care
not to damage the wire between the
floor support (13) and the floor itself.
D. Apply the four caps plugs (5) to the
holes in the floor support (13).
E. Unscrew the screws (8) and remove the
cover plate (9)
F. Connect the power supply wire to the
terminal connector (10), including the
ground cable.
G. Place the column (4) to the floor support
(13), during the fixing, check the
perpendicularity
of the column.
H. Place the bush (2) to the column (4) with
the three screws (3), taking care to
orient the holes in the bush (2) in
correspondence with the screw housings
on the column (4).
Connect the lamp lead to the terminal
connectors (10) including the ground
cable
I. Fix the cover plate (9) to the floor
support (13) with the two screws (8).
