ALYA INSTALLATION AND USER’S MANUAL - EN
Edition 2.0 Sept 2018 Pag. 13 di 32
3.2.6.1 Installation procedure

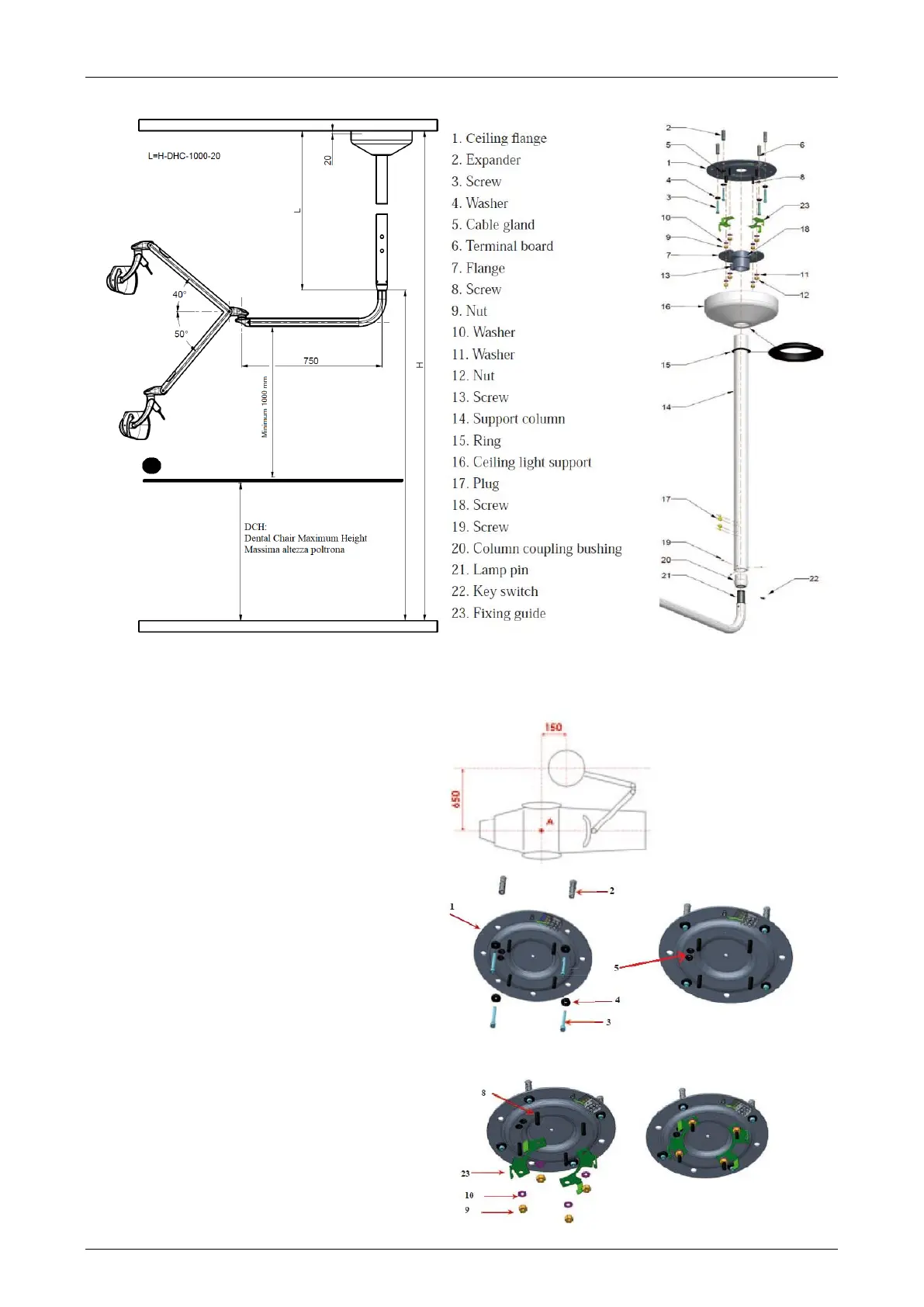

A After having fixed as reference point the chair centre
(A). install at a distance of 650mm and 150mm, according
to the directions given in the figure.
B. Unfit the flange (7) by removing the nuts (12) and
washers (11).
C. By using as guide the flange (1), carry out on the
ceiling 4 bores with Ø14 drill. Fit the expanders (2) in
these bores.
D. Take the flange (1). Pass the power cable through the
cable gland (5), then push the flange (1) against the ceiling;
do not choke the cable between the flange (1) and the
ceiling. Pass the screws (3) and washers (4) through the 4
bores used as reference in drilling the ceiling. Lock with
the special wrench (installation accessory) the screws (3)
E. Connect the power cable to the terminal board (6) (see electrical diagrams)
F. Match the 2 fixing guides (23) to the screws (8) and fix
then by means of the nuts (9) and washers (10)
